Shaft Diameter: 14mm

  • 12N.m, 6A, Nema 34 stepper motor CS-M234120 – 158mm long

    12N.m, 6A, Nema 34 stepper motor CS-M234120 – 158mm long

    2 phase, NEMA 34 frame size 158 mm (6.22 inch) long 6 A phase current 12 N.m (1700 oz-in) holding torque 14 mm (0.551 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

  • 200W AC servo motor – ELM2H-0200LA60F LeadShine

    200W AC servo motor – ELM2H-0200LA60F LeadShine

    The 200W AC servo motor are designed by Leadshine. The servo motors use permanent magnet rotors which provide features of high torque density, high peak torques, low noise, low temperature rising and lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm. Rated voltage 220VAC, rated power…

  • 4.5N.m, 6A, NEMA 34 – stepper motor CS-M23445 – 109mm long

    4.5N.m, 6A, NEMA 34 – stepper motor CS-M23445 – 109mm long

    2 phase, NEMA 34 frame size 109 mm (4.29 inch) long 6 A phase current 4.5 N.m (638 oz-in) holding torque 14 mm (0.551 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration 2D drawing download: here 3D Step file download: here

  • 400W AC servo motor – ELM2H-0400LA60E (has brake)

    400W AC servo motor – ELM2H-0400LA60E (has brake)

    The servo motors use permanent magnet rotors which provide features such as; high torque density, high peak torque, low noise, low temperature rising and lower current consumption. This AC servo motor is power rated at 400W, with a power range from 50W to 1000W, frame size range from 40mm to 80mm. The AC servo motors…

  • 400w integrated servo motor – iSV2-RS6040V48H – LeadShine

    400w integrated servo motor – iSV2-RS6040V48H – LeadShine

    We have implemented about 80 of these servo motors in the last few years,  they are a great, easy to use, reliable servo with so many features! This Leadshine iSV2-RS6040V48H is a 60mm integrated servo motor. At a very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable…

  • 6.0A NEMA 34 stepper motor – 86CM80-0-I14

    6.0A NEMA 34 stepper motor – 86CM80-0-I14

    Built with premium quality materials including bearings and shaft. The 86CM80-0-I14 NEMA 34 can move the attached load at high precision with very low motor heating and vibration. 2 phase, NEMA 34 frame size 98 mm (3.86 inch) long 6 A phase current 8 N.m (1133 oz-in) holding torque 14 mm (0.55 inch) shaft size…

  • 8.5 N.m, 6A closed loop stepper motor CS-M23485, 147mm long

    8.5 N.m, 6A closed loop stepper motor CS-M23485, 147mm long

    2 phase, NEMA 34 frame size 147 mm (5.79 inch) long 6 A phase current 8.5 N.m (1204 oz-in) holding torque 14 mm (0.551 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

  • 86CM120-FS NEMA 34, IP65 stepper motor 164mm, 12 N.m, Leadshine

    86CM120-FS NEMA 34, IP65 stepper motor 164mm, 12 N.m, Leadshine

    2 phase, NEMA 34 frame size 129 mm (5.08 inch) long 6 A phase current 12 N.m (1700 oz-in) holding torque 14 mm (0.551 inch) shaft size Built with high quality materials including bearings and shaft made by Japanese manufacturers High precision, low motor heating, and low vibration

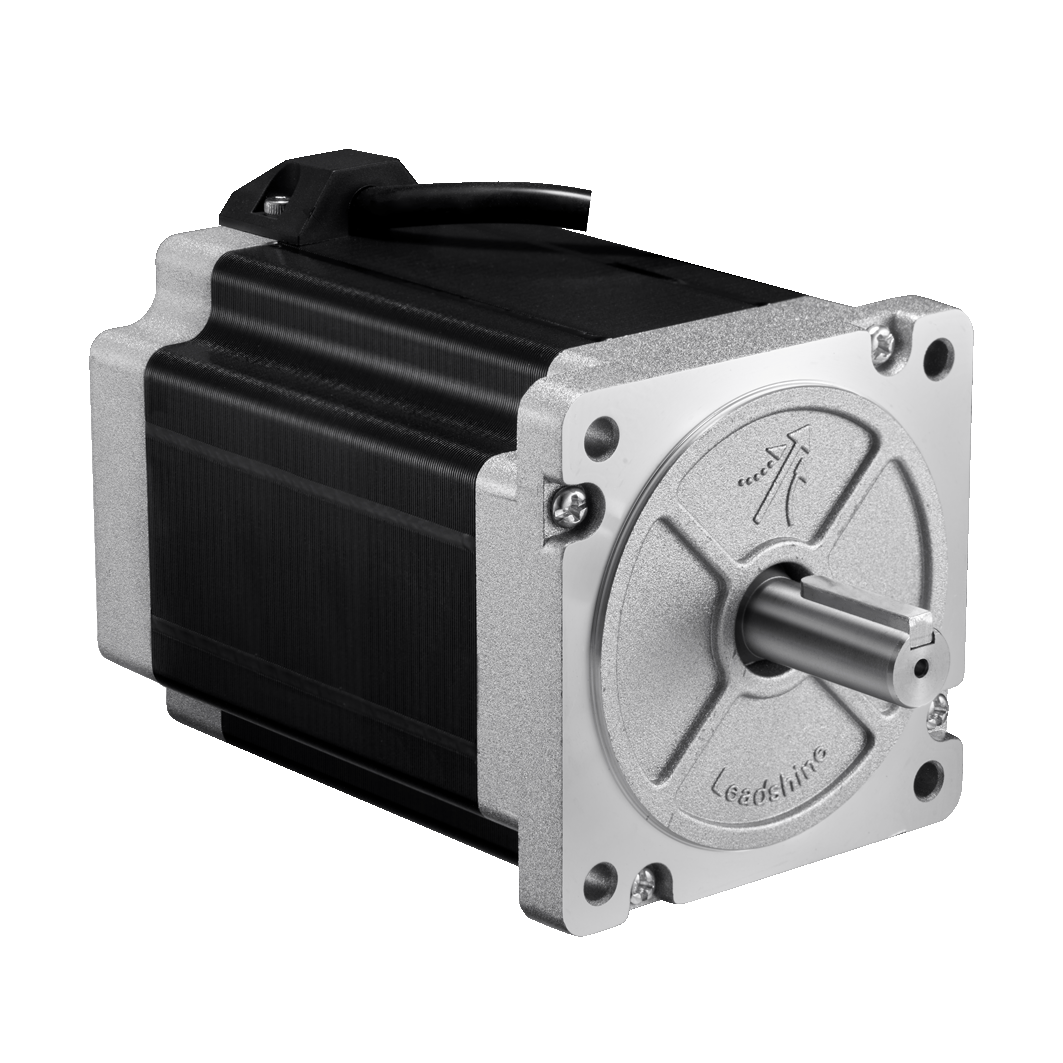

  • 86CM120C NEMA 34, CM series stepper motors 129mm, 12 N.m, LeadShine

    86CM120C NEMA 34, CM series stepper motors 129mm, 12 N.m, LeadShine

    2 phase, NEMA 34 frame size 129 mm (5.08 inch) long 6 A phase current 12 N.m (1700 oz-in) holding torque 14 mm (0.551 inch) shaft size Built with high quality materials including bearings and shaft made by Japanese manufacturers High precision, low motor heating, and low vibration

  • 8N.m, 6A, Nema 34, stepper motor CS-M23480 – 126mm long,

    8N.m, 6A, Nema 34, stepper motor CS-M23480 – 126mm long,

    CS-M23480 Nema 34 closed loop Stepper motor

  • 400W AC servo motor ELM1H-0400MA60F

    400W AC servo motor ELM1H-0400MA60F

    Rated voltage 220VAC, rated power 400W Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min 23-bit magnetic encoder No brake, direct connector Strong overload capacity IP67

  • 400W AC servo motor ELM2H-0400LA60F

    400W AC servo motor ELM2H-0400LA60F

    Rated voltage 220VAC, rated power 400W Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min 23-bit optical encoder No brake, direct connector Strong overload capacity IP67

  • ELVM6020V48FH-M17-HD – 200W, 48V servo motor

    ELVM6020V48FH-M17-HD – 200W, 48V servo motor

    The servo motors provide features of short length, high torque density, high peak torque, low noise, low temperature rising and IP65 protection. This servo motors is power rated 200W with a range of 50W to 1000W, with 2500-Line incremental encoder or 17-bit absolute encoder.

  • ELVM6040V48FH-M17-HD – 400W, 48V servo motor

    ELVM6040V48FH-M17-HD – 400W, 48V servo motor

    The ELVM series is a new low voltage servo motor series designed by LeadShine with own intellectual property rights. The servo motors provide features of short length, high torque density, high peak torque, low noise, low temperature rising and IP65 protection.  with 2500-Line incremental encoder or 17-bit absolute encoder. Model ELVM6040V48FH-M17-HD Frame Size (mm) 60…

  • ELVM6060V48FH-M17-HD – 600W, 48V servo motor

    ELVM6060V48FH-M17-HD – 600W, 48V servo motor

    ELVM series low voltage servo motors, designed by LeadShine, who have intellectual property rights for this product. These servo motors provide features of compact length, high torque density, high peak torque, low noise and IP65 protection. ELVM series servo motors have power options from 50W to 1000W (This motor is 600W) with 2500-Line incremental encoder…

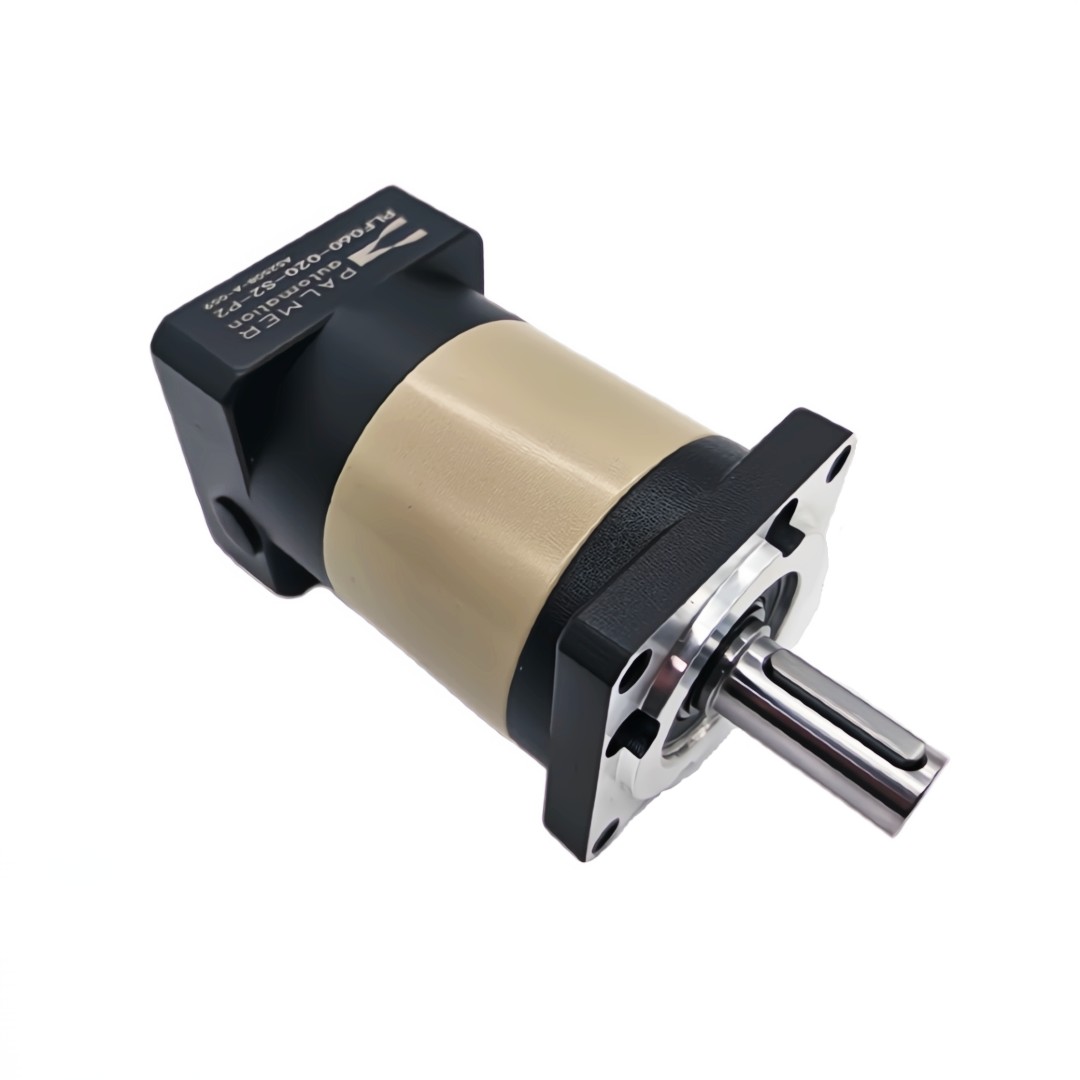

  • PLF060 planetary gearbox 20:1 ratio 60mm frame

    PLF060 planetary gearbox 20:1 ratio 60mm frame

    A high quality planetary gearbox reducer made for 60mm frame size servos. 2D drawing Ratio 20:1 Frame size 60mm Input 14mm keyed output 14mm keyed Transmission Efficiency 94% Service life 20,000 hours Inertia 0.13kgcm2 Weight 1.46 kg Rated input speed 3,000 RPM Max input speed 5,000 RPM Backlash 10 arcmin max Rated Torque 38 N.m…
