Description

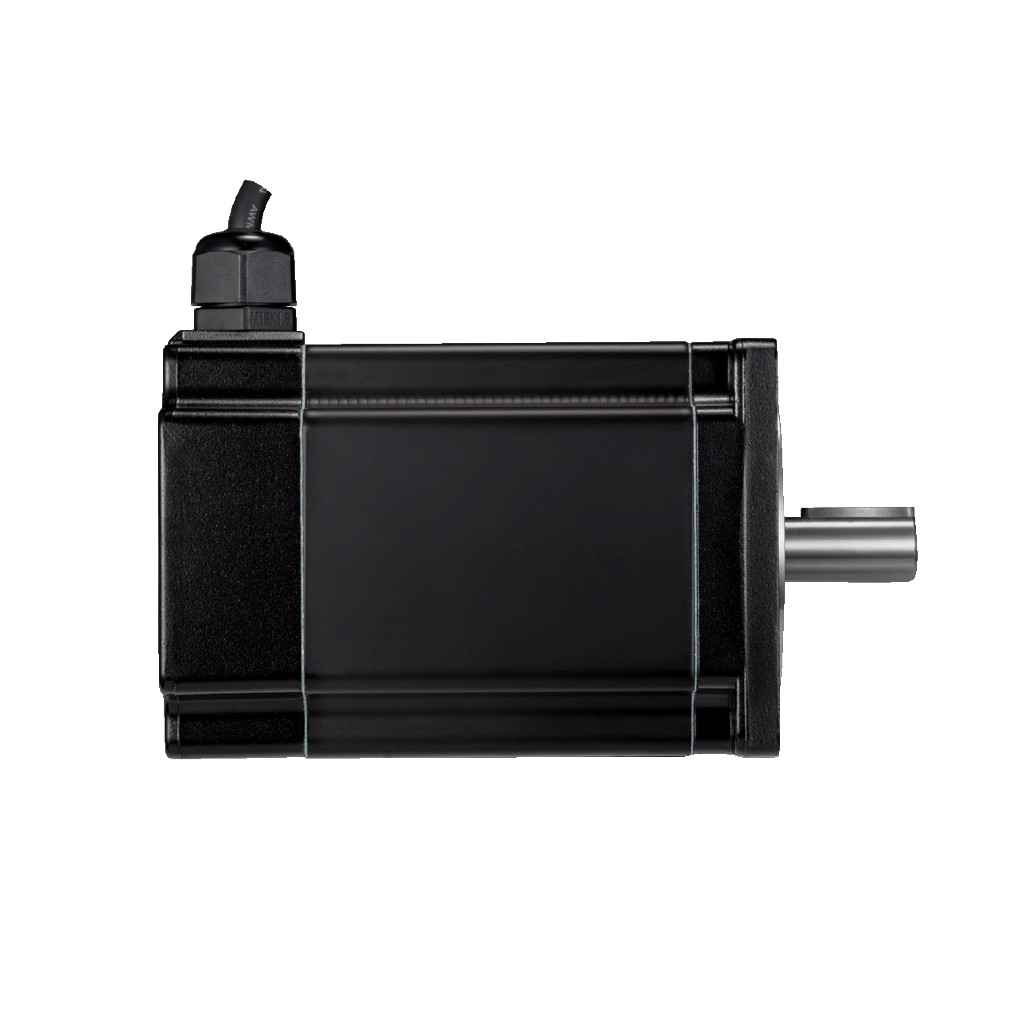

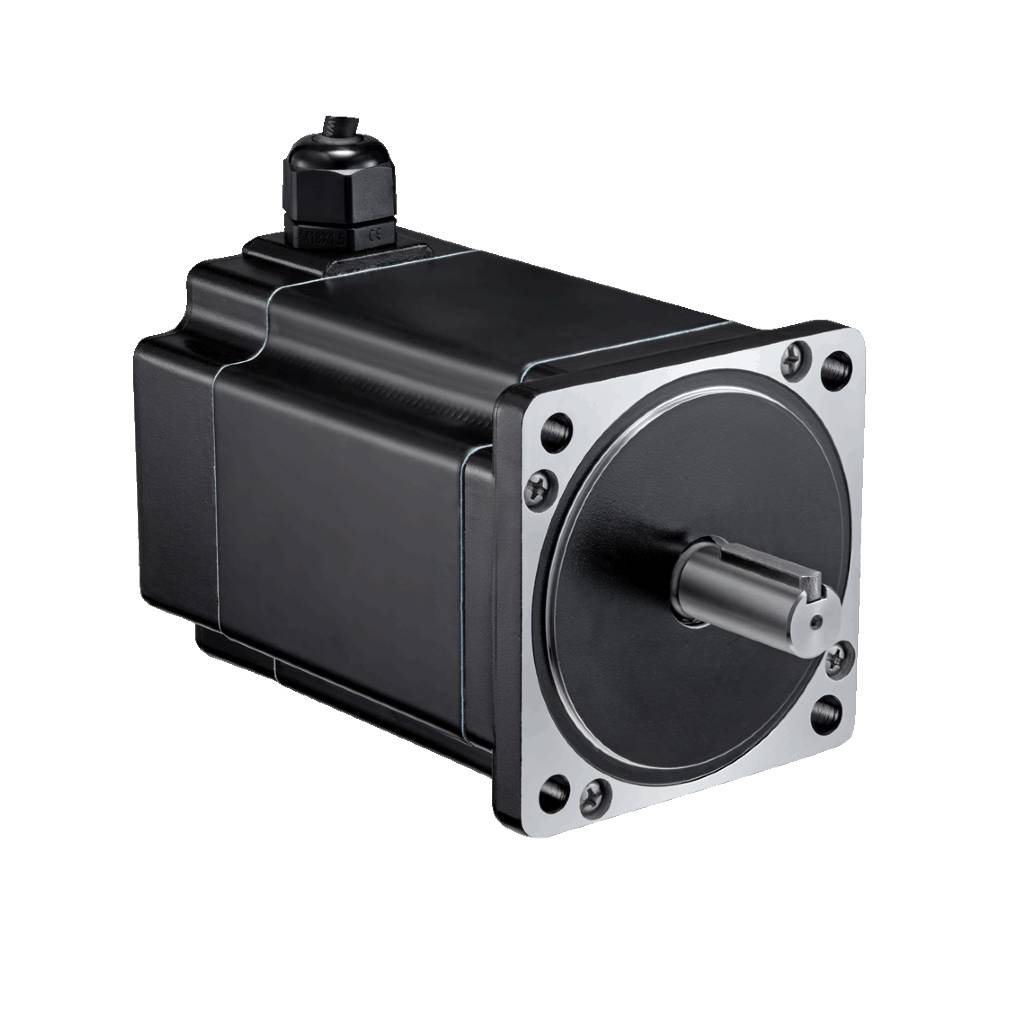

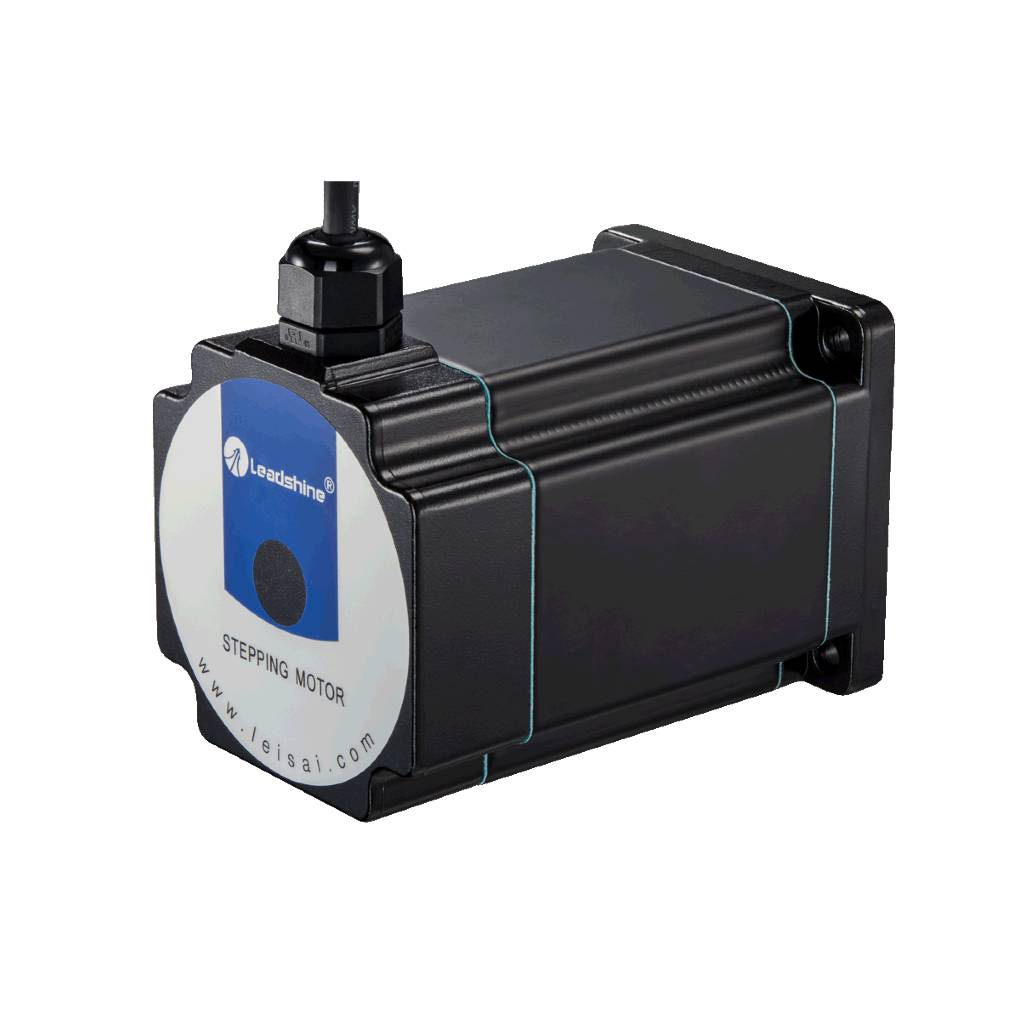

IP65 CM series stepper motors can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by Japanese manufacturers. This CM series stepper motor can move the attached load at high precision and with very low motor heating and vibration.
| Model | 86CM120-FS |
| Frame Size (NEMA) | 34 |
| Length (mm) | 164 |
| Holding Torque (N.m) | 12 |
| Phase Current (A) | 6.0 |
| Shaft Diameter (mm) | 14 |
| Center Diameter (mm) | 73 |
| IP Rate | IP65 |
| Characteristics | Waterproof |
| Resistance (ohm) | 0.8 |
| Inductance (mH) | 6.8 |
| Inertia (kg/cm2) | 5.4 |
| Weight (kg) | 5.0 |

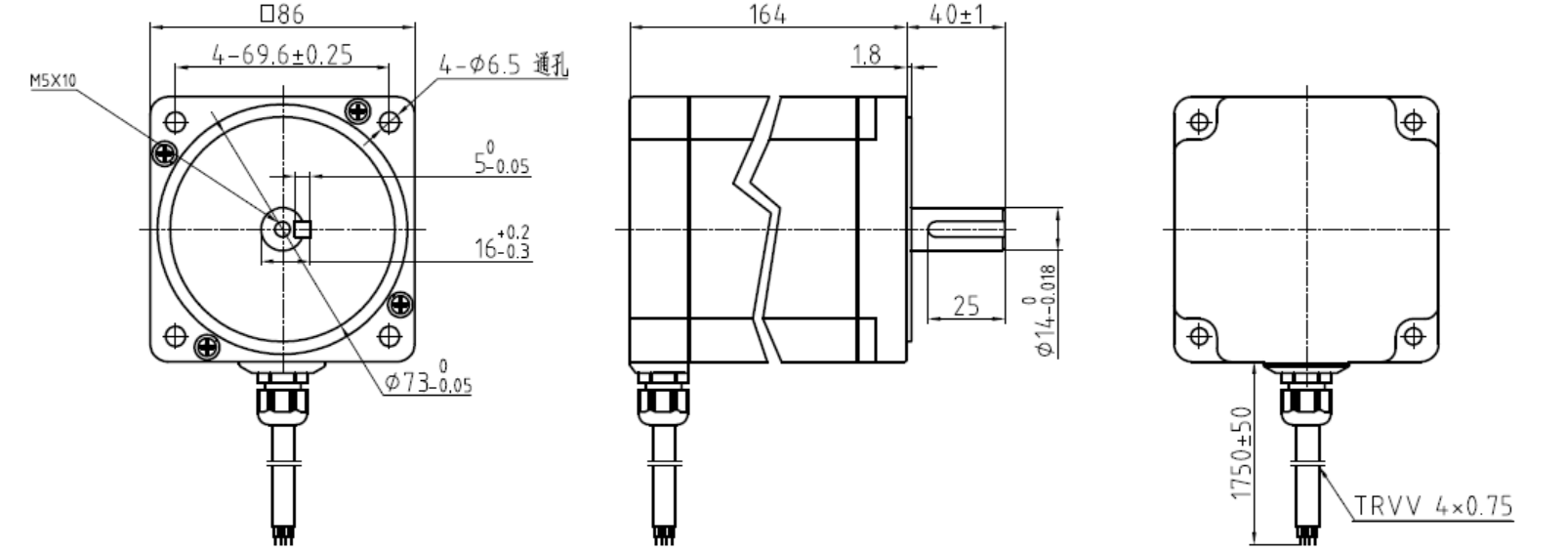

2D Drawing (PDF): 86CM120C 2D Drawing
3D drawing download (LeadShine Website): Click here
