Description

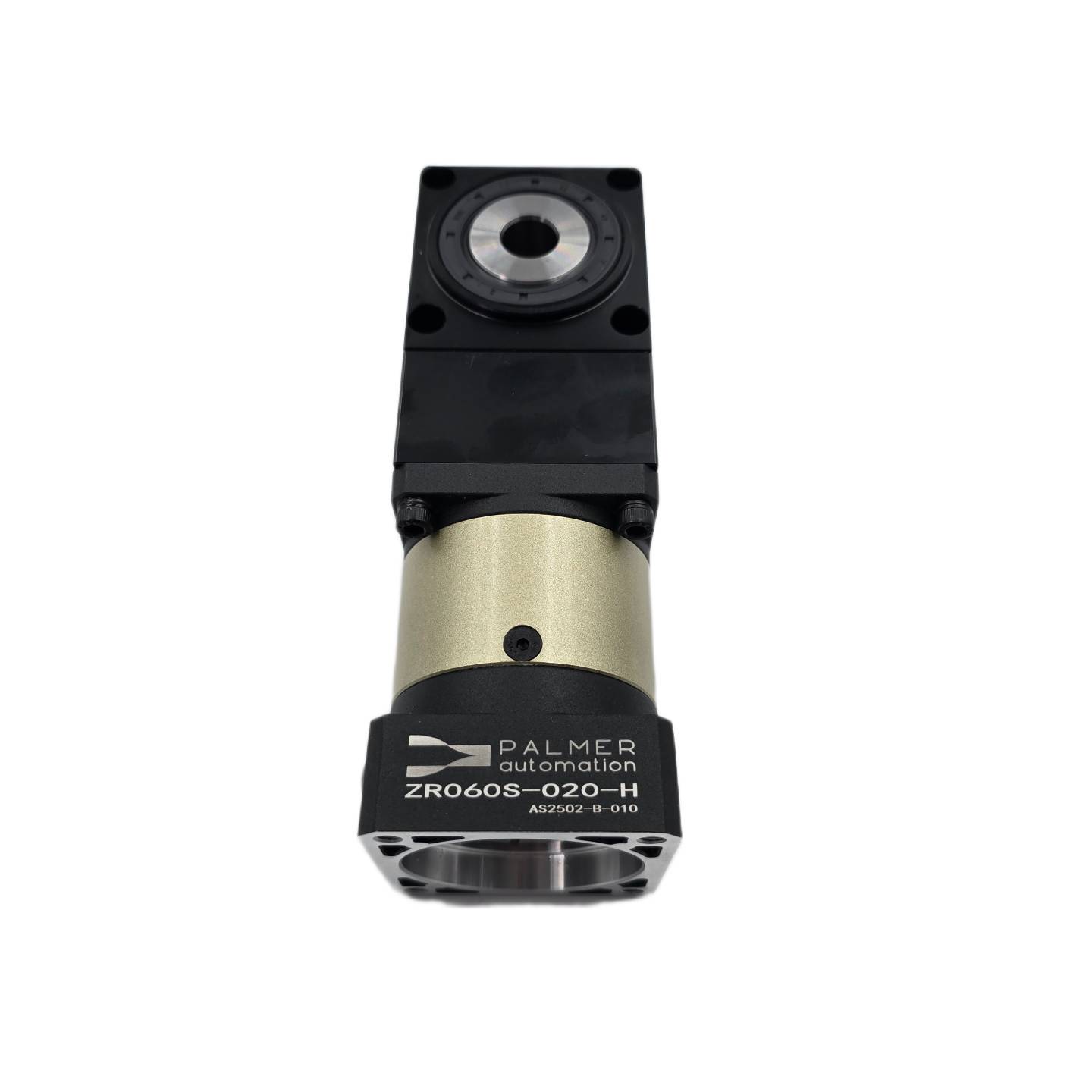

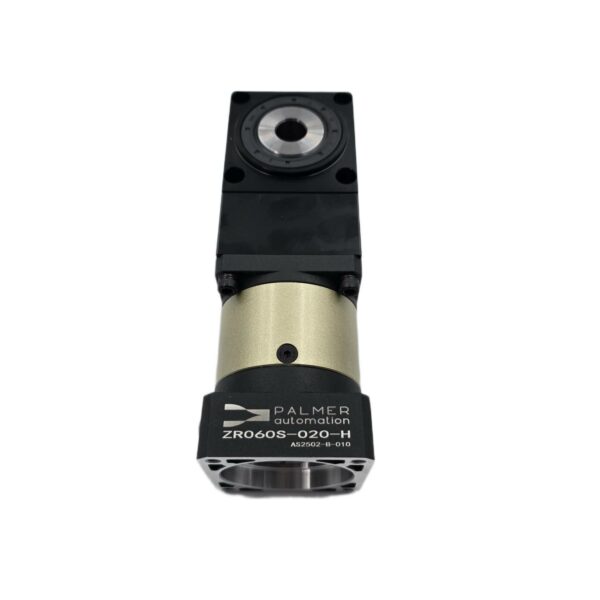

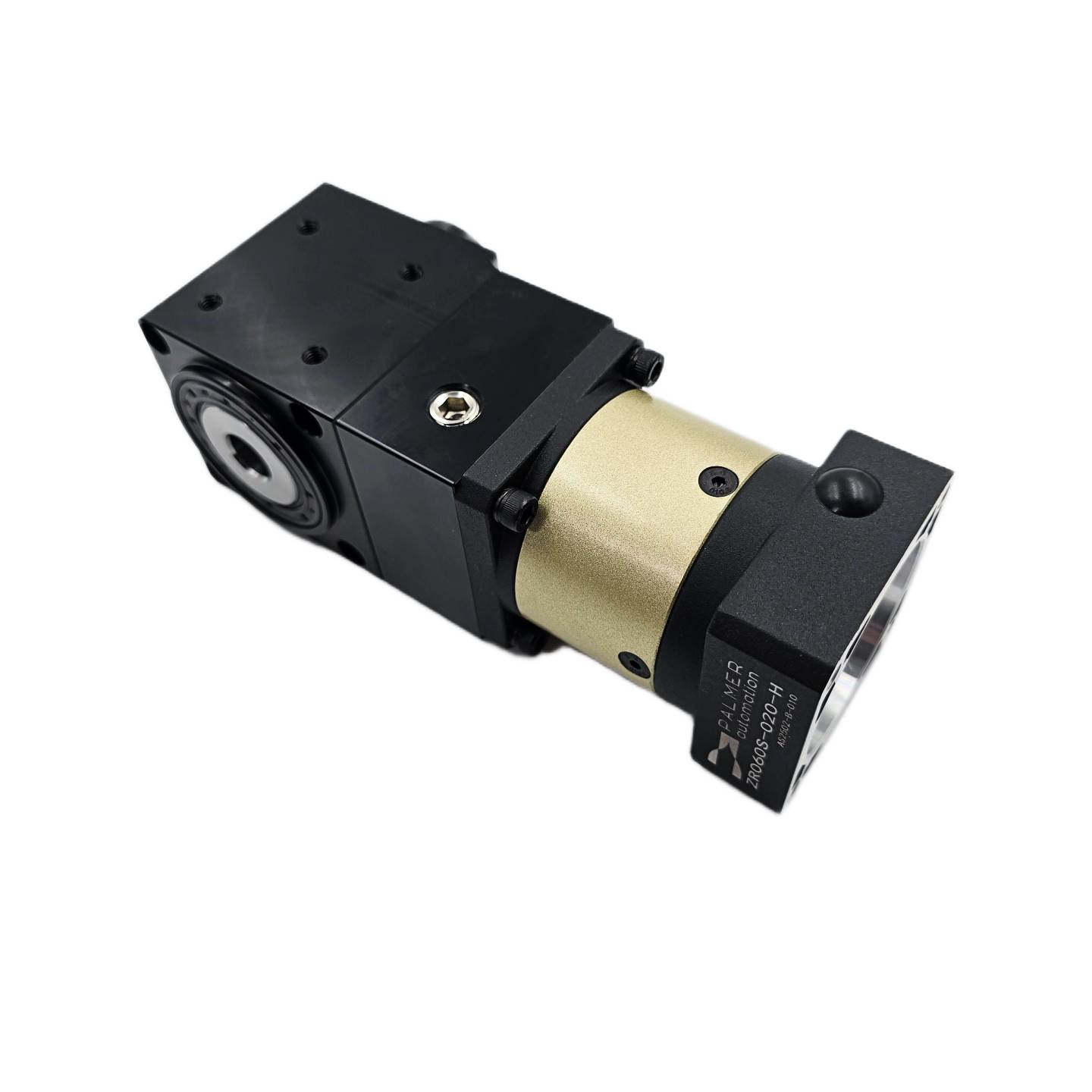

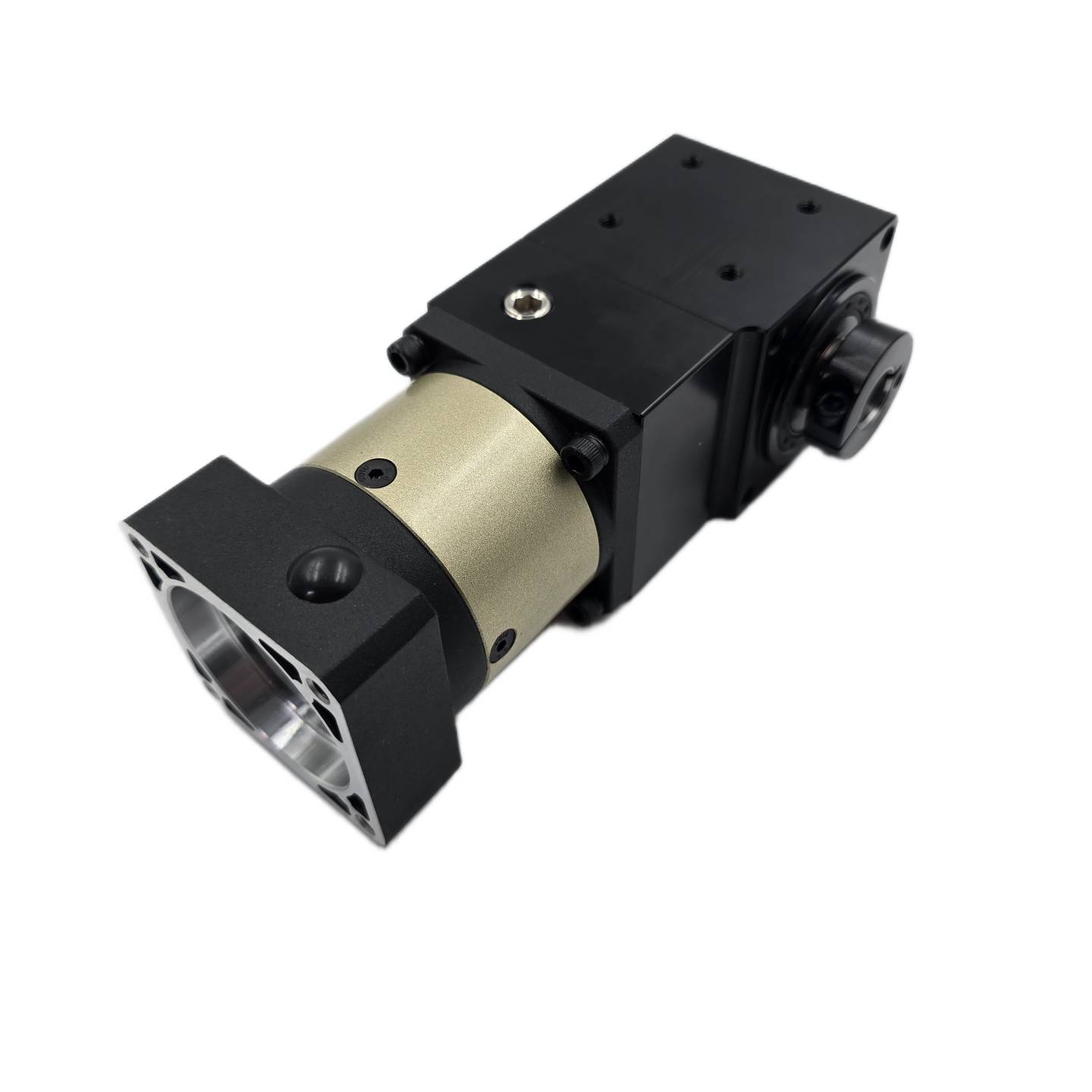

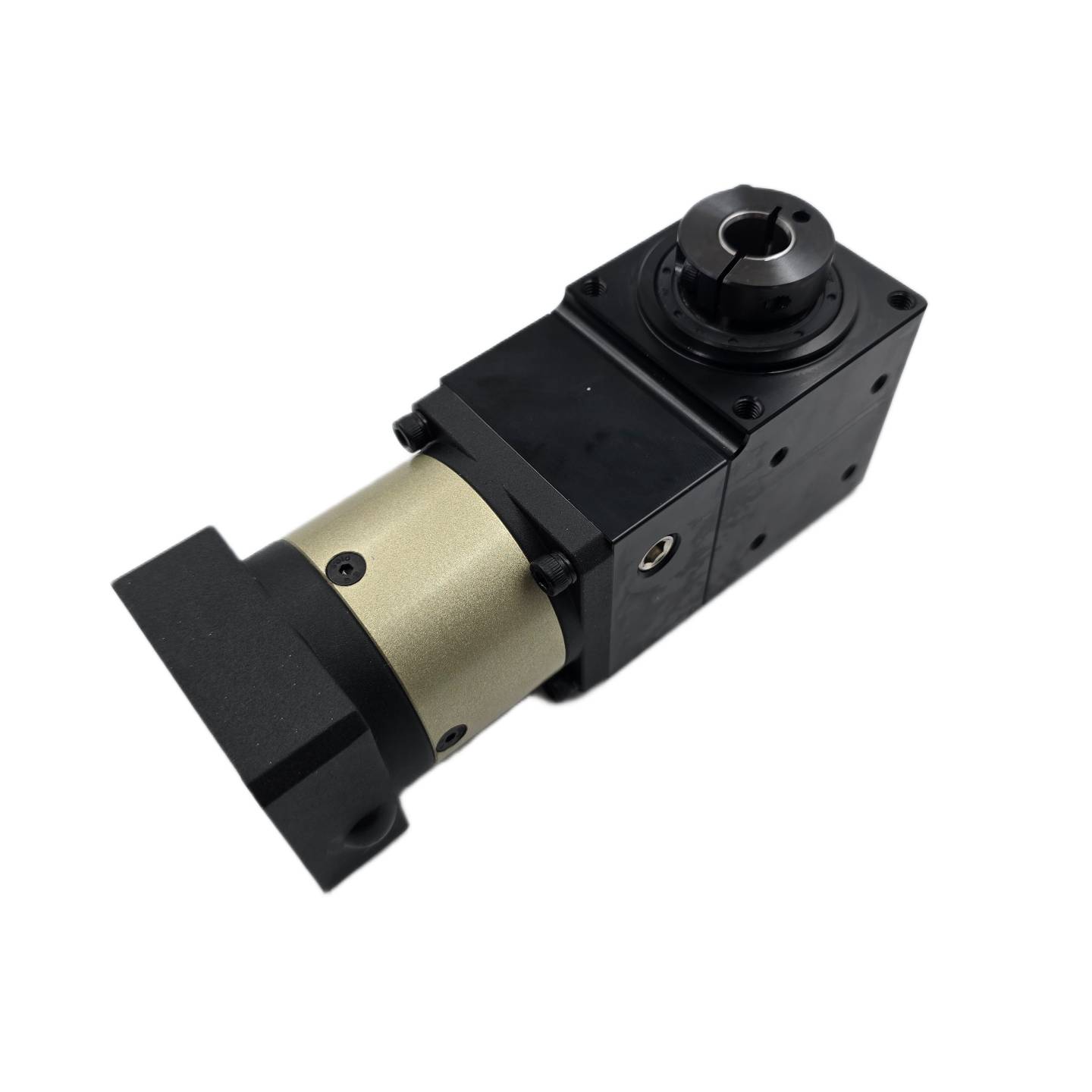

ZR series planetary reducer is widely used within applications requiring high precision and reliability, such as; mechanical manufacturing, automation and transportation.

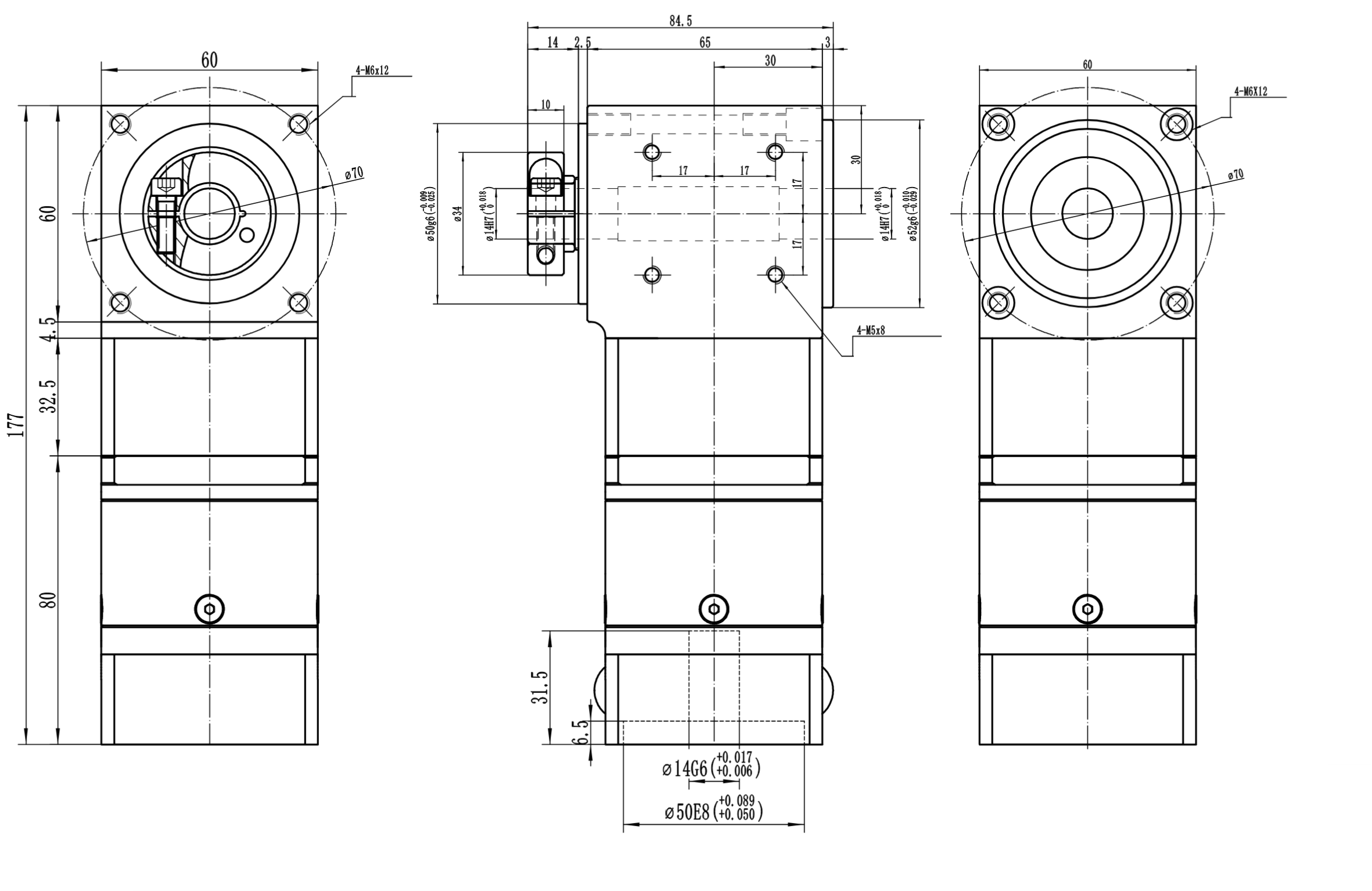

This gearbox is design to fit all our 60mm framed servo motors.
Designed for 14mm servo input shaft,
Designed to fit 14mm output shaft.
Advantages of the ZR series with planetary right-angle reducer:
- keyway precision output hollow shaft with clamp 14mm
- Keyway precision input 14mm
- Compact structure
- High efficiency
- High rigidity
- Ability to withstand high loads
Basic specifications:
- Reduction ratio: 1:20
- Rated output torque: 24 N.m
- Maximum acceleration torque: 2.5 times rated torque
- Rated input speed: 1,500 rpm
- Allowable radial force: 600 Nm
- Allowable axial force: 300 N
- Return clearance: ≤10 arcmin
- Service life: >20,000 h
- Operating temperature: -10°C ~ 80°C
Applications:
- Robotics
- Agri-tech
- Autonomous Vehicles
- Conveyors
- Actuators
- Chain drives
