Description
A high quality planetary gearbox reducer made for 60mm frame size servos like these motors
| Ratio | 10:1 |
| Frame size | 60mm |
| Input | 14mm keyed |
| output | 14mm keyed |
| Transmission Efficiency | 97% |
| Service life | 21,000 hours |
| Inertia | 0.13kgcm2 |
| Weight | 0.99kg |
| Rated input speed | 3,000 RPM |
| Max input speed | 5,000 RPM |
| Backlash | 7arcmin |
| Ratio Dependent Specifications | ||
| Ratio | Ratio Rated Torque | Max Torque |
| 3:1 | 28Nm | 84Nm |
| 4:1 | 38Nm | 114Nm |
| 5:1 | 40Nm | 120Nm |
| 7:1 | 35Nm | 105Nm |
| 10:1 | 25Nm | 75Nm |

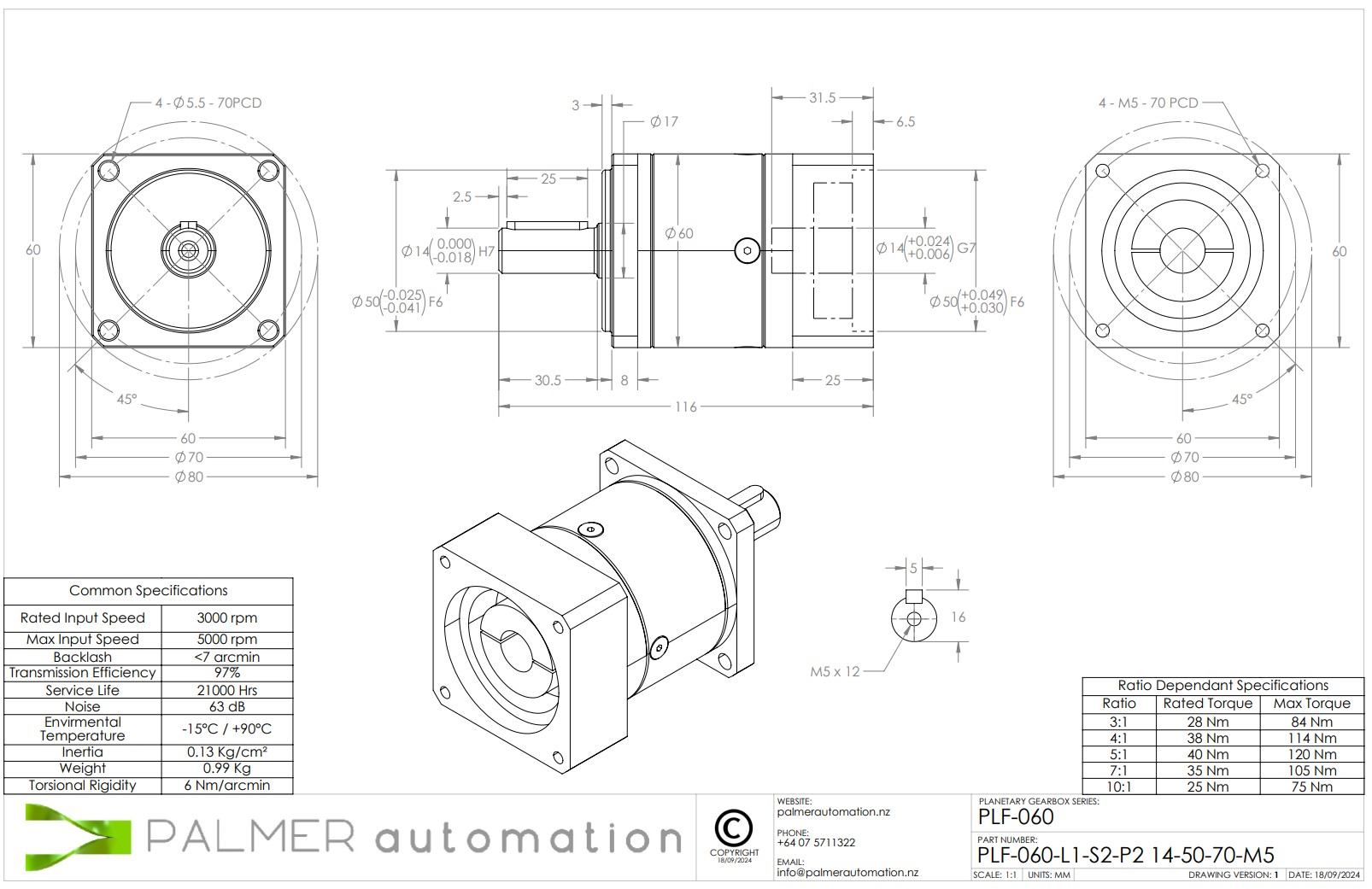

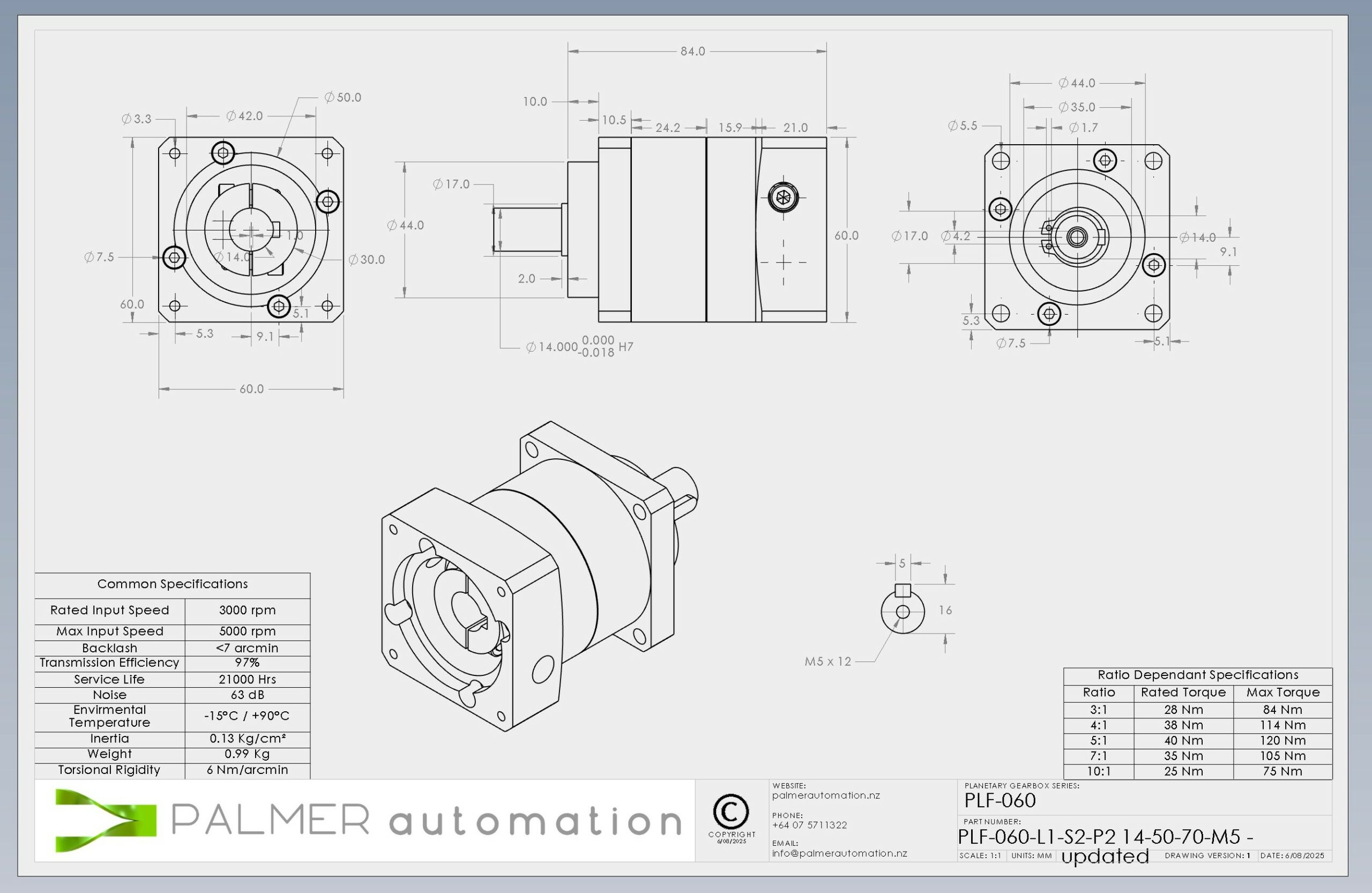

2D drawing PDF: PLF060 series gearboxes
