Description

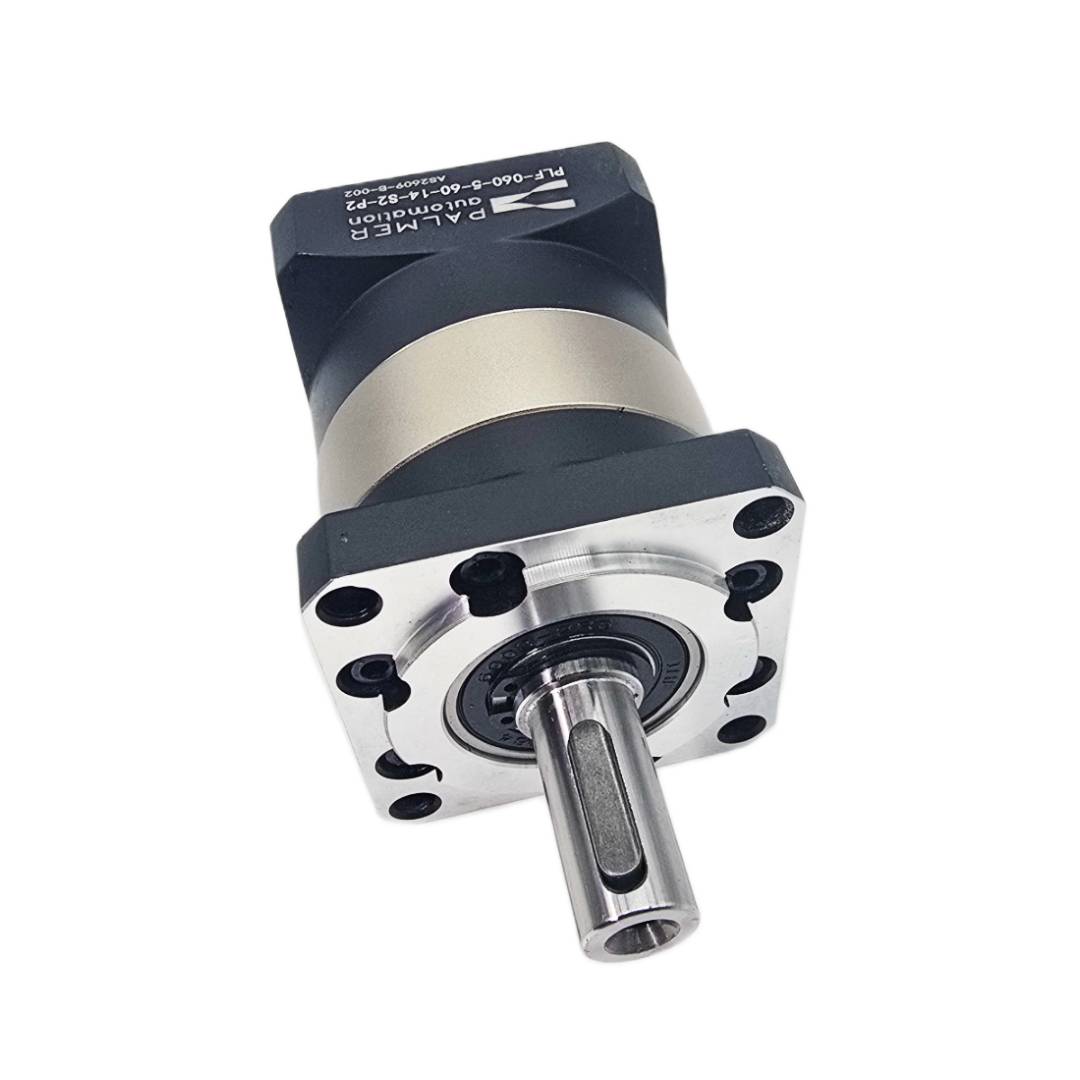

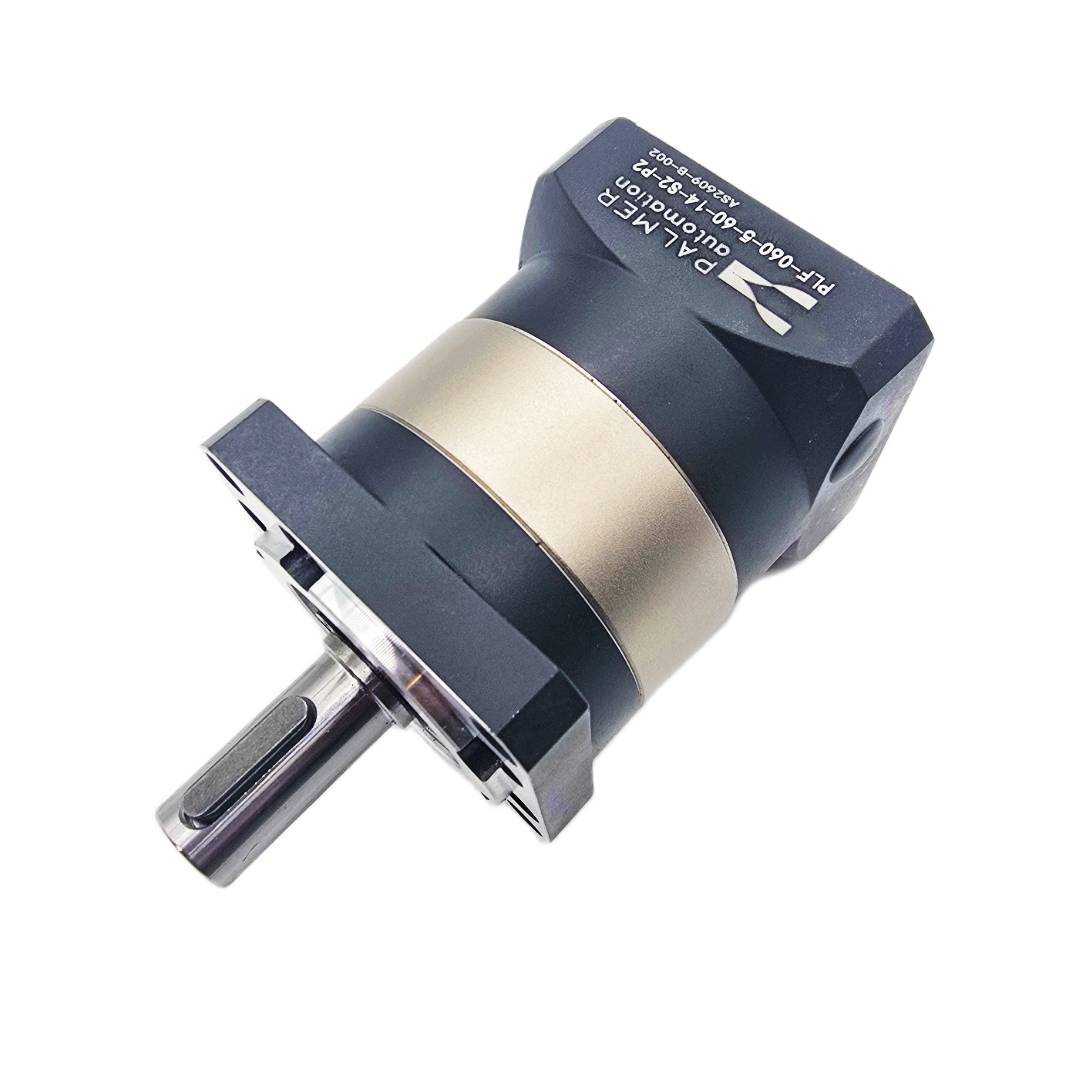

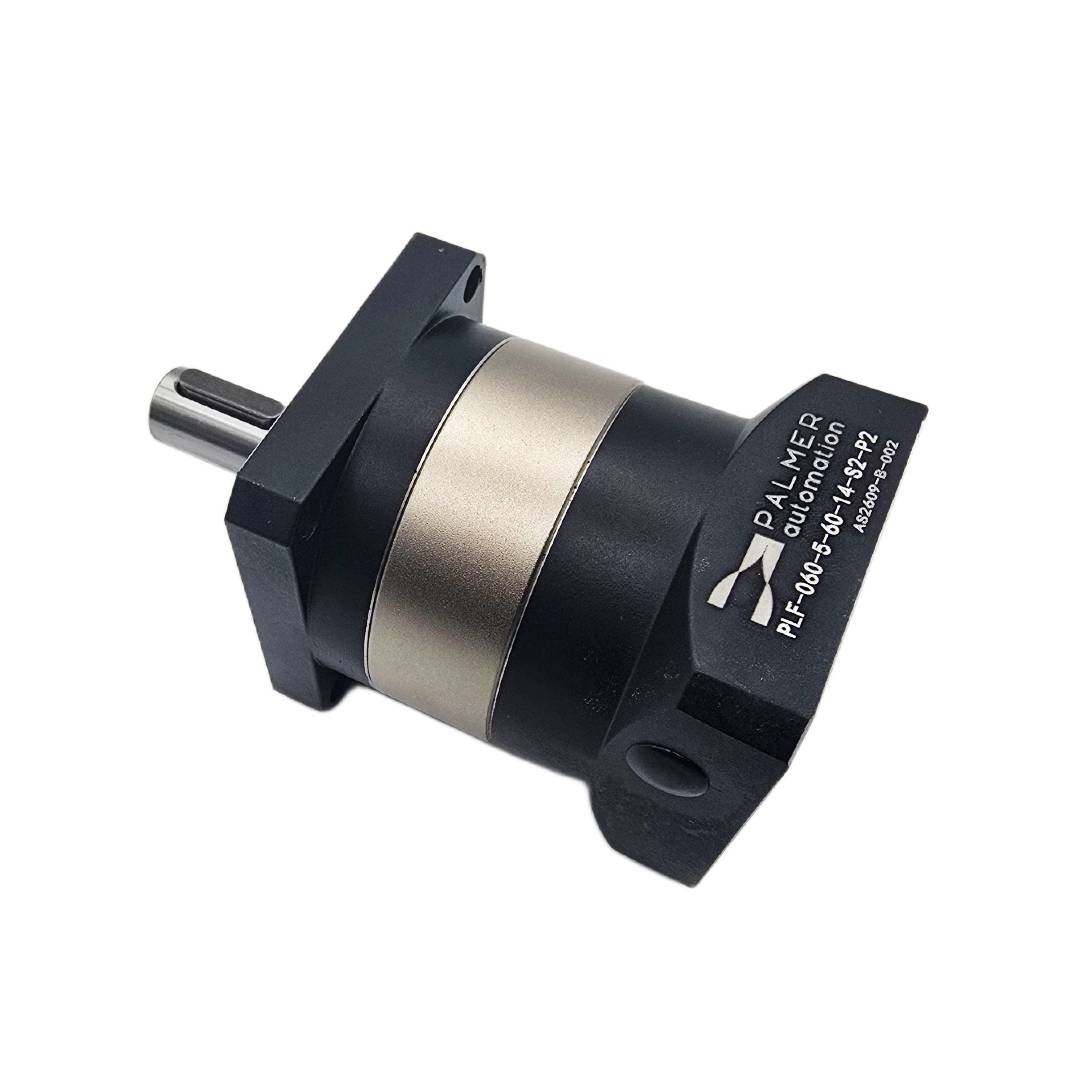

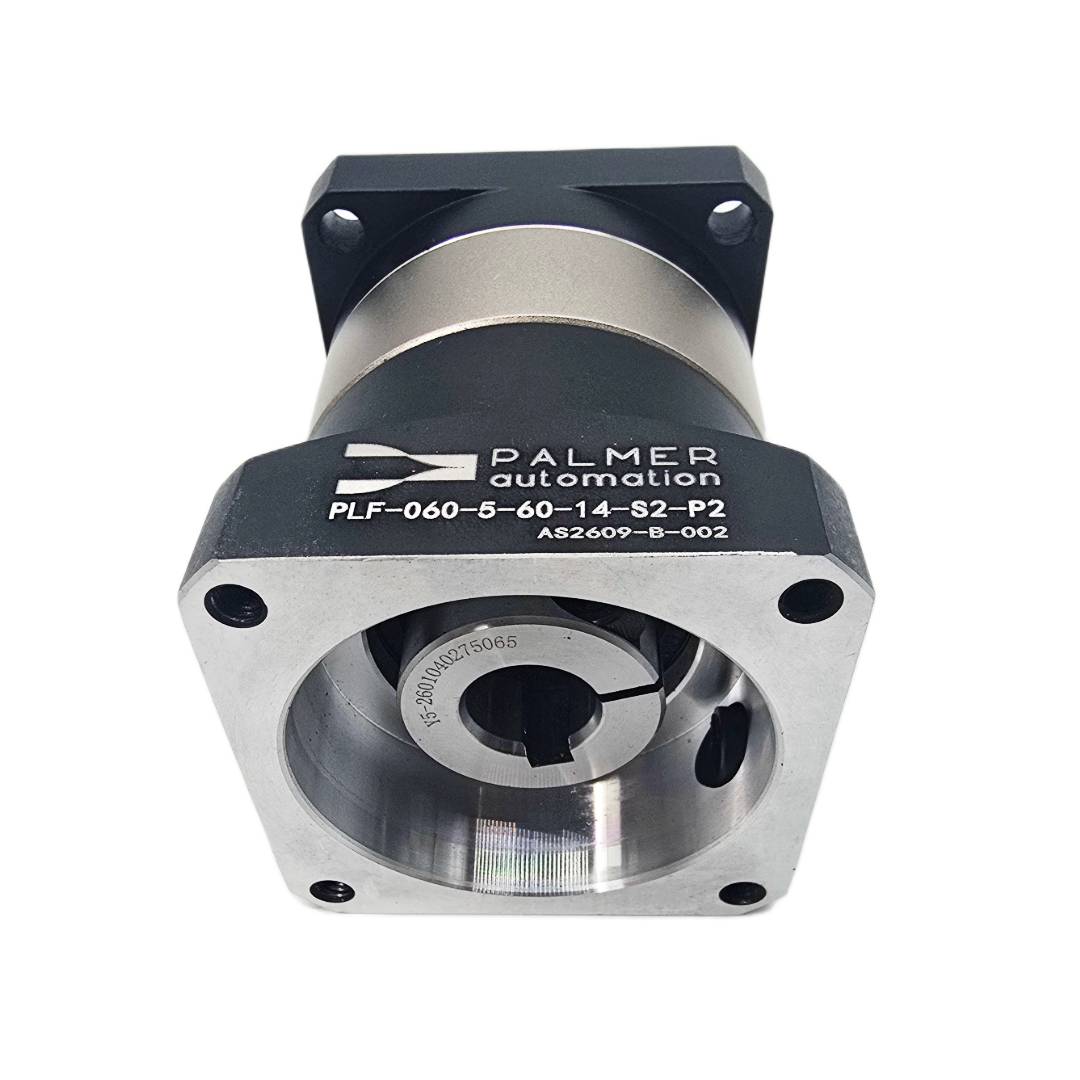

A high quality planetary gearbox reducer made for 60mm frame size servos like these motors
The gearbox mounting dimensions and shaft are the same as the servo, so you can try your application with or without a gearbox without changing anything. (useful sometimes).
| Ratio | Select |
| Frame size | 60mm |
| Input | 14mm keyed |
| output | 14mm keyed |
| Transmission Efficiency | 97% |
| Service life | 21,000 hours |
| Inertia | 0.13kgcm2 |
| Weight | 0.99kg |
| Rated input speed | 3,000 RPM |
| Max input speed | 5,000 RPM |
| Backlash | 7arcmin |
| Ratio Dependent Specifications | ||
| Ratio | Ratio Rated Torque | Max Torque |
| 3:1 | 28Nm | 84Nm |
| 4:1 | 38Nm | 114Nm |
| 5:1 | 40Nm | 120Nm |
| 7:1 | 35Nm | 105Nm |
| 10:1 | 25Nm | 75Nm |

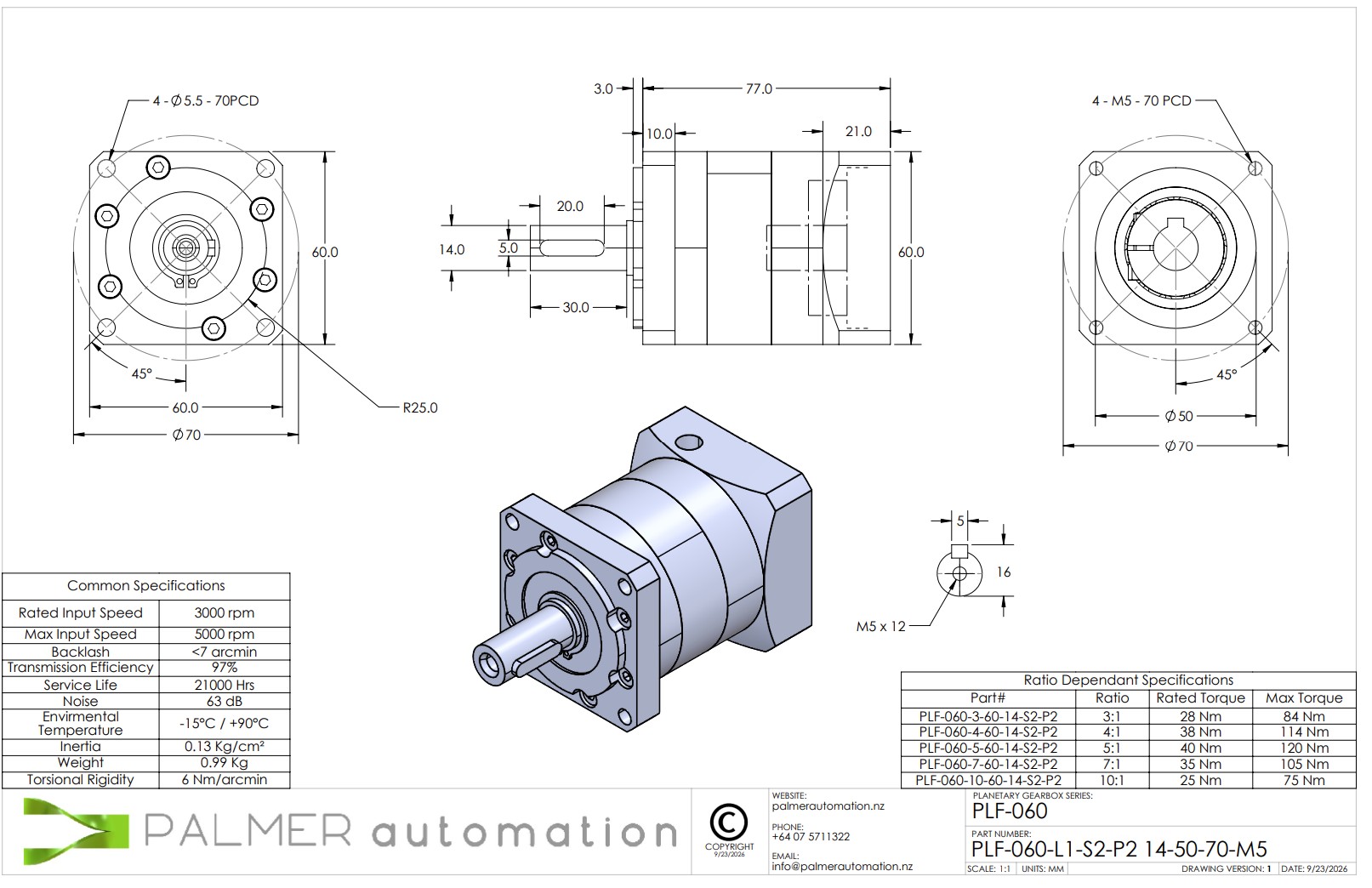

2D drawing PDF: PLF060 series gearboxes
