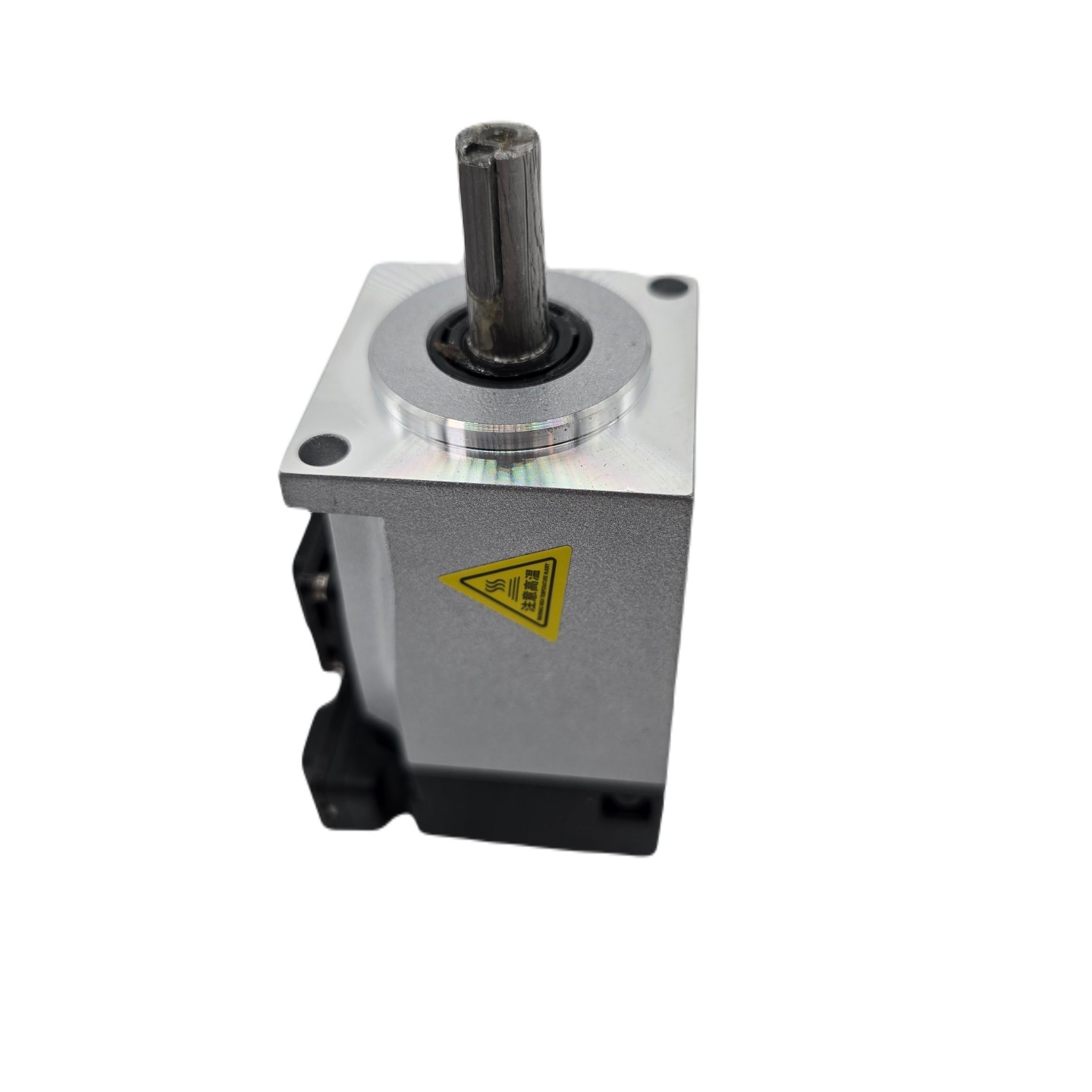

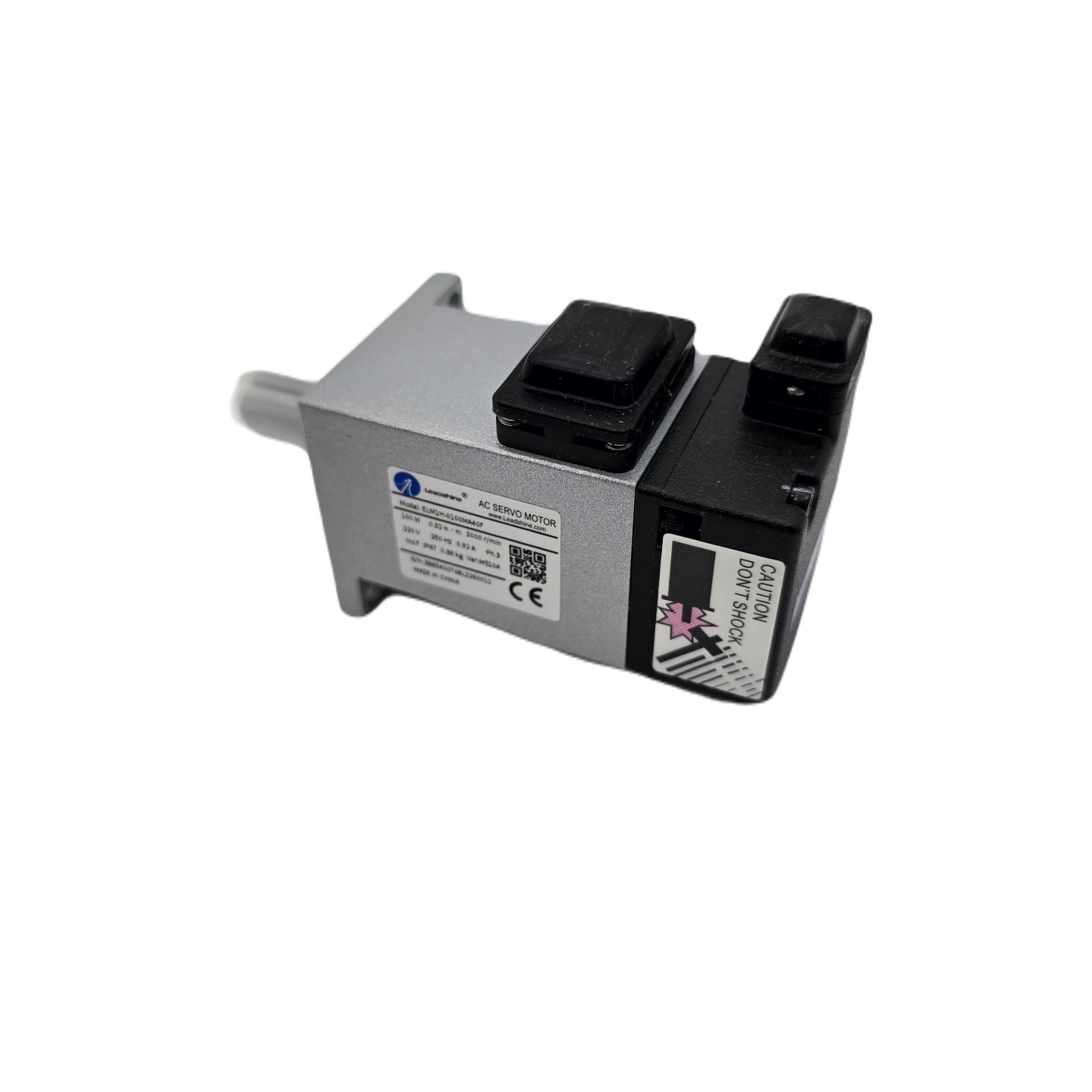

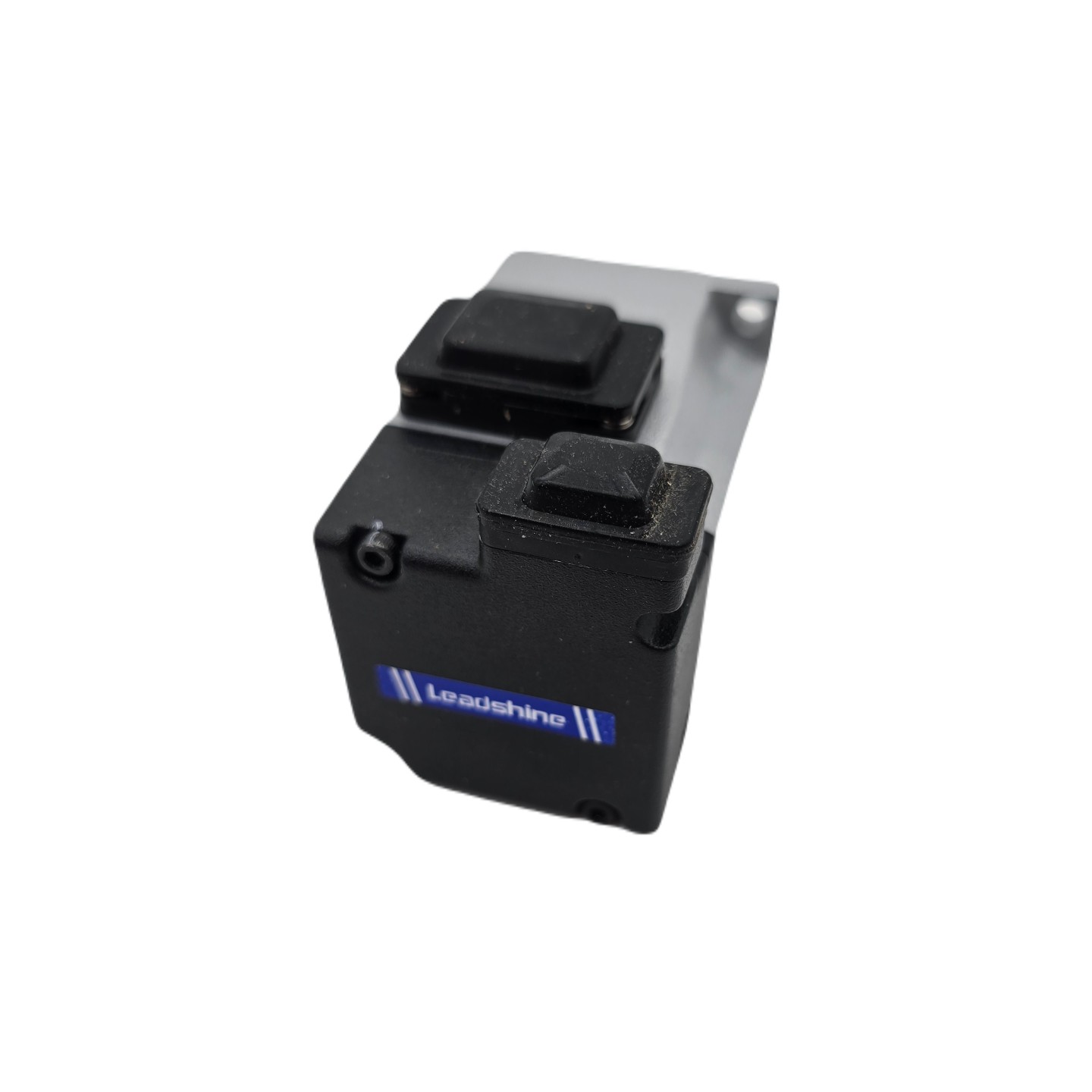

100W AC Servo motor (No Brake) – ELM1H-0100MA40F

$240

2 in stock (can be backordered)

SKU: ELM1H-0100MA40F Categories: ,

Description

ELM1 series servo motors with magnetic encoder,  these servo motors use permanent magnet rotors, providing features, such as; high torque density, high peak torques, low noise, low temperature rise and lower current consumption. Power range from 50W to 1000W, frame size range from 40mm to 80mm.

  • Rated voltage 220VAC, rated power 100W
  • Frame 40mm, rated torque 0.32N•m, rated speed 3000r/min
  • 23-bit magnetic encoder
  • No brake, direct connector
  • Strong overload capacity
  • IP67
Model ELM1H-0100MA40F
Frame Size (mm) 40
Rated Voltage (Vac) 220
Rated Power (W) 100
Rated Torque (N.m) 0.32
Peak Torque (N.m) 0.95
Rated Speed (rpm) 3000
Peak Speed (rpm) 5000
Rated Current (Amp) 0.92
Peak Current (Amp) 2.85
Torque Constant (N.m/Amp) 0.38
Back EMF Constant (V/krpm) 23.13
Resistance (Ω) 17.71
Inductance (mH) 14.26
Inertia (kg*m2*10-4) 0.062
Poles 10
Encoder Type 23bit   magnetic
IP Rating IP67
Weight (Kg) 0.38

2D Drawing (PDF): ELM1H-0100MA40F

3D drawing download (LeadShine Website): Click here

CE EMC Certification: ELM1&2_40_Series_CE_EMC_Certification

Additional information

Weight 0.5 kg
Dimensions 115 × 65 × 85 mm
