Description
The ELVM series is a new low voltage servo motor series designed by LeadShine. The servo motors provide features of short length, high torque density, high peak torque, low noise, low temperature rising and IP65 protection. with 2500-Line incremental encoder or 17-bit absolute encoder.
● Rated voltage 48V, rated power 400W
● Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min
● With brake
● Insulation class: Class F
● 17 bit magnetic multi-turn absolute encoder
● IP65
| Model | ELVM6040V48EH-M17-HD |
| Frame Size (mm) | 60 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 400 |
| Rated Torque (N.m) | 1.27 |
| Peak Torque (N.m) | 3.81 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 10 |
| Peak Current (Amp) | 31 |
| Torque Constant (N.m/Amp) | 0.137 |
| Back EMF Constant (V/krpm) | 8.3 |
| Resistance (Ω) | 0.28 |
| Inductance (mH) | 0.52 |
| Inertia (kg*m2*10-4) | 0.59 |
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 245 |
| Max axial load(N) | 74 |
| IP Rating | IP65 |
| Weight (Kg) | 1.7 |

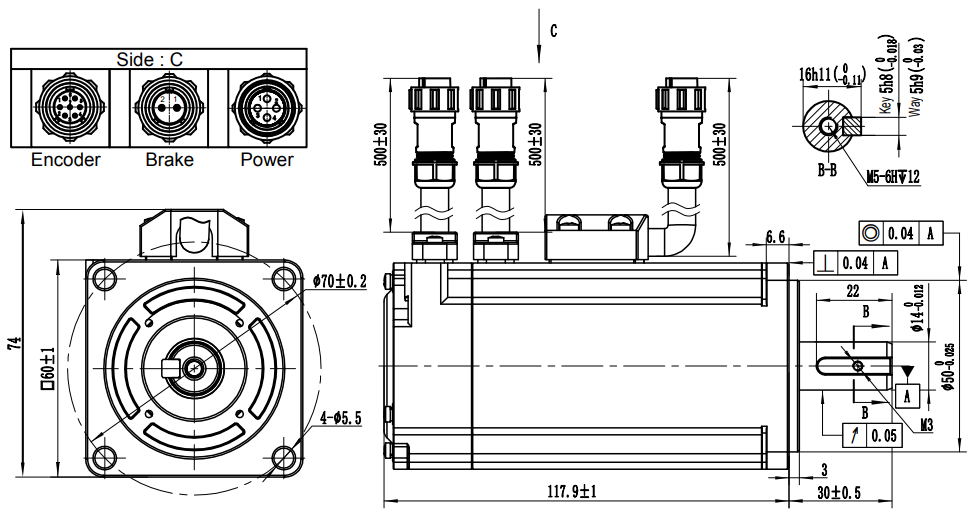

2D Drawing (PDF): ELVM6040V48EH-M17-HD
3D drawing download (LeadShine Website): Click here
ELVM6040V48EH-M17-HD certification (LeadShine Website): Click here
