Description

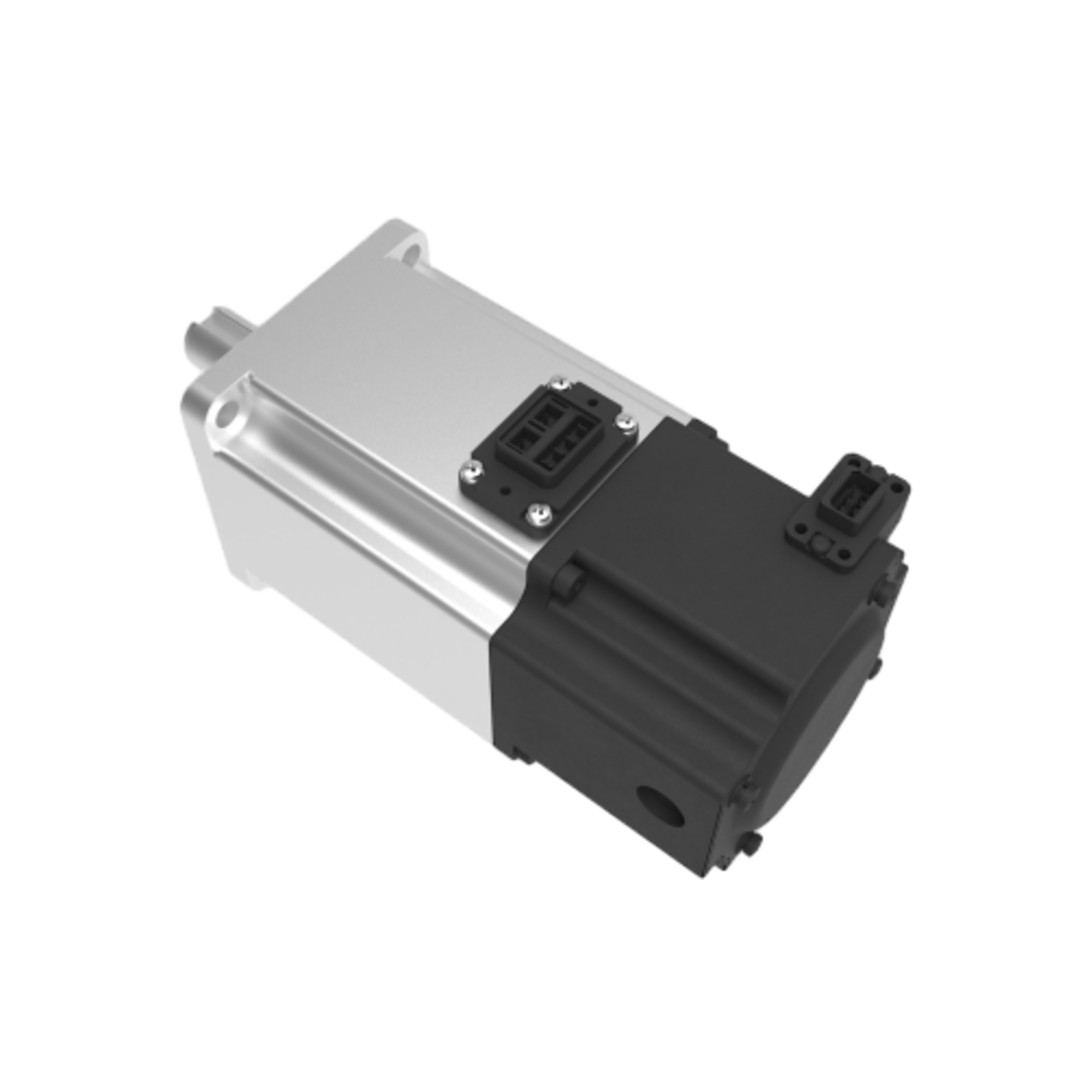

The servo motors use permanent magnet rotors which provide features such as; high torque density, high peak torque, low noise, low temperature rising and lower current consumption. This AC servo motor is power rated at 400W, with a power range from 50W to 1000W, frame size range from 40mm to 80mm. The AC servo motors are designed by LeadShine who have the intellectual property rights for this product.
- Rated voltage 220VAC, rated power 400W
- Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min
- 23-bit optical encoder
- With brake, direct connector
- Strong overload capacity
- IP67
| Model | ELM2H-0400LA60E |
| Frame Size (mm) | 60 |
| Rated Voltage (Vac) | 220 |
| Rated Power (W) | 400 |
| Rated Torque (N.m) | 1.27 |
| Peak Torque (N.m) | 3.81 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 5000 |
| Rated Current (Amp) | 2.1 |
| Peak Current (Amp) | 6.5 |
| Torque Constant (N.m/Amp) | 0.645 |
| Back EMF Constant (V/krpm) | 39 |
| Resistance (Ω) | 5.7±10% |
| Inductance (mH) | 12±20% |
| Inertia (kg*m2*10-4) | 0.58 |
| Poles | 10 |
| Encoder Type | 23bit optical |
| IP Rating | IP67 |
| Weight (Kg) | 1.55 |
2D Drawing (PDF): ELM2H-0400LA60E
3D drawing download (LeadShine Website): Click here
CE EMC Certification (LeadShine Website): ELM1&2_60_Series_CE_EMC_Certification
