Description

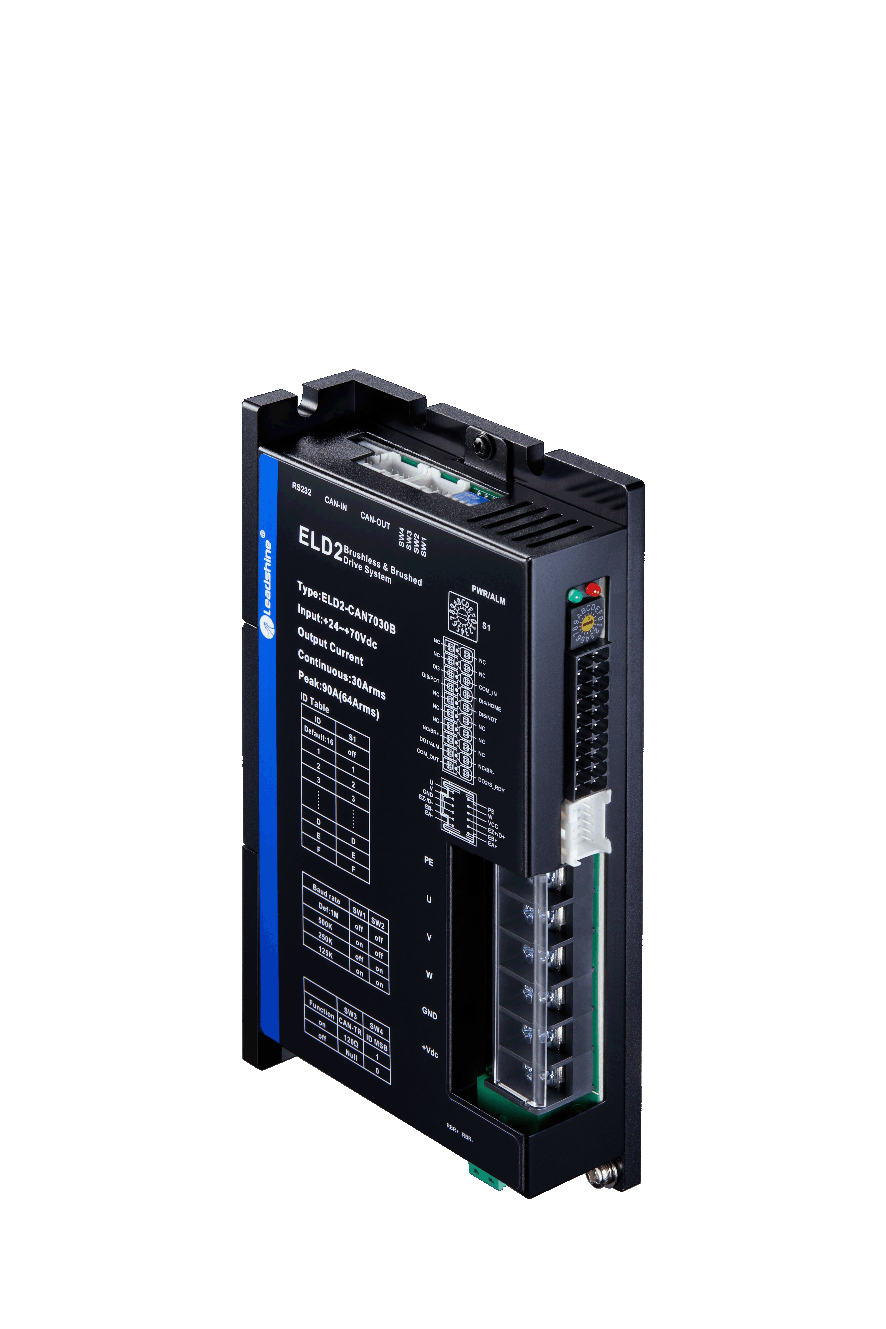

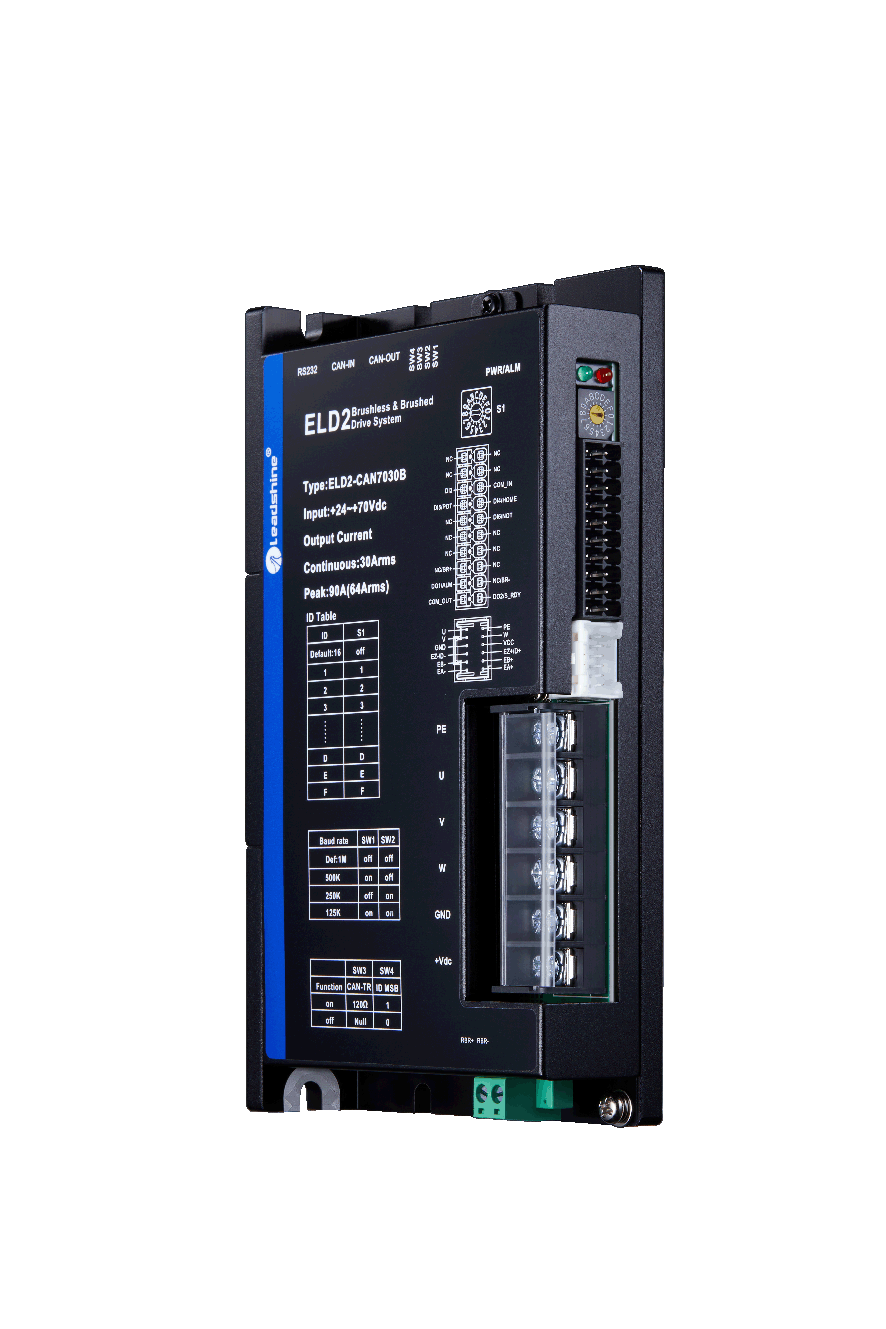

The ELD2-CAN7030B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.
● Main power voltage: 24-70VDC
● Output current: 30Arms continuous; 90A peak
● Direct brake output: 24VDC/1A
● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
| Drive model | ELD2-CAN7030B | |
| Size(mm) | 175*101.5*31 | |
| Rated power(kW) | 1.2 | |
| Rated current(Arms) | 30 | |
| Peak current(Apeak) | 90 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 30Arms （≤48Vdc） | |
| 21Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | —— |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | —— | |
| Protection rank | IP20 | |

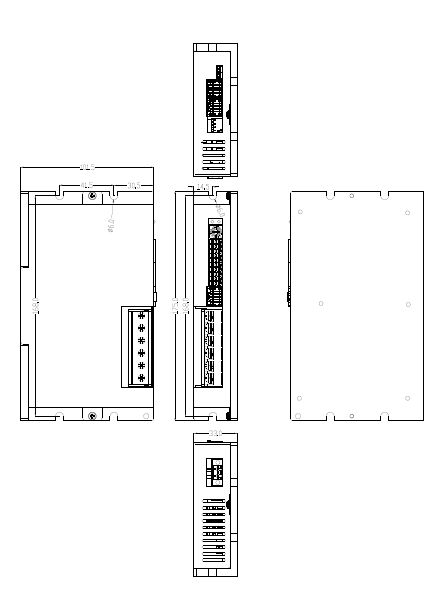

2D Drawing (PDF): ELD2-CAN7030B
3D drawing download (LeadShine Website): Click here
Manual Download (LeadShine Website): Click here
Software Download (LeadShine Website): Click here
