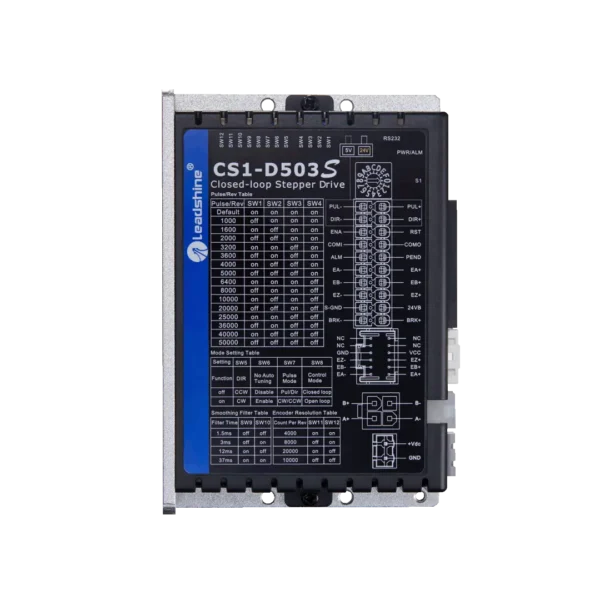

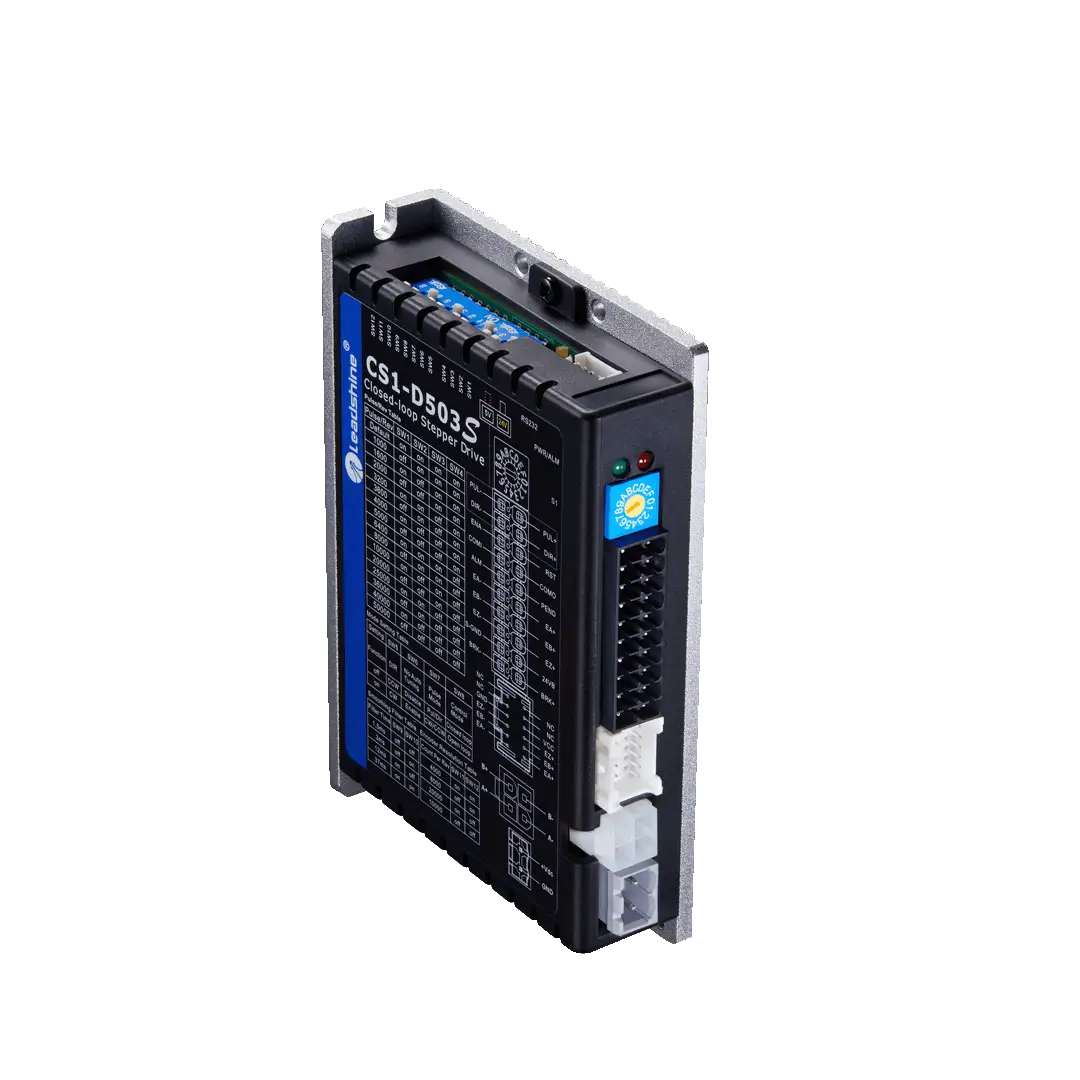

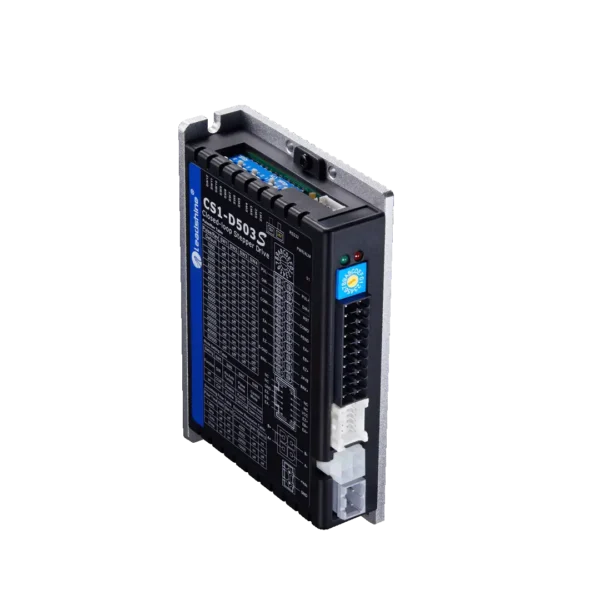

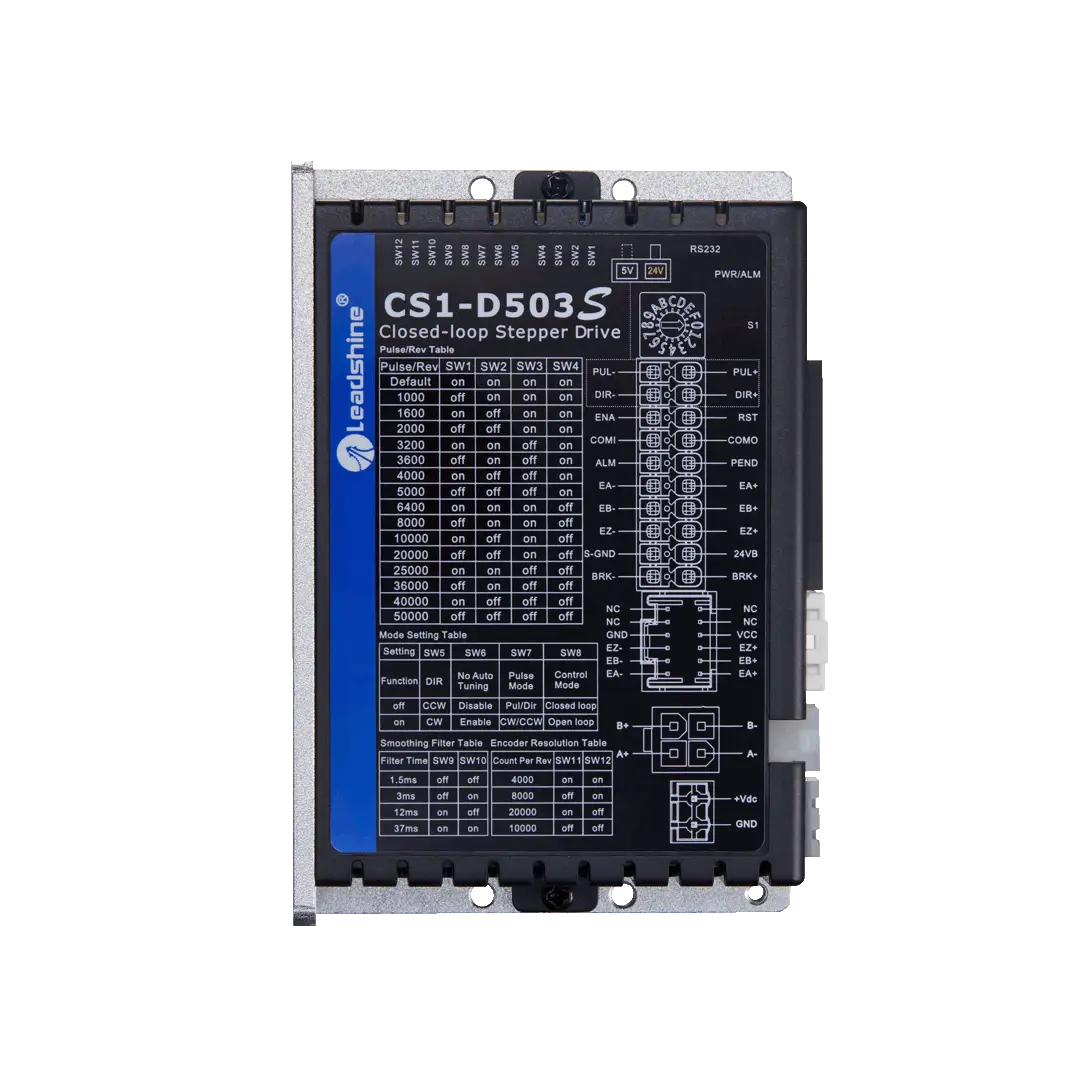

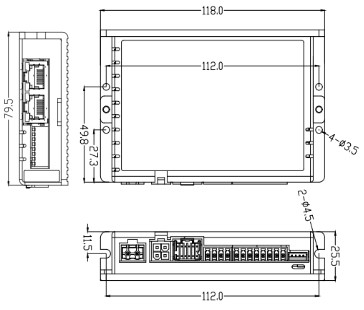

3A closed loop stepper driver CS1-D503S

Description

Leadshine CS1-D503S is closed loop stepper drive designed to solve loss of step problem in open loop stepper control systems, thus increase system reliability at minimal cost increase. It implements an advanced control algorithm of  based on Leadshines tens of years’ experience in stepper and servo controls. The CS1-D503S is highly reliable, affordable and has excellent performance in many industrial applications such as CNC, medical, electronics, packaging…

The CS1-D503S can power 2-phase NEMA 8, 11 and 17 stepper motors with incremental encoders.  Compared with traditional open loop stepper systems, the CS1-D503S closed loop step system can eliminate potential loss of step, make real-time position error correction, and does not need torque reservation (100% torque implementation). Also it can power the driven stepper motor with reduced heating, lower noise, low vibration…

• 20-50VDC supply voltage, max 3A output current.

• No loss of step, No hunting, No torque reservation, No tuning.

• Step & direction or CW/CCW control modes.

• Enhance performance at low-speed application (30-120 RPM).

• Max 500 KHz input frequency.

• Brake output without connecting a relay.

• Encoder A/B/Z outputs.

• Switch Setting: Microstep, Direction, Pulse Mode, Positional command filter, Encoder resolution, Gain adjustment and output current, 5V / 24V logical voltage selector.

Model CS1-D503S
Series CS1
Command Source PUL&DIR,   CW&CCW
Operation Voltage (VDC) 20-50
Output Current (A, Peak) 3.0
Input Frequency (KHz, Max.) 500
Logical Voltage (VDC) 5 or 24
# of Inputs 4
# of Outputs 6
Characteristics Encoder output
