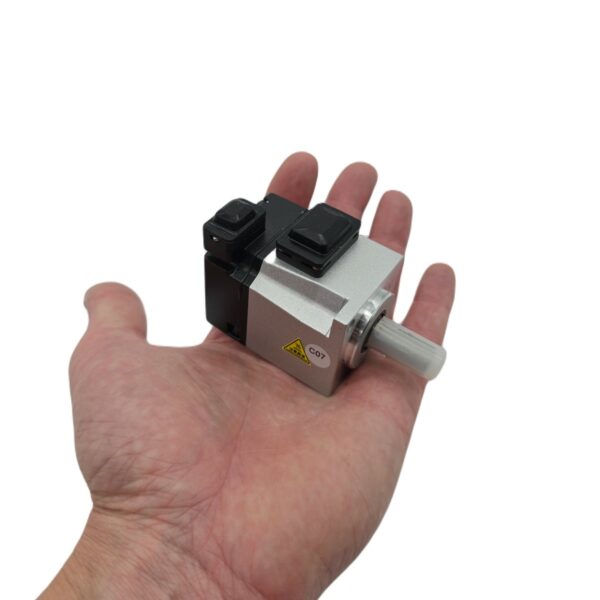

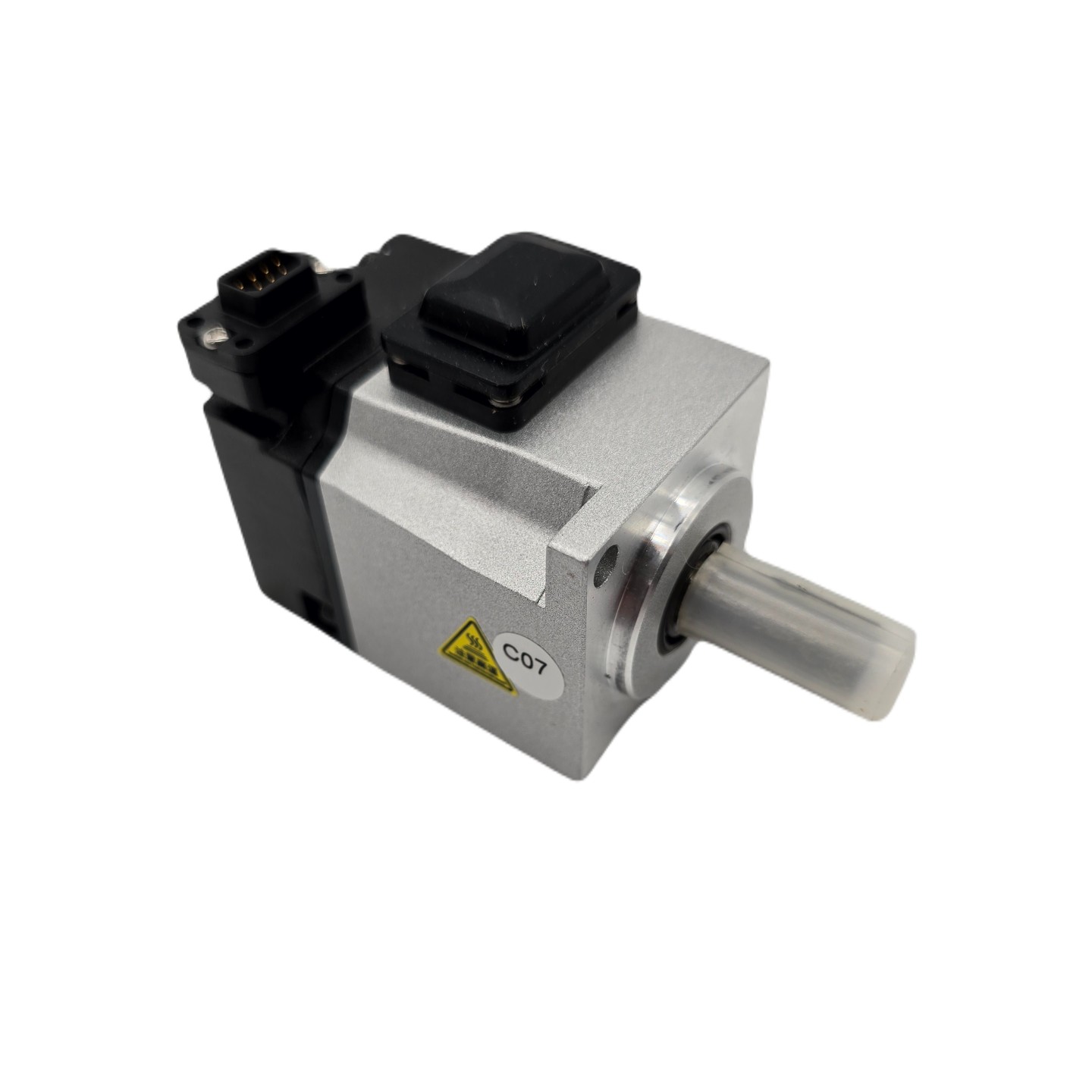

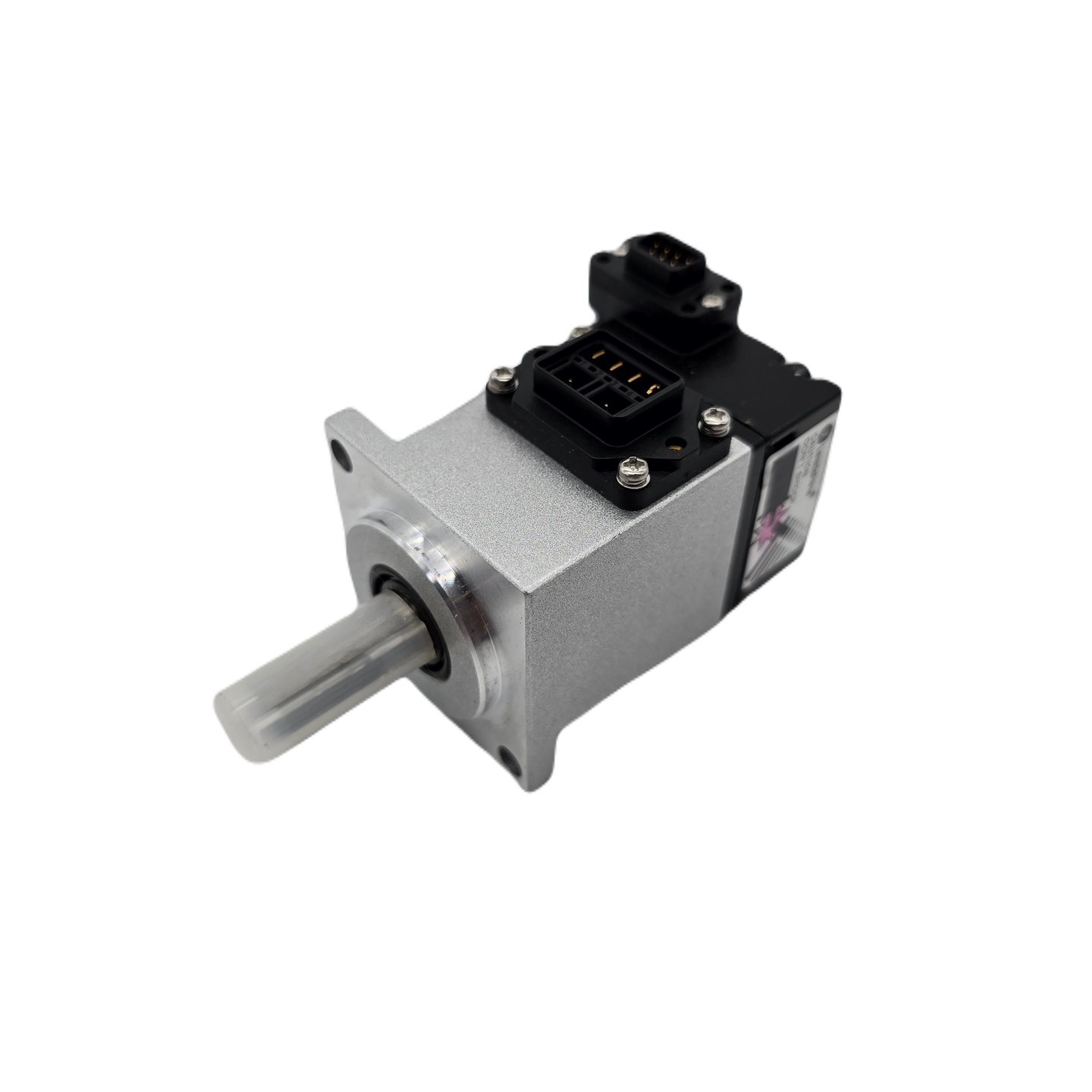

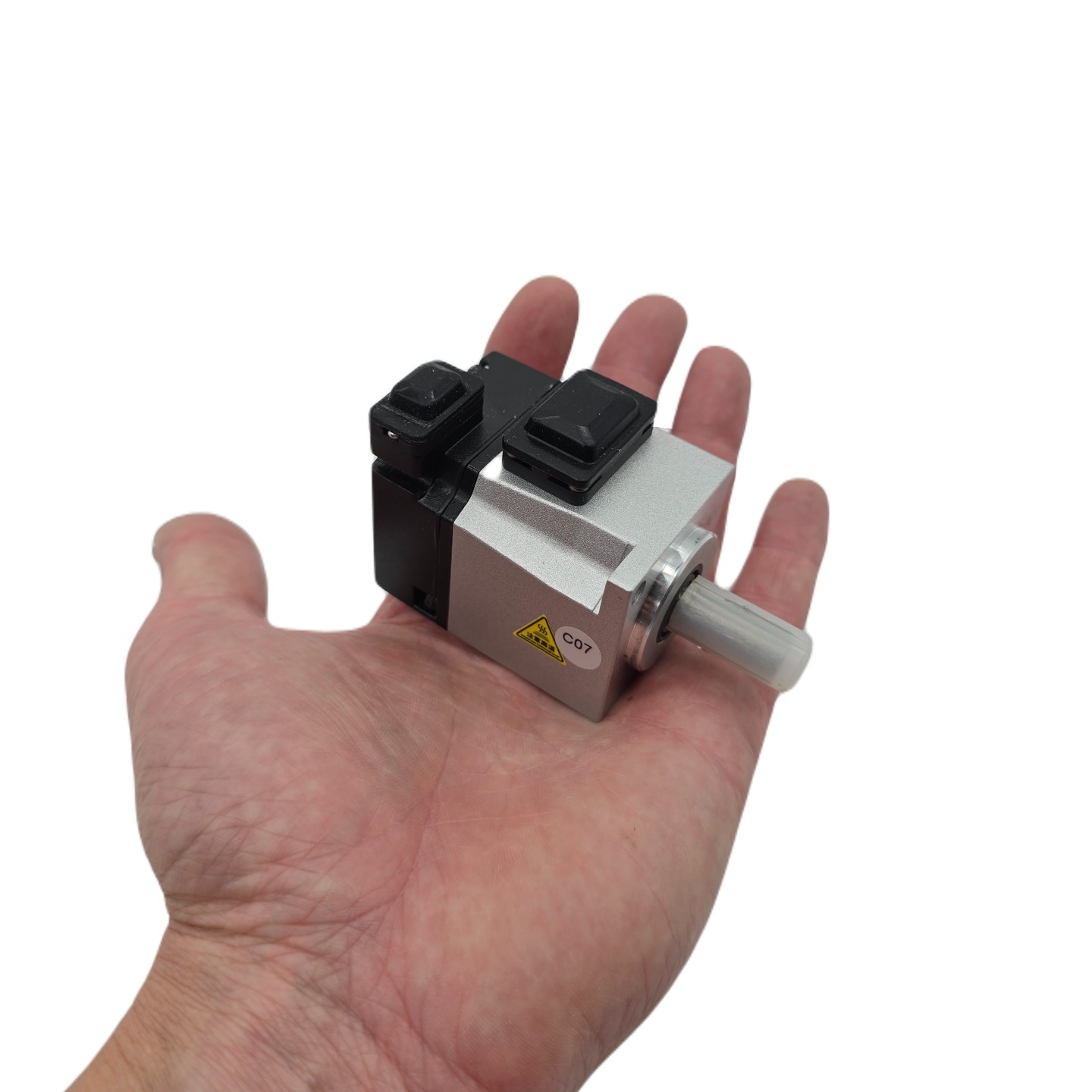

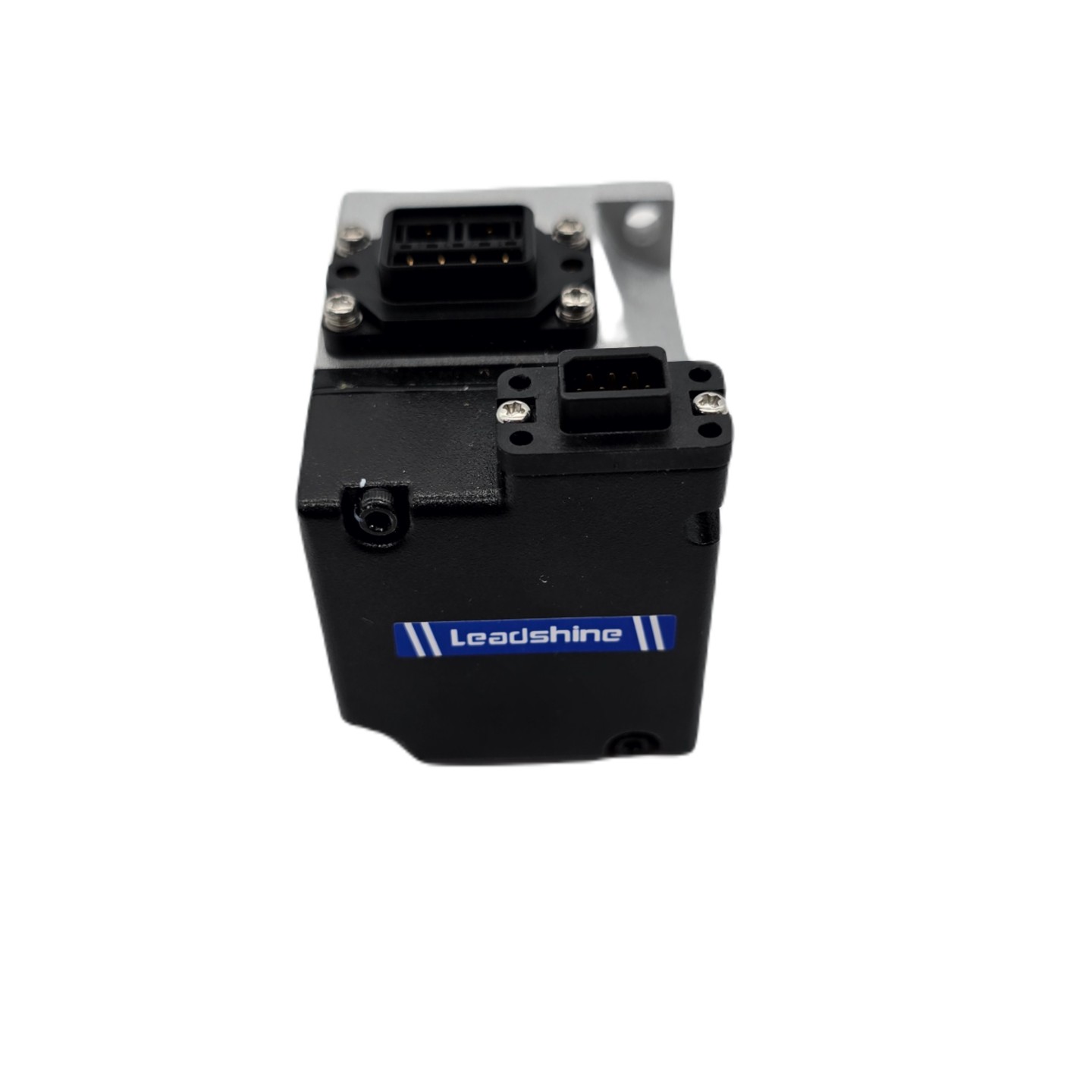

Description
ELM1 series servo motors with magnetic encoder, these servo motors use permanent magnet rotors, providing features, such as; high torque density, high peak torques, low noise, low temperature rise and lower current consumption. Power range from 50W to 1000W, frame size range from 40mm to 80mm.
- Rated voltage 220VAC, rated power 50W
- Frame 40mm, rated torque 0.16N•m, rated speed 3000r/min
- 23-bit magnetic encoder
- No brake, direct connector
- Strong overload capacity
- IP67
| Model | ELM1H-0050MA40F |
| Frame Size (mm) | 40 |
| Rated Voltage (Vac) | 220 |
| Rated Power (W) | 50 |
| Rated Torque (N.m) | 0.16 |
| Peak Torque (N.m) | 0.48 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 5000 |
| Rated Current (Amp) | 0.93 |
| Peak Current (Amp) | 2.88 |
| Torque Constant (N.m/Amp) | 0.2 |
| Back EMF Constant (V/krpm) | 12.35 |
| Resistance (Ω) | 11.79 |
| Inductance (mH) | 10.25 |
| Inertia (kg*m2*10-4) | 0.036 |
| Poles | 10 |
| Encoder Type | 23bit magnetic |
| IP Rating | IP67 |
| Weight (Kg) | 0.28 |
2D Drawing (PDF): ELM1H-0050MA40F
3D drawing download (LeadShine Website): Click here
CE EMC Certification: ELM1&2_40_Series_CE_EMC_Certification
