Description

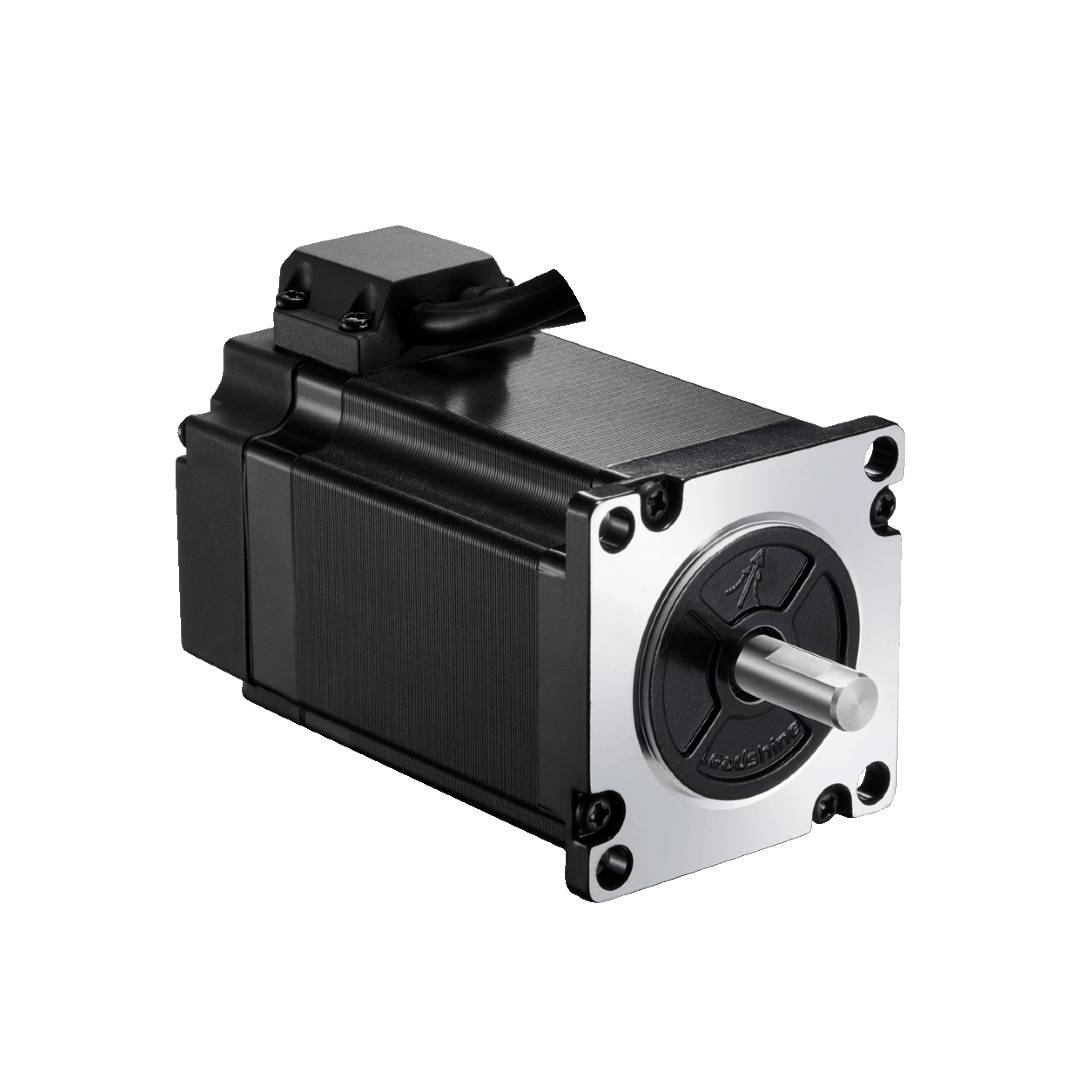

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line (20,000 counts/revolution) differential ended rotary encoder. Built with premium quality materials including bearings and shaft, this closed loop stepper motor can be adopted in many industrial applications. Such as; high precision, low motor heating, and low vibration.
- 2 phase, NEMA 23 frame size
- 75 mm (2.95 inch) long
- 4 A phase current
- 1.3 N.m (185 oz-in) holding torque
- 8 mm (0.315 inch) shaft size
- Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
- High precision, low motor heating, and low vibration
Model | CS-M22313 |
Series | CS-M |
Phase | 2 phase |
Frame Size (NEMA) | 23 |
Length (mm) | 75 |
Holding Torque (N.m) | 1.3 |
Phase Current (A) | 4.0 |
Shaft Diameter (mm) | 8 |
Center Diameter (mm) | 38.1 |
IP Rate | IP40 |
Characteristics | Standard |
Resistance (Ohm) | 0.42 |
Inductance (mH) | 1.6 |
Inertia (kg/cm2) | 0.30 |
Weight(kg) | 0.9 |
57CM26 2D Drawing Download: CS-M22313
57CM26 3D Drawing (LeadShine website): Click Here
