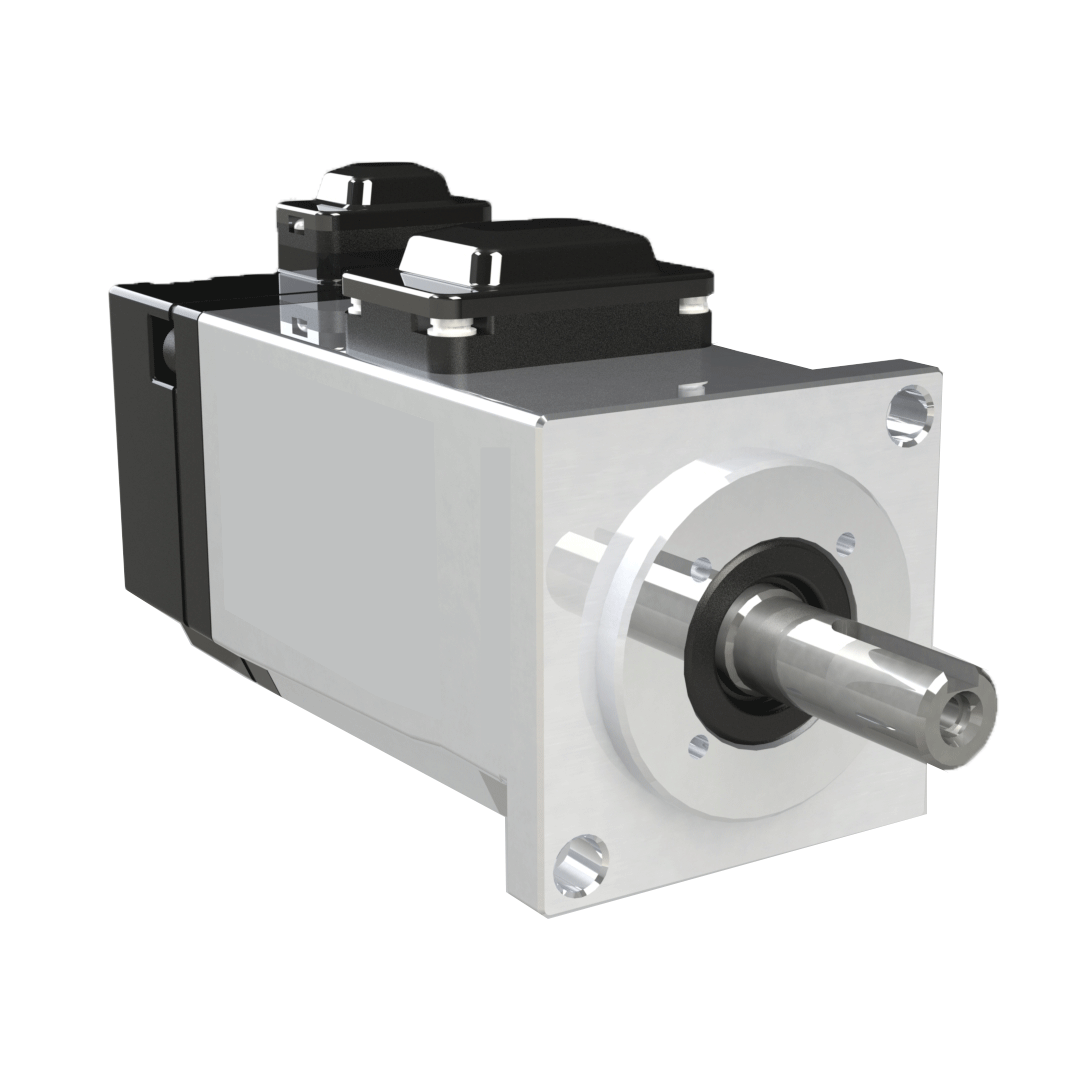

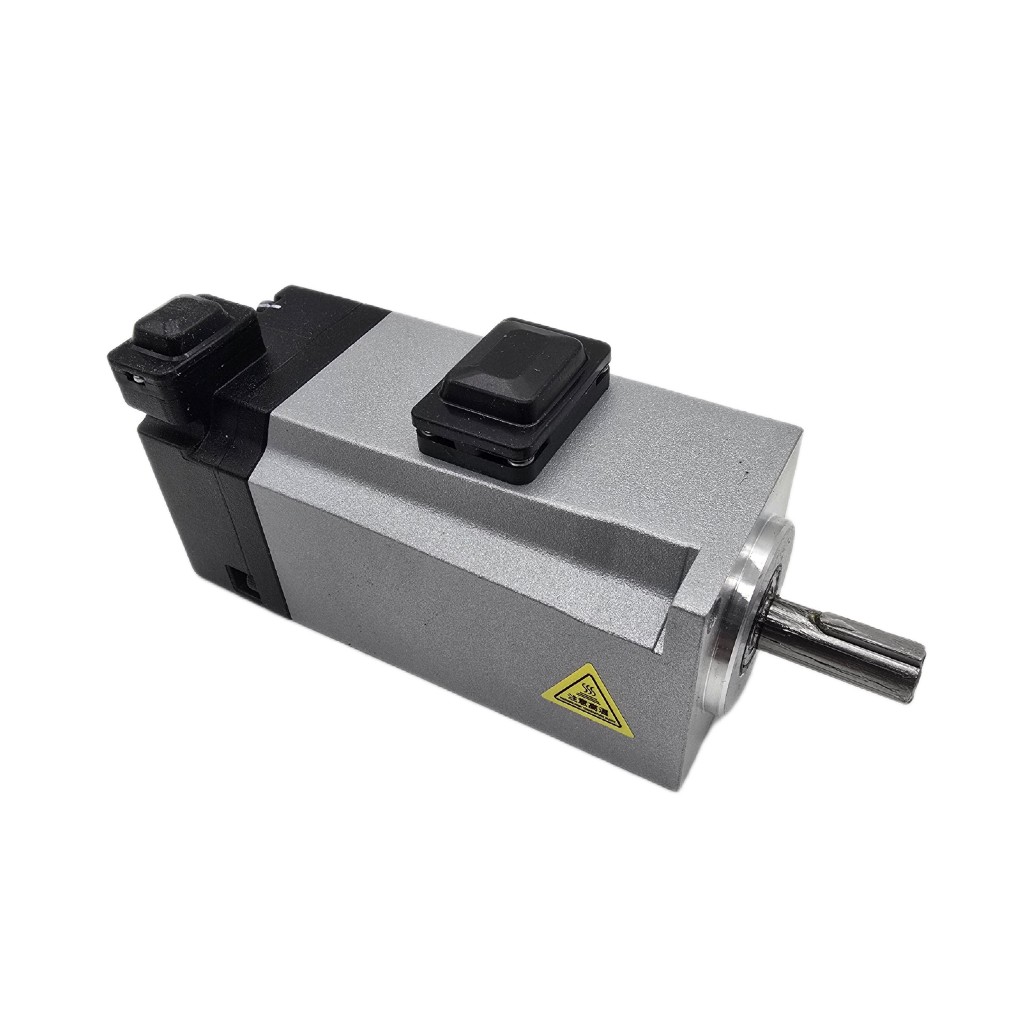

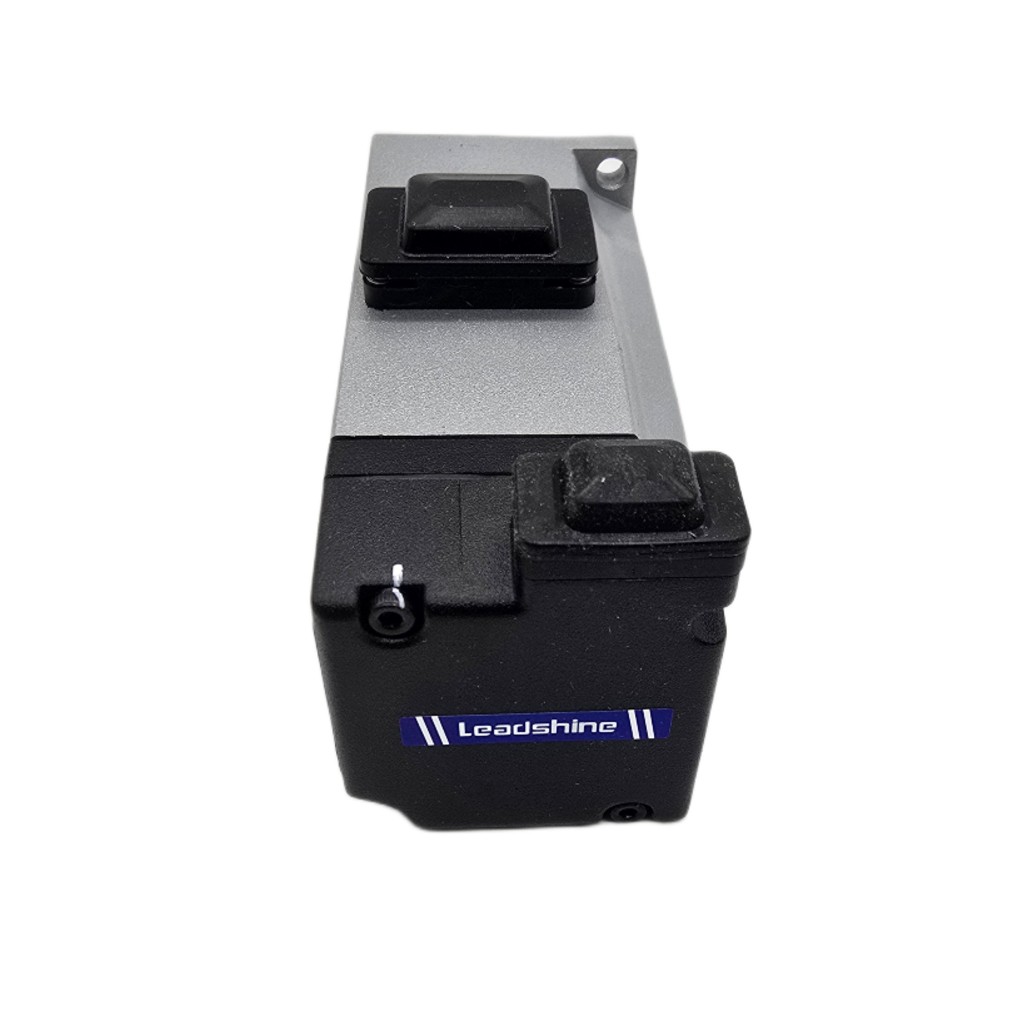

Description
The servo motors provide features of high torque density, high peak torques, low noise, low temperature rising and lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.
- Rated voltage 220VAC, rated power 100W
- Frame 40mm, rated torque 0.32N•m, rated speed 3000r/min
- 23-bit magnetic encoder
- With brake, direct connector
- Strong overload capacity
- IP67
| Model | ELM1H-0100MA40E |
| Frame Size (mm) | 40 |
| Rated Voltage (Vac) | 220 |
| Rated Power (W) | 100 |
| Rated Torque (N.m) | 0.32 |
| Peak Torque (N.m) | 0.95 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 5000 |
| Rated Current (Amp) | 0.92 |
| Peak Current (Amp) | 2.85 |
| Torque Constant (N.m/Amp) | 0.38 |
| Back EMF Constant (V/krpm) | 23.13 |
| Resistance (Ω) | 17.71 |
| Inductance (mH) | 14.26 |
| Inertia (kg*m2*10-4) | 0.072 |
| Poles | 10 |
| Encoder Type | 23bit magnetic |
| IP Rating | IP67 |
| Weight (Kg) | 0.54 |
Certification (Leadshine website): Click here
3D modeling (Leadshine website): Click here

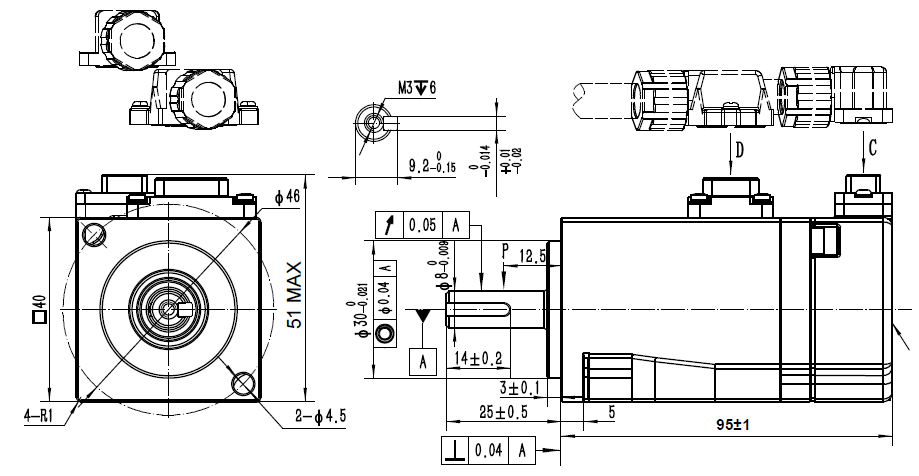

2D drawing: ELM1H-0100MA40E
