100W AC Servo motor ELM1H-0100MA40F
ELM1 series servo motors with magnetic encoder, these servo motors use permanent magnet rotors, providing features, such as; high torque density, high peak torques, low noise, low temperature rise and lower current consumption. Power range from 50W to 1000W, frame size range from 40mm to 80mm. Rated voltage 220VAC, rated power 100W Frame 40mm, rated…
-

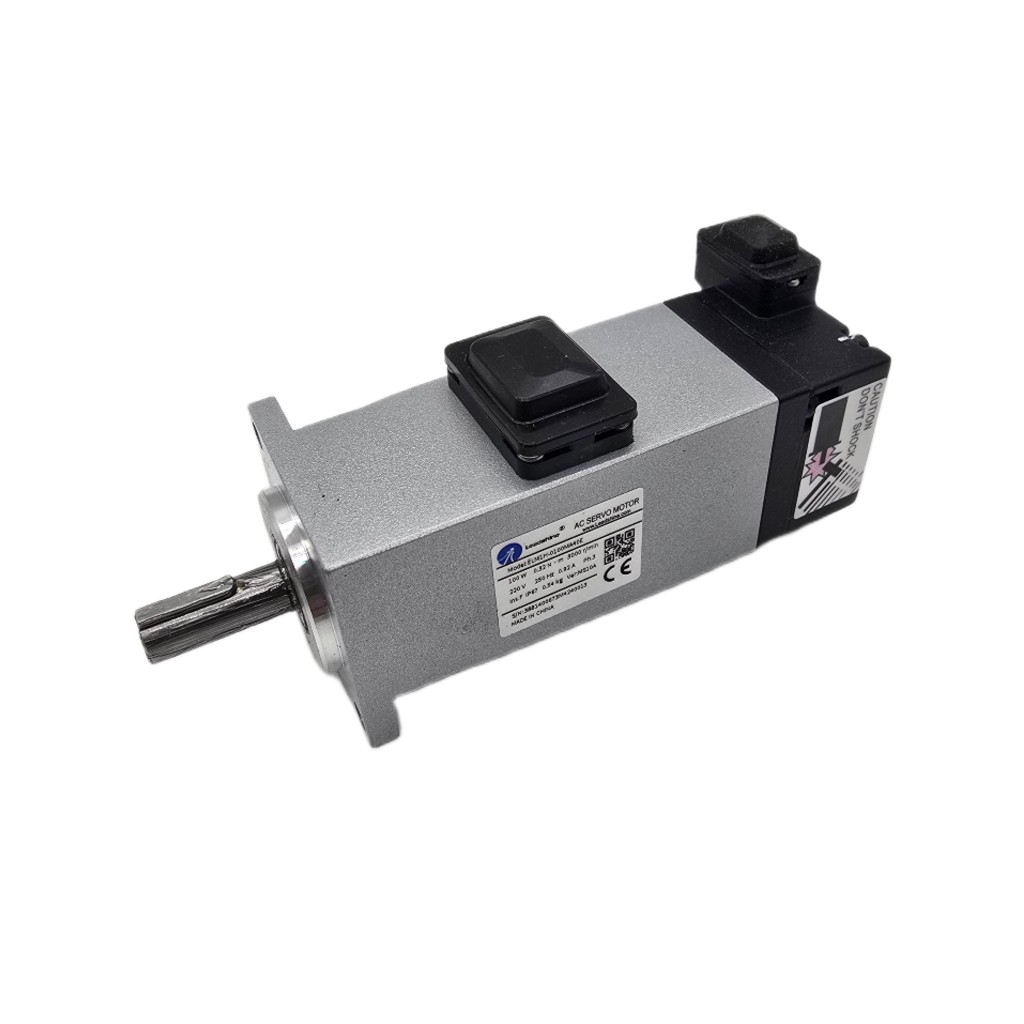

100W AC Servo Motor ELM1H-0100MA40E (has brake)
The servo motors provide features of high torque density, high peak torques, low noise, low temperature rising and lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm. Rated voltage 220VAC, rated power 100W Frame 40mm, rated torque 0.32N•m, rated speed 3000r/min 23-bit magnetic encoder With brake,…
-
ELVM4010V48FH-M17-HD, 100W 48V Servo motor
Voltage 48V, rated power 100W Frame 40mm, rated torque 0.32Nﾷm, rated speed 3000r/min No brake Insulation class: Class F 17 bit magnetic multi-turn absolute encoder IP65 Model ELVM4010V48FH-M17-HD Frame Size (mm) 40 Rated Voltage (Vac) 48 Rated Power (W) 100 Rated Torque (N.m) 0.32 Peak Torque (N.m) 0.96 Rated Speed (rpm) 3000 Peak Speed (rpm)…
-
50W AC Servo motor ELM1H-0050MA40F
ELM1 series servo motors with magnetic encoder, these servo motors use permanent magnet rotors, providing features, such as; high torque density, high peak torques, low noise, low temperature rise and lower current consumption. Power range from 50W to 1000W, frame size range from 40mm to 80mm. Rated voltage 220VAC, rated power 50W Frame 40mm, rated…
-
ELVM4005V48FH-M17-HD, 50W 48V Servo motor
Voltage 48V, rated power 50W Frame 40mm, rated torque 0.16Nﾷm, rated speed 3000r/min No brake Insulation class: Class F 17 bit magnetic multi-turn absolute encoder IP65 Model ELVM4005V48FH-M17-HD Frame Size (mm) 40 Rated Voltage (V) 24 Working Voltage(V) 24-48 Rated Power (W) 50 Rated Torque (N.m) 0.16 Peak Torque (N.m) 0.48 Rated Speed (rpm) 3000…
-
iSV-B23090T-S21 integrated servo motor & driver
● Main power voltage: 24-48VDC. Rated voltage: 36VDC ● Rated power: 90W. Rated torque: 0.3N.m. ● Pulse + Direction ● 17 bit incremental magnetic encoder ● Dip switch for “Command pulse per revolution”, “rotational direction” and “stiffness” ● RS-232 serial interface for easy tuning with ACHseries Model iSV-B23090T-S21 Frame size (mm) 57 (Nema 23) Rated power (W) 90 Rated voltage…
