15.6″ Ethernet interface HMI – LT2156E LeadShine
High resolution, high brightness, high-quality image display Professional level appearance design creates a high aesthetic value Practical downward wiring method is convenient for quick installation and wiring Rich library resources, powerful programming functions, create operation interface easily Using industrial ABS plastic casing, low cost, high reliability, and high cost-effectiveness Support USB data storage and download…
400W integrated servo motor with brake, LeadShine – iSV2-RS6040V48G
● Main power voltage: 24-60VDC. Rated voltage: 48VDC ● Rated power: 400W. Rated torque: 1.27N.m. Overload: 300% ● 17 bit incremental magnetic encoder ● Pulse+Direction ● Modbus RTU over RS485. Build-In 16 PR paths ● Dip switch for node ID, baud rate and terminating resistor settings ● RS-232 serial interface for easy tuning with Motion Studio ● With brake
7″ Ethernet interface HMI – LT2070E LeadShine
High resolution, high brightness, high-quality image display Professional level appearance design creates a high aesthetic value Practical downward wiring method is convenient for quick installation and wiring Rich library resources, powerful programming functions, create operation interface easily Using industrial ABS plastic casing, low cost, high reliability, and high cost-effectiveness Support USB data storage and download…
750W integrated servo motor, with brake – iSV2-RS8075V48G
● Main power voltage: 24-60VDC. Rated voltage: 48VDC ● Rated power: 750W. Rated torque: 2.39N.m. Overload: 300% ● 17 bit incremental magnetic encoder ● Pulse+Direction ● Modbus RTU over RS485. Build-In 16 PR paths ● Dip switch for node ID, baud rate and terminating resistor settings ● RS-232 serial interface for easy tuning with Motion Studio ● With brake
DC Servo Driver – ELD2-RS7015B
The ELD2-RS7015B servo drive operates in torque, velocity, or position mode. This servo drive can be controlled over the Modbus RTU, ±10V analog commands, and pulse train. ● Main power voltage: 24-70VDC ● Output current: 15Arms continuous; 45A peak ● Direct brake output: 24VDC/1A ● Pulse+Direction, analog input ● Modbus RTU over RS485. Build-In 16 PR paths ● Encoder AB…

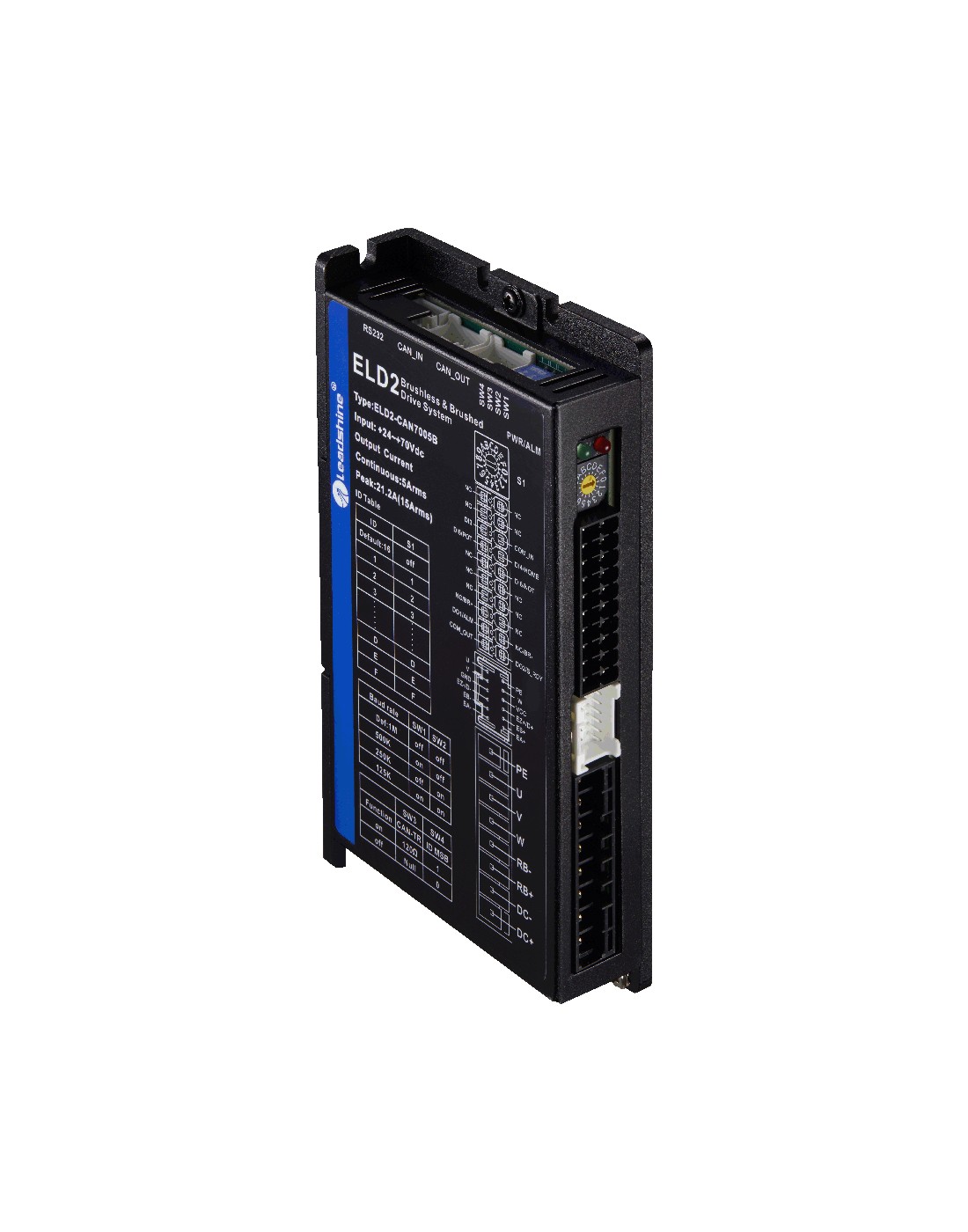

DC Servo Driver (CANopen)- ELD2-CAN7015B
The ELD2-CAN7015B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode. ● Main power voltage: 24-70VDC ● Output current: 15Arms continuous; 45A peak ● Direct brake output: 24VDC/1A ● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing ● Encoder AB output ● Dip Switch for node ID, baud rate…
iSV-B23180T-S21 integrated servo motor & driver
● Main power voltage: 24-48VDC. Rated voltage: 36VDC ● Rated power: 180W. Rated torque: 0.6N.m. ● Pulse + Direction ● 17 bit incremental magnetic encoder ● Dip switch for “Command pulse per revolution”, “rotational direction” and “stiffness” ● RS-232 serial interface for easy tuning with ACHseries
iSV2-CAN8075V48G -750W integrated servo motor, with brake, (CANopen).
The iSV2-CAN8075V48G is a 750W CANopen integrated servo motor. Leadshine iSV2 series includes 60mm and 80mm frame size servomotors which are integrated with 17-bit encoders and servo drives. At very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder and power cable connections, reduce interference and reduce system cost. ● Main…
LT2100E – 10.1″ Ethernet interface HMI, LeadShine
10.1 Inch, with Ethernet interface HMI High resolution, high brightness Support IOT expansion modules Rich communication interfaces
Nema 34 integrated servo motor – iSV2-RS8675V48H
Leadshine iSV2 series includes 57mm, (nema 23), 60mm, 80mm and 86mm (Nema34) frame size servomotors which are integrated with 17-bit encoders and servo drives. The iSV2-RS8675V48H is a 86mm (Nema 34) integrated servo motor. Its power ranges from 200 to 750W with peak torque to 7.2 Nm. At a very compact size an iSV2 integrated…
