Description

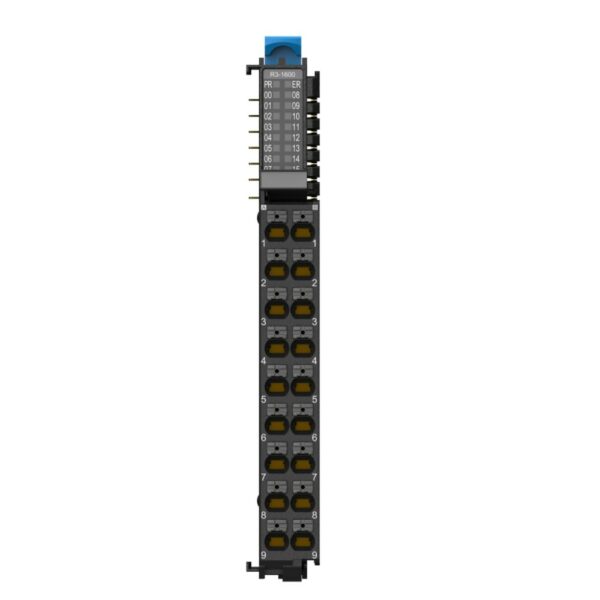

The R3 series ultra-thin modules come in over 30 categories, serving as connectors between sensors and actuators in diverse scenarios of intelligent manufacturing.
Achieve rapid equipment debugging, simple on-site maintenance and saving manufacturing time. The R3-1600 has generic logical control: various digital signal control. 16 digital inputs, NPN/PNP input type, push-in terminal
| Model | R3-1600 Digital Input Module |
| Channel | 16 |
| OFF to ON | >15VDC, 1.5mA or above |
| ON to OFF | <5VDC, 1.0mA or below |
| Input Frequency | 1K |
| ON/OFF Response Time | 20µs/50µs |
| Input Type | NPN/PNP |
| Input Resistance(max) | 4.7KΩ |
| Input Protection | Optocoupler isolation, Interference Filter |
| Common | 1 common per 8 input channels |
| Terminal | Push-in |
| Dimension | W25* H100*D75 mm |
| Installation | Standard DIN rail |
| Others | CE |
2D Drawing (PDF): R3-IO-16 series_2D
3D drawing download (LeadShine Website): Click here
Manual Download (LeadShine Website): Click here
Software Download (LeadShine Website): Click here
R3EC Series Certification: CE Certification for R3 series modules
