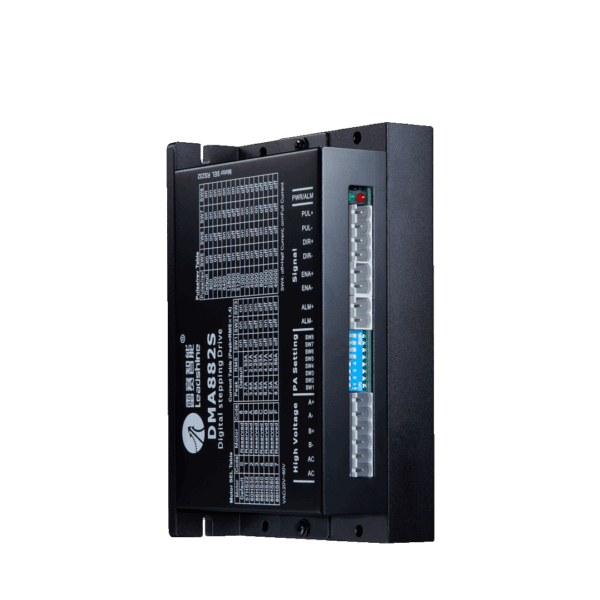

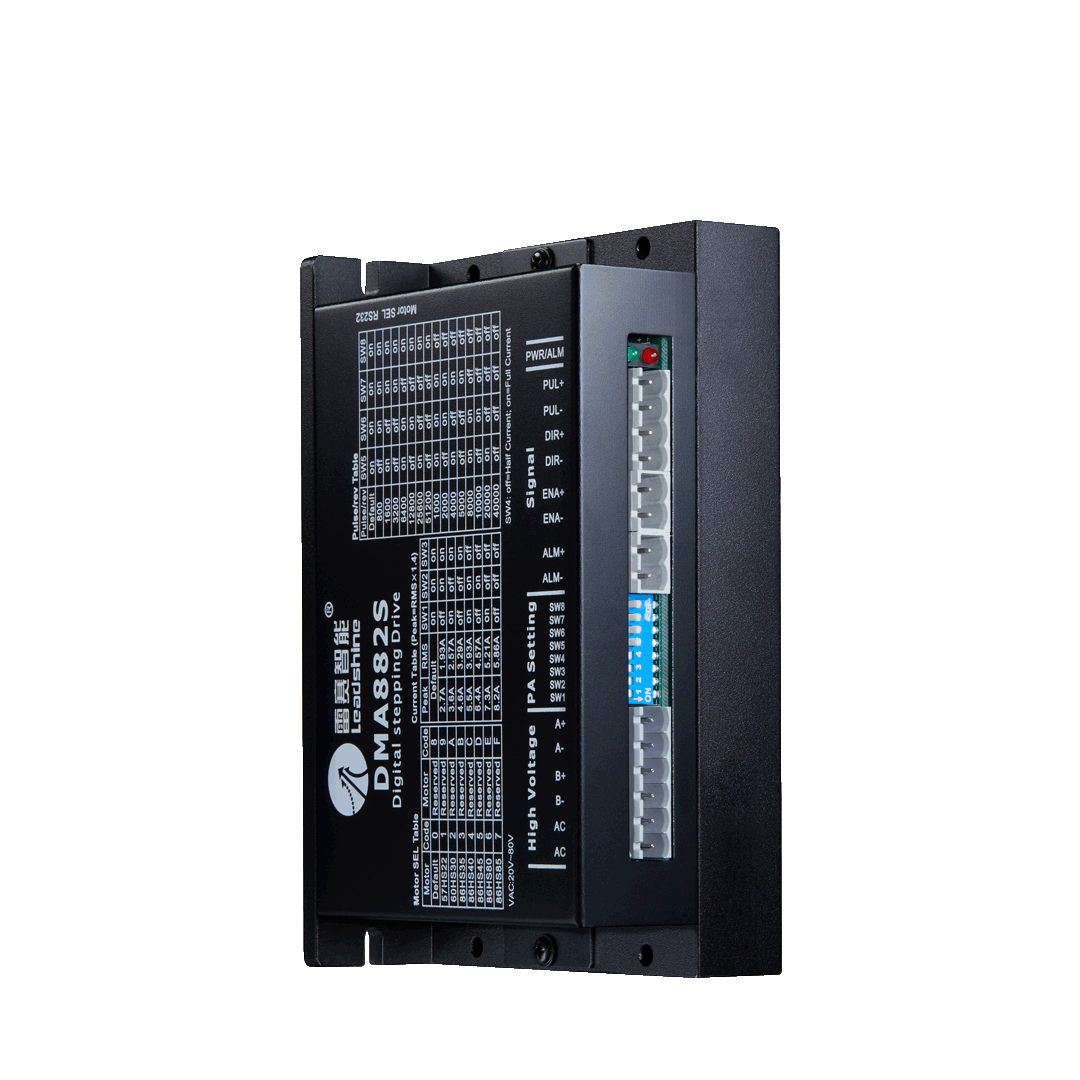

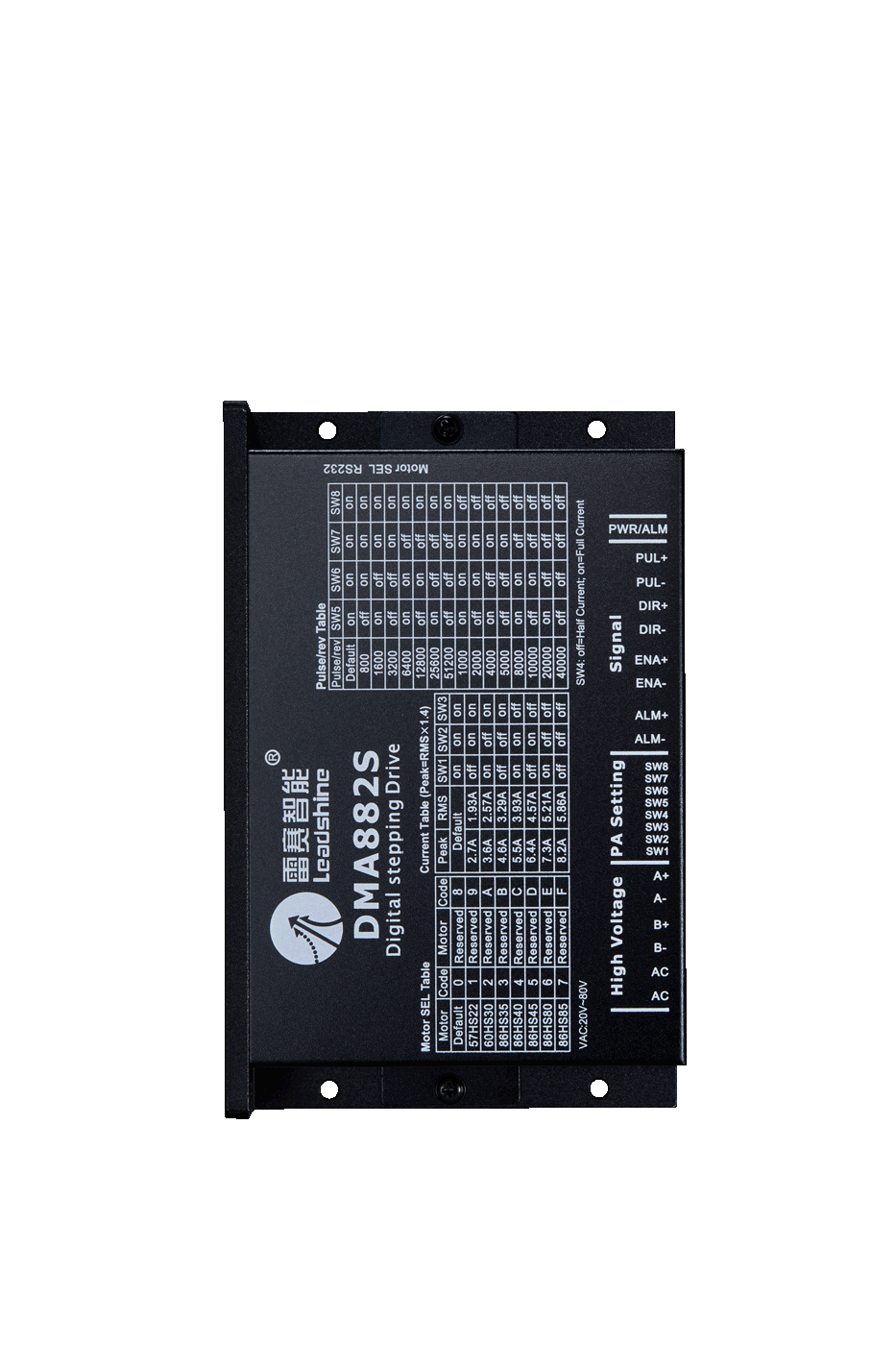

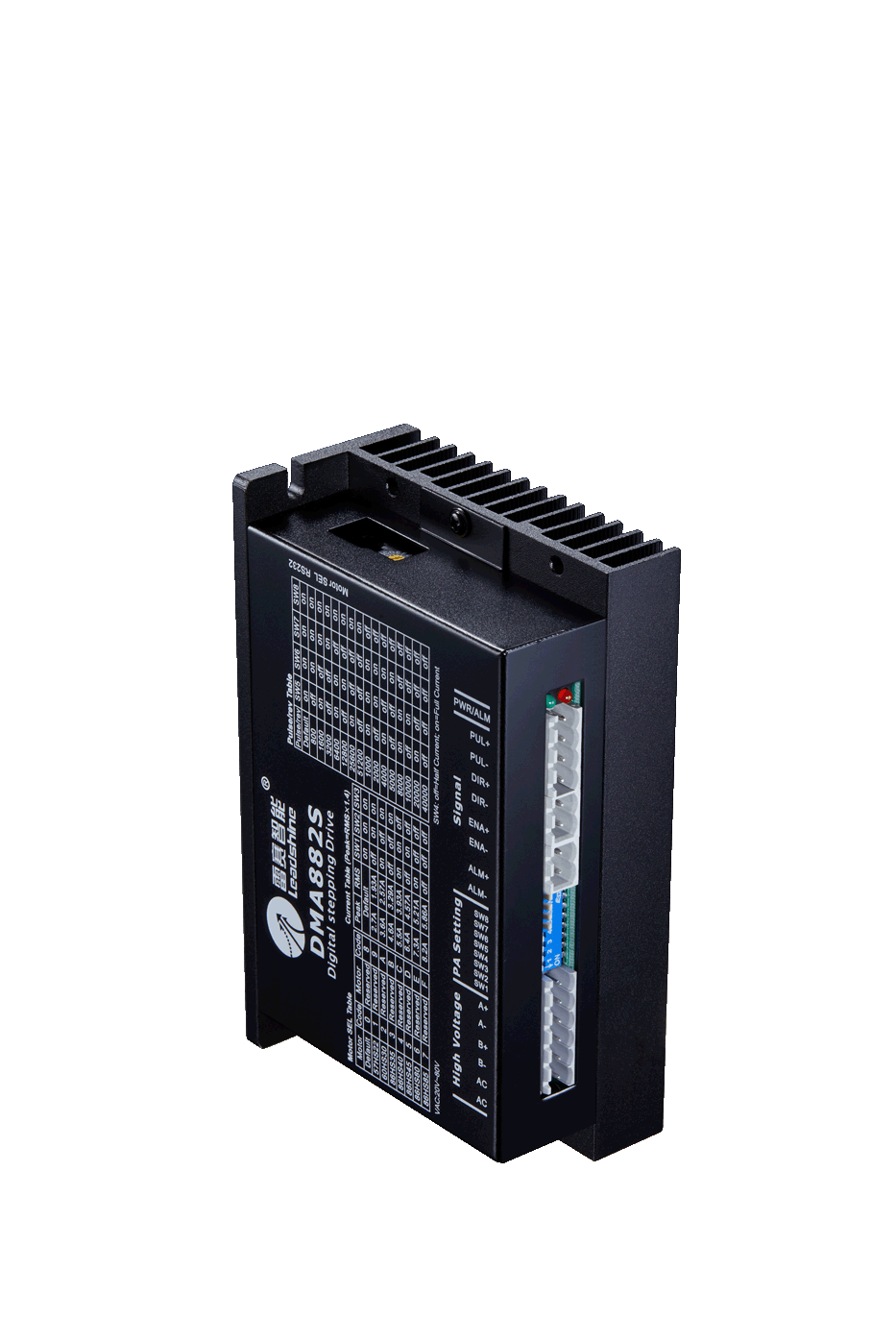

Stepper Drive DMA882S

$257.00

2 in stock

SKU: DMA882S Categories: ,

Description

The DM series stepper drives are Leadshine’s latest advanced stepper control technology. These stepper drives are highly reliable and good performance at a highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.

● Step & direction (PUL/DIR) or CW/CCW (double pulse) control

● 24-110VDC or 18-80VAC supply voltage

● 200 KHz max pulse input frequency

● 16 microstep resolutions of 400-51,200 via DIP switches, or 200-51,200 via software

● 8 output current settings of 2.1-8.2A via DIP Switches, or 0.5-8.2A via software

● Configurable control command smoothing for reducing motor vibration

Model DMA882S
Series DM
Command Source PUL&DIR,   CW&CCW
Operation Voltage (VDC) 18-80VAC or 30-110VDC
Output Current (A, Peak) 8.2
Input Frequency (KHz, Max.) 200
Logical Voltage (VDC) 5
# of Inputs 3
# of Outputs 1
Characteristics Standard

DMA882S 3D model (Leadshine website): Click here

DMA882S certification (Leadshine website): Click here

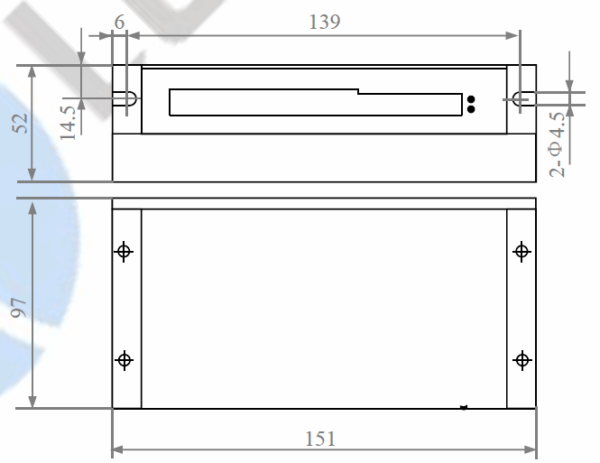

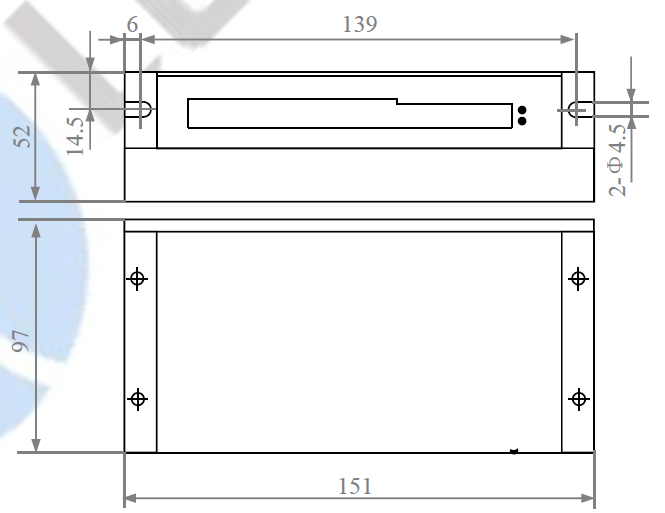

DMA882S 2D Drawing (Leadshine website): Click here

DMA882S Manual: User manual

Additional information

Weight 0.2 kg
Dimensions 170 × 110 × 70 mm
