Description

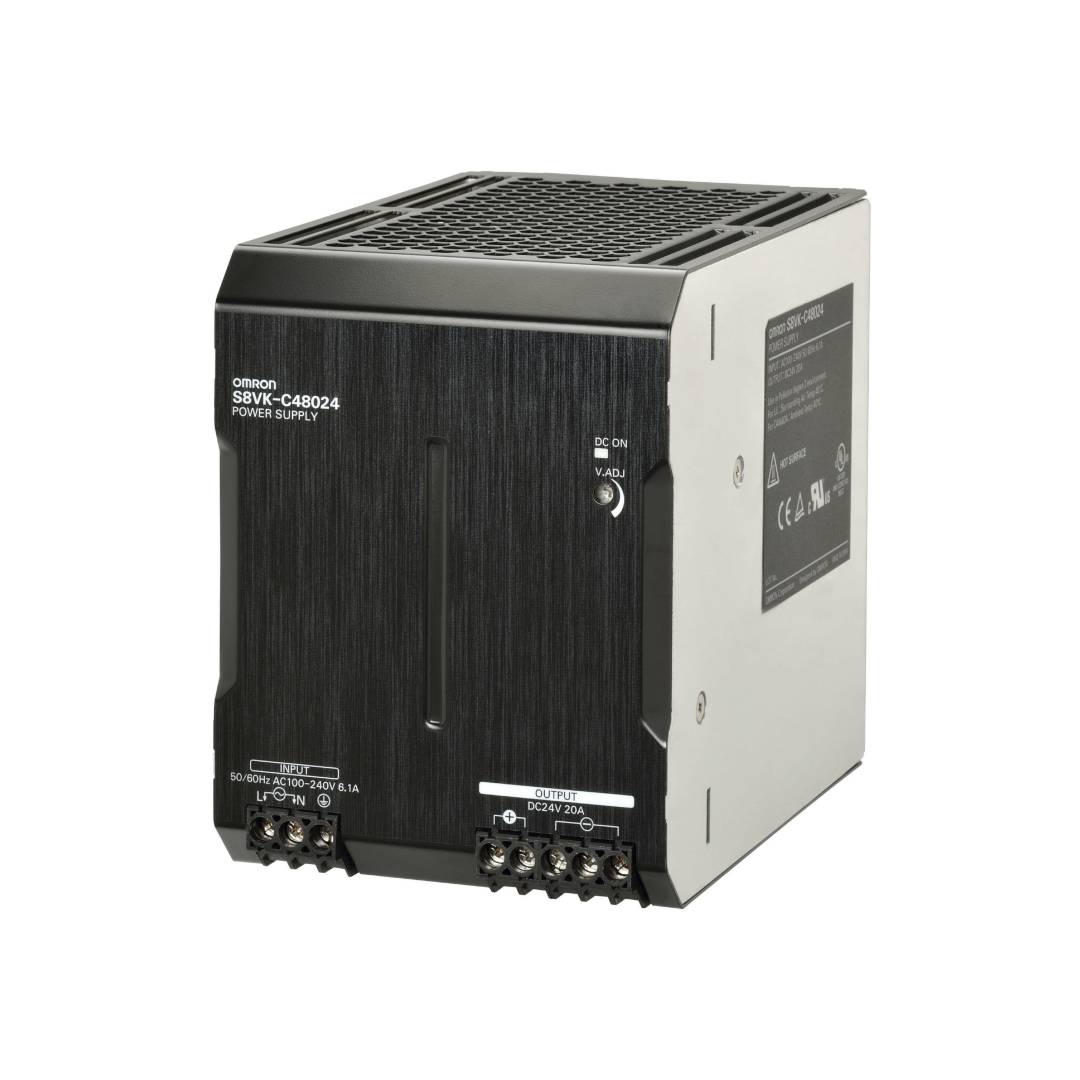

480 W, 24VDC, 20A, DIN rail mounting.
| Output voltage | 24 V |
| Rated output current | 20 Amp |
| Display | No |
| Low-voltage detection output | No |
| Overload protection | Yes |
| Overvoltage protection | Yes |
| Parallel operation | No |
| Power boost | No |
| Preventive maintenance alarm output | No |
| Series operation | Yes |
| Product Height (unpacked) | 125 mm |
| Product Depth (unpacked) | 140 mm |
| Product Width (unpacked) | 95 mm |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 90-350 V |
| Temperature range | -25-60 °C |
| Efficiency | 92 % |
| Maximum operating temperature | 60 °C |
| Minimum operating temperature | -25 °C |
| Numeric of output branches | 1 |
