Description
R2 series 16 digital output, relay output type, push-in terminal.
The interface circuits are equipped with photoelectric isolation components, which can effectively isolate external circuit interference and improve the reliability of the system. For more information see the R2 series card catalog here (page 29).

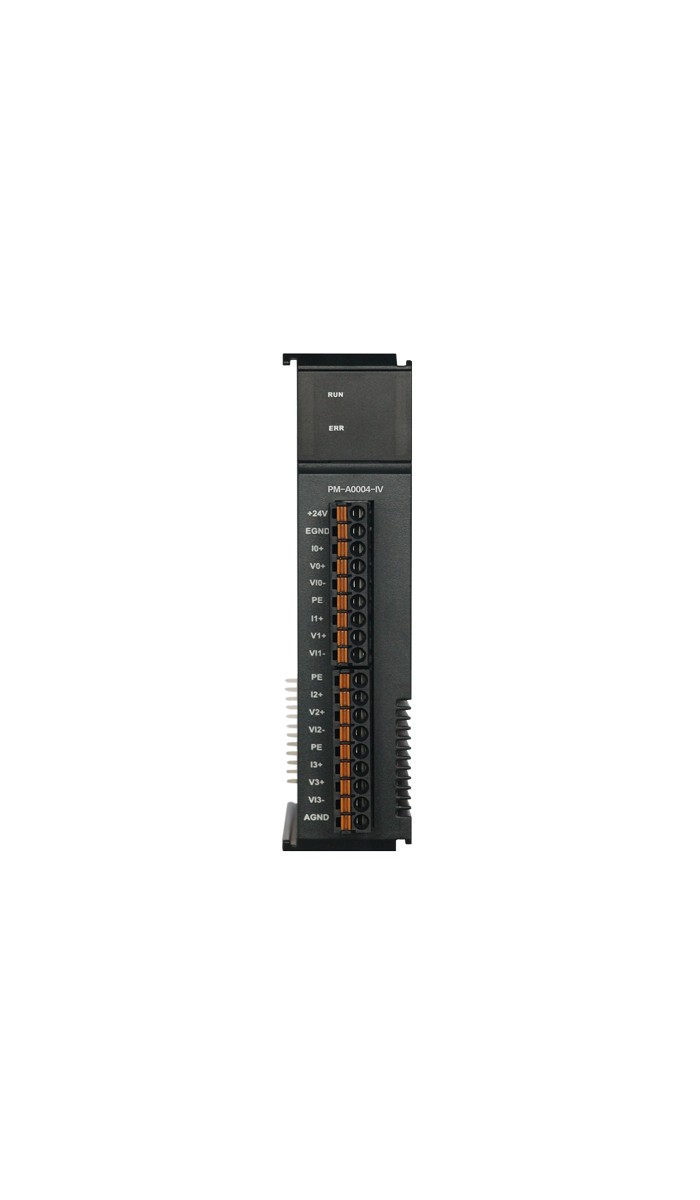

| Model | PM-A0004-IV Analog Output Module |
| Channel | 4 |
| Output Type | Voltage/Current |
| Output | 1V~5V : 0~32000 -5V~5V : -32000~32000 0V~10V : 0~32000 -10V~10V : -32000~32000 4mA~20mA : 0~32000 0mA~20mA : 0~32000 |
| Resolution | 16 bit |
| Precision | Voltage±0.1%;Current±0.2%（25°C) Voltage±0.2%;Current±0.3%（0-55°C) |
| Response Time | 1ms per 4 channels |
| Output Protection | Overcurrent, Reversed polarity |
| Output Resistance | Voltage output resistance: 1k-1MΩ; Current sampling resistance: 100-500Ω |
| Terminal | Push-in |
| Dimension | 111.92*25.9*101.5mm |
| Installation | Standard DIN rail |
| Others | Indicator LEDs : RUN(Green)/ERR(Red) |

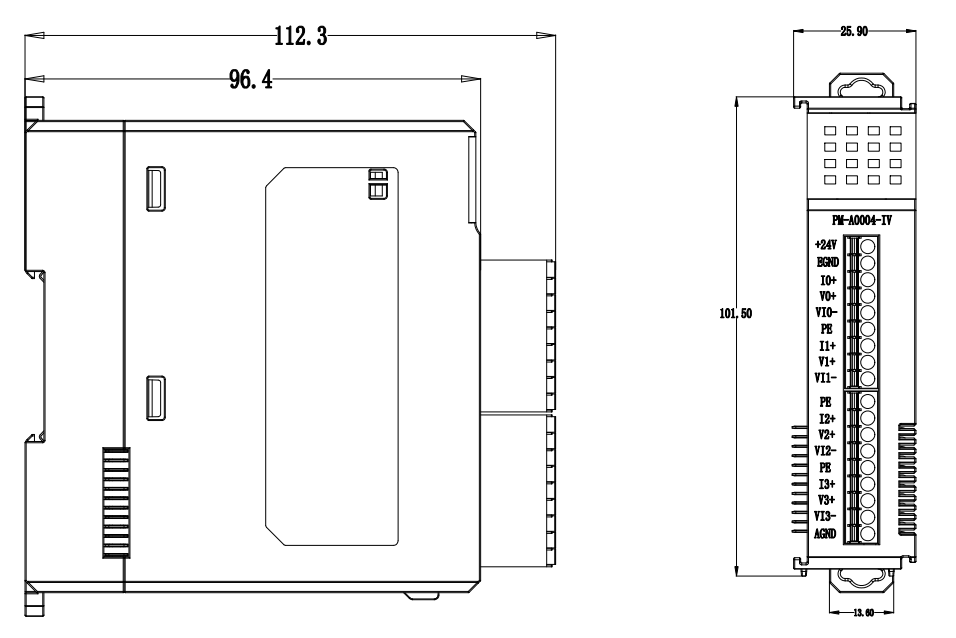

2D Drawing (PDF): R2 PM-A0004-IV
3D drawing download (LeadShine Website): Click here
Manual Download (LeadShine Website): Click here
Software Download (LeadShine Website): Click here
R2 Series Certification: CE Certification for R2 series modules
