Description
A high quality planetary gearbox reducer 5:1 made for 80mm frame size servos.

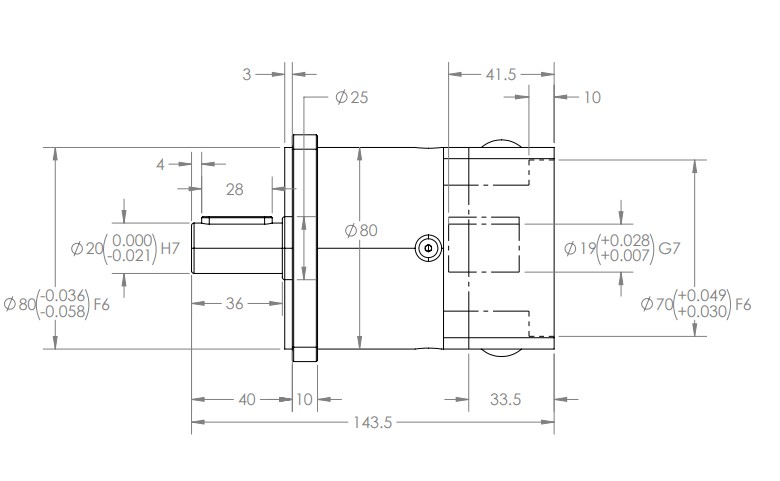

See PDF for dimensions and ratio specific torque ratings: PLF80 gearboxes PDF
Rated Input Speed 3000 rpm
Max Input Speed 5000 rpm
Backlash <7 arcmin
Transmission Efficiency 97%
Service Life 20000 Hrs
Noise 72 dB
Envirmental
Temperature -20°C / +90°C
Inertia 0.47 Kg/cm²
Weight 2.1 Kg
Torsional Rigidity 12 Nm/arcmin
