400w integrated servo motor – iSV2-RS6040V48H – LeadShine

$489

6 in stock (can be backordered)

SKU: iSV2-RS6040V48H Category:

Description

We have implemented about 80 of these servo motors in the last few years,  they are a great, easy to use, reliable servo with so many features!

This Leadshine iSV2-RS6040V48H is a 60mm integrated servo motor.

At a very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable connections, reduce interference, and reduce system cost.

● Main power voltage: 24-60VDC. Rated voltage: 48VDC

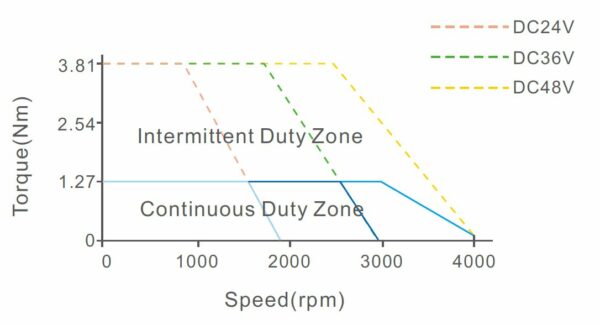

● Rated power: 400W. Rated torque: 1.27N.m. With intermittent 300% overload capacity!

● 17 bit incremental magnetic encoder

● Pulse+Direction

● Modbus RTU over RS485. Build-In 16 PR paths

● Dip switch for node ID, baud rate and terminating resistor settings

● RS-232 serial interface for easy tuning with Motion Studio

Model iSV2-RS6040V48H
Frame size (mm) 60
Rated power (W) 400
Rated voltage (VDC) 48
Rated torque (Nm) 1.27
Rated current (Arms) 10
Rated speed (r/min) 3000
Peak torque (Nm) 3.81
Maximum current (Arms) 28
Maximum speed (r/min) 4000
Encoder 17   bit incremental magnetic encoder
Weight (kg) 1.26
Protection class IP20
Communication Modbus RTU

60mm integrated servo motor certification: iSV2_CE-EMC_CERTIFICATE

2D Drawing download: iSV2-RS 400W

3D drawing download (LeadShine Website): Click here

Manual Download (LeadShine Website): Click here

Software Download (LeadShine Website): Click here

Additional information

Weight 1.33 kg
Dimensions 200 × 75 × 100 mm
