Description

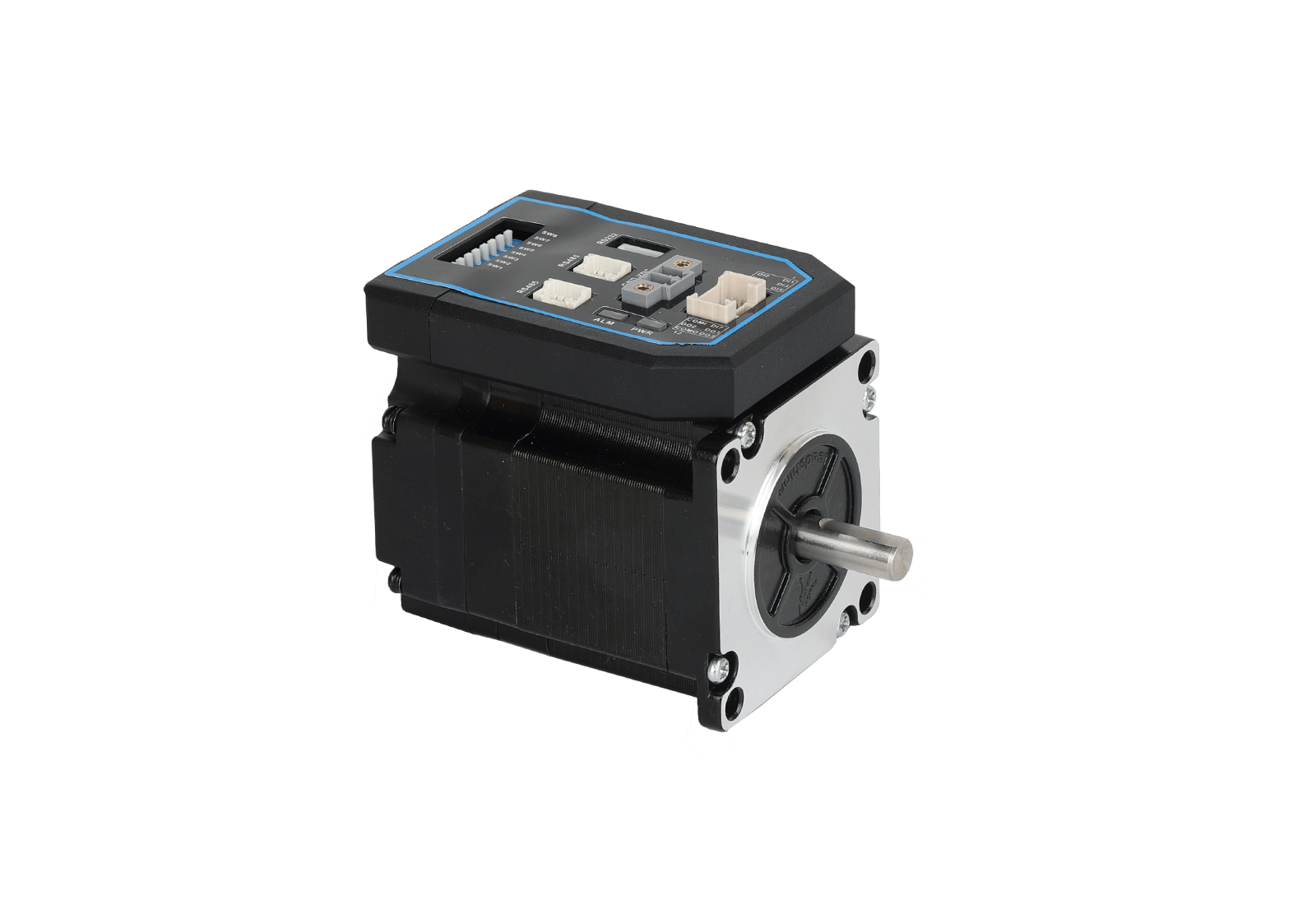

iCS series is integrated closed-loop stepper motor with 14-bit single-turn absolute encoder for smooth and jitter-free motor start-up.
iCS series motors support Modbus RS485 communication with Indexer control function. With a more compact design, it is especially suitable for applications with strict mounting space requirements.
● NEMA17, 0.8N.m
● 14-bit single-turn increment encoder
● Support Modbus RTU protocol, internal 16-segment position commands
● Motion can be started by external I/O or RS485 or HMI
● Support operation modes: profile position, profile velocity, homing
● 7 configurable digital inputs, 3 optically isolated digital outputs

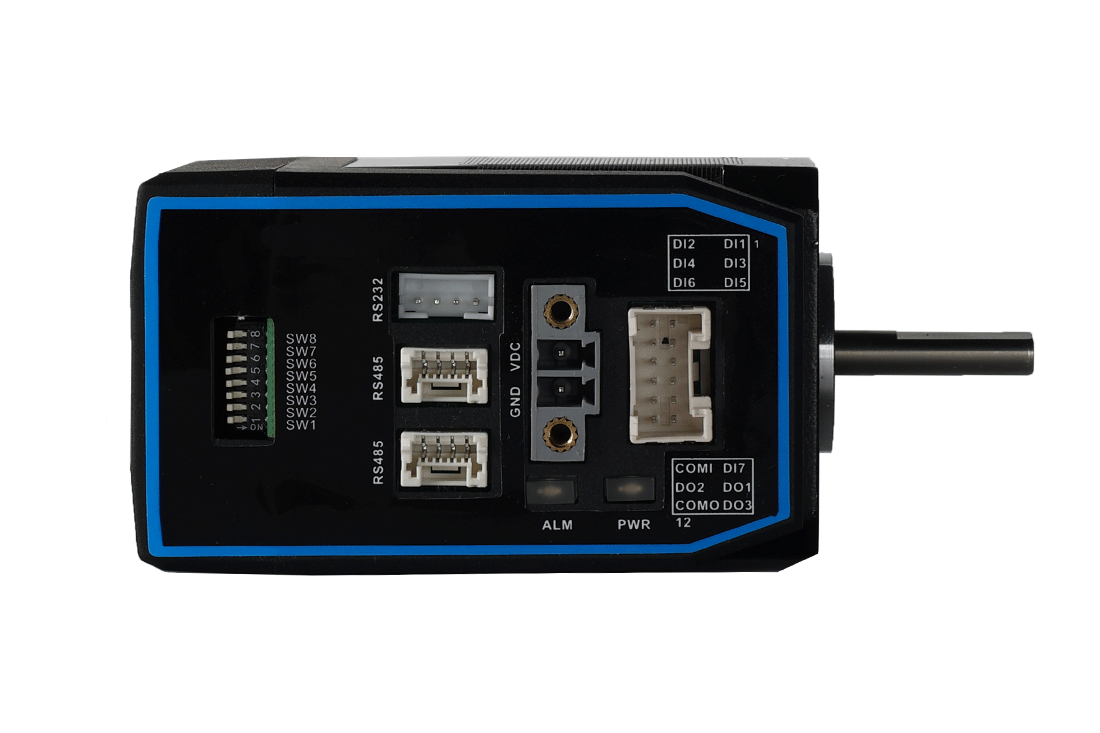

● RS232 port for Leadshine software connection, RS485 port for motion control
● Over voltage, over current, position following error, etc. protections
| Model | iCS-RS1708 |
| Series | iCS-RS |
| Frame Size (NEMA) | NEMA17 |
| Length (mm) | 86 |

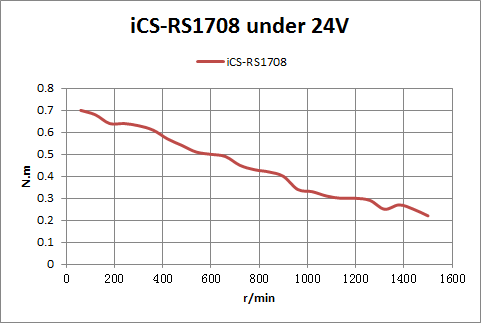

| Holding Torque (N.m) | 0.8 |
| Command Source | Modbus-RTU |
| Operation Voltage (VDC) | 24 |
| Input Frequency (KHz, Max.) | 10 |
| Logical Voltage (VDC) | 12 -24 |
| # of Inputs | 3 |
| # of Outputs | 1 |

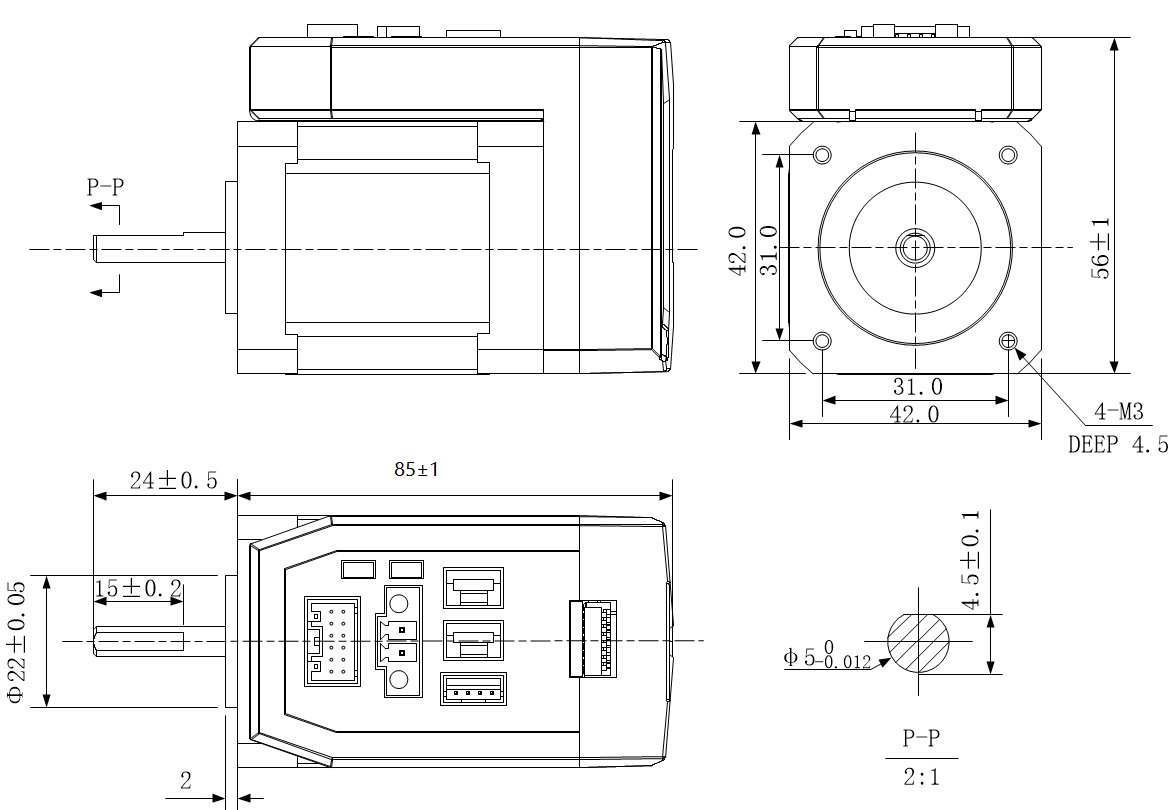

Link to 2D pdf: click here
iCS-RS1708 user manual (Leadshine website): click here
3D model (Leadshine website): click here
