Description

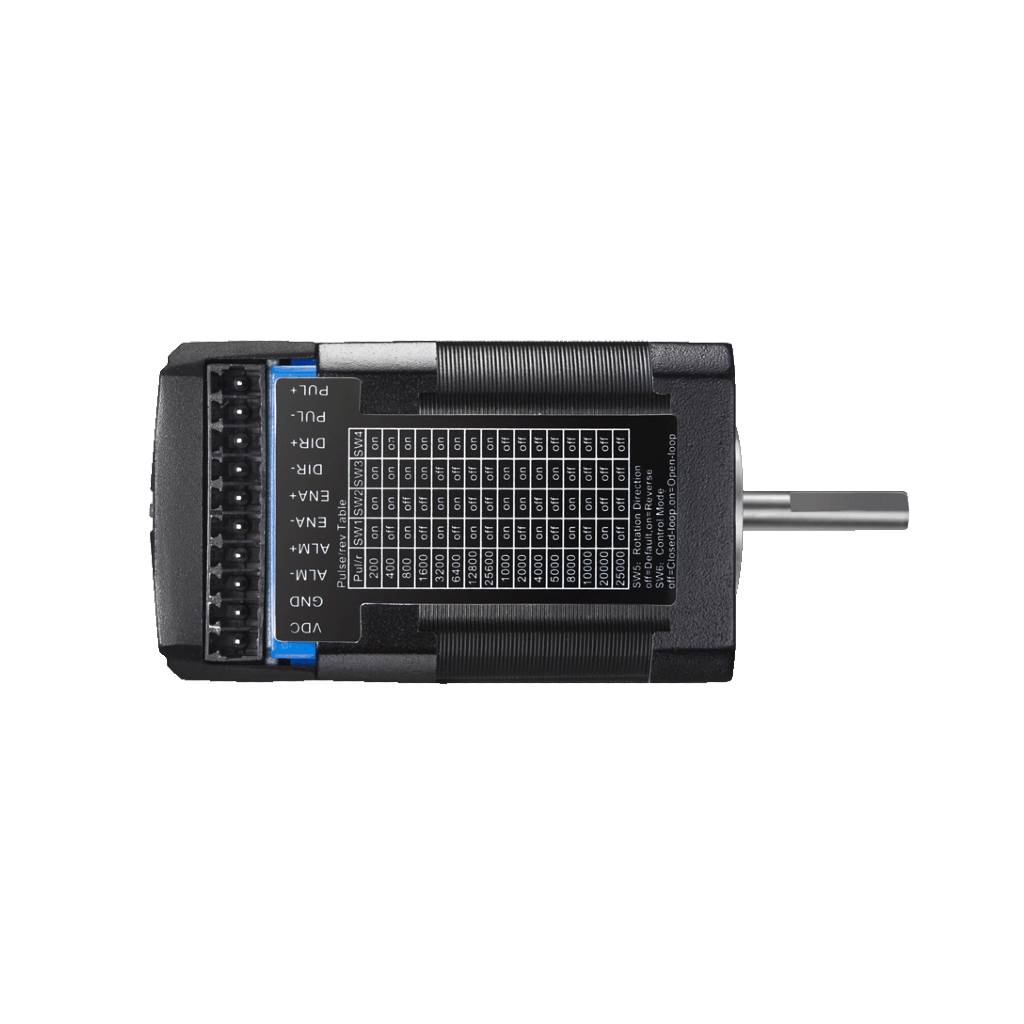

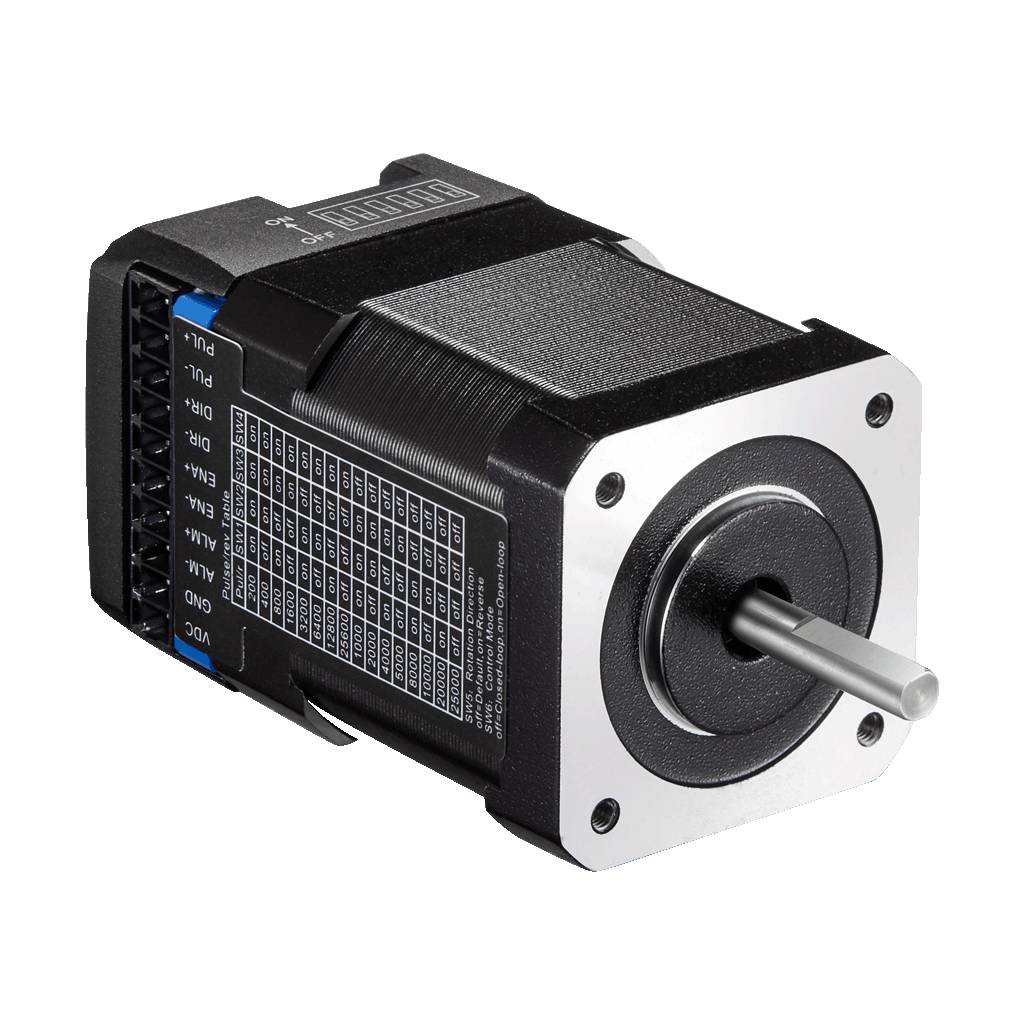

iCS series is integrated closed-loop stepper motor with Leadshine’s latest digital stepper technology.
● NEMA17, 0.8N.m
● Enhance performance, especially at low-speed application (<60RPM)
● Soft-start with no “jump” when powered on
● Pulse & direction (PUL&DIR) or CW&CCW (double pulse) control
● 3 digital inputs, 1 optically isolated digital output
● 14-bit single-turn increment encoder
● RS232 communication for Leadshine software connection
| Model | iCS-1708 |
| Series | iCS |
| Frame Size (NEMA) | NEMA17 |
| Length (mm) | 85 |
| Holding Torque (N.m) | 0.8 |
| Command Source | Pul&Dir |
| Operation Voltage (VDC) | 24 |
| Input Frequency (KHz, Max.) | 200 |
| Logical Voltage (VDC) | 5 |
| # of Inputs | 3 |
| # of Outputs | 1 |
Link to 2D pdf: click here
User manual: click here
3D model (Leadshine website) click here
