Description

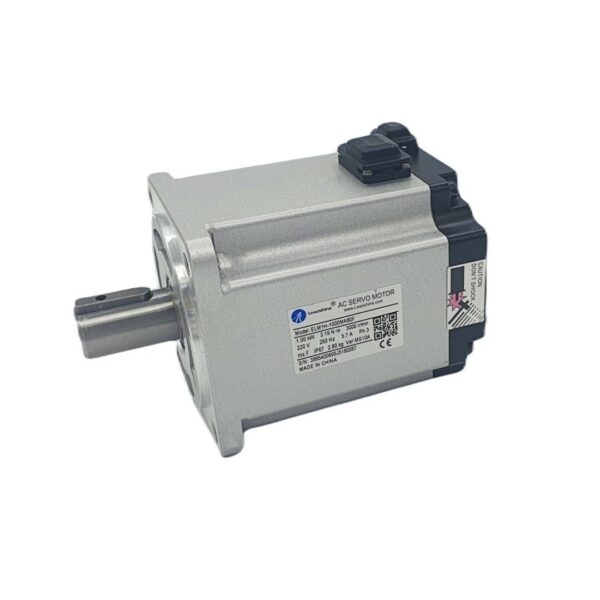

The ELM1H-1000MA80F is a 1000W AC servo motor designed by Leadshine and stocked by Palmer Automation NZ. The servo motors use rare permanent magnet rotors. Features of this product include; high torque density, high peak torque, low noise, low temperature rising and lower current consumption. The AC servo motor is power rated at 1000W and has a power range from 50W to 1000W. Frame sizes can range from 40mm to 80mm, the ELM1H-1000MA80F servo motor has a frame size of 80mm. The AC servo motor incorporates a 23-bit magnetic encoder with a strong overload capacity. This product (ELM1H-1000MA80F) is designed by LeadShine who have the intellectual property rights.
| Model | ELM1H-1000MA80F |
| Frame Size (mm) | 80 |
| Rated Voltage (Vac) | 220 |
| Rated Power (W) | 1000 |
| Rated Torque (N.m) | 3.18 |
| Peak Torque (N.m) | 9.54 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 5000 |
| Rated Current (Amp) | 5.7 |
| Peak Current (Amp) | 17.7 |
| Torque Constant (N.m/Amp) | 0.56 |
| Back EMF Constant (V/krpm) | 38.3 |
| Resistance (Ω) | 1.08 |
| Inductance (mH) | 5.6 |
| Inertia (kg*m2*10-4) | 2.0 |
| Poles | 10 |
| Encoder Type | 23bit magnetic |
| IP Rating | IP67 |
| Weight (Kg) | 2.8 |
Servo Motor 2D Drawing (PDF): ELM1H-1000MA80F 2D Drawing
Servo Motor 3D drawing download (LeadShine Website): Click here
CE EMC Certification: ELM1&2_80_Series_CE_EMC_Certification
