Description

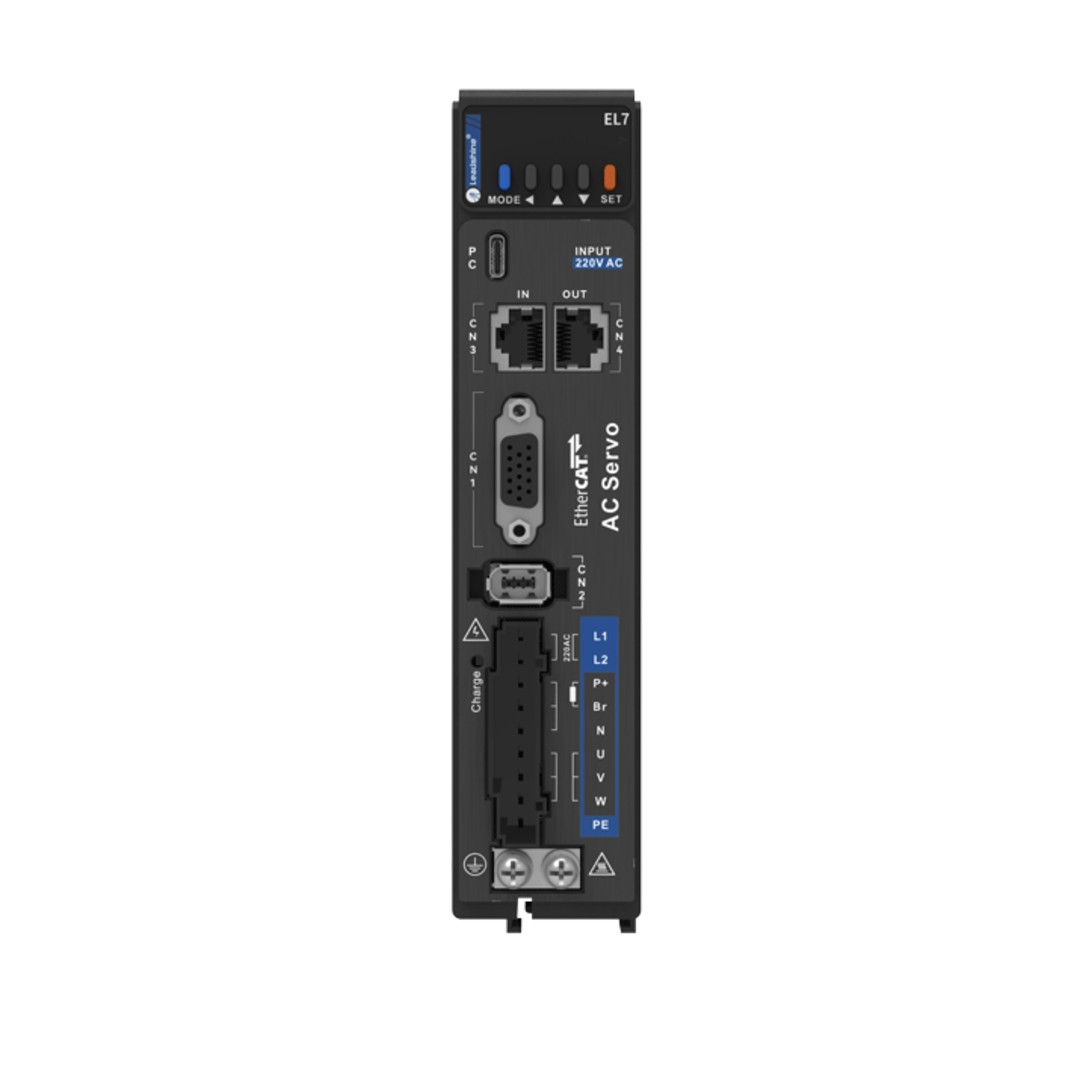

This product is the 400W servo drive in the EL7-EC Series. The AC servo products are high performance 220V 1ph AC digital servo which is designed for position/velocity/torque high accurate control with power rating ranging up to 2.0kW which provides a perfect solution for different applications with easy tuning process. Based on the ETG COE + EtherCAT DSP402 protocol, it can be seamlessly connected to controllers/drives that support this standard protocol.
EL7-EC series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM) with compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control.
- Servo drive with power rating from 400W to 2000W
- User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input DB15 I/O port
- USB Type-C tuning port, stable and easy to get
- Equipped with internal regenerative resistor
- Position, velocity and torque loop control
- Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
- Safety functions such as Safe Torque Off (STO) not SIL3 certified. Please use EL8 models if this is important
- Matching motors with power rating from 30W to 400W
- Motors with 23-bit magnetic/optical encoders
- Optional holding brake
| Model | EL7-EC400N |
| Input Voltage | 220VAC 1ph |
| Rated Power (W) | 400 |
| Rated Current (Arms) | 3.5 |
| Peak Current (Arms) | 10.5 |
| Command Source | EtherCAT |
| Number of Inputs | 4 |
| Number of Outputs | 3 |
| STO | Not SIL3 certified. Please use EL8 models if this is important |
400W Servo Drive 2D drawing: EL7-EC400N 2D Drawing
3D drawing download (LeadShine Website): EL7-EC400N 3D Drawing
Software download (LeadShine Website): EL7-EC400N Software
Certification and Manuals download (LeadShine Website): EL7-EC400N
