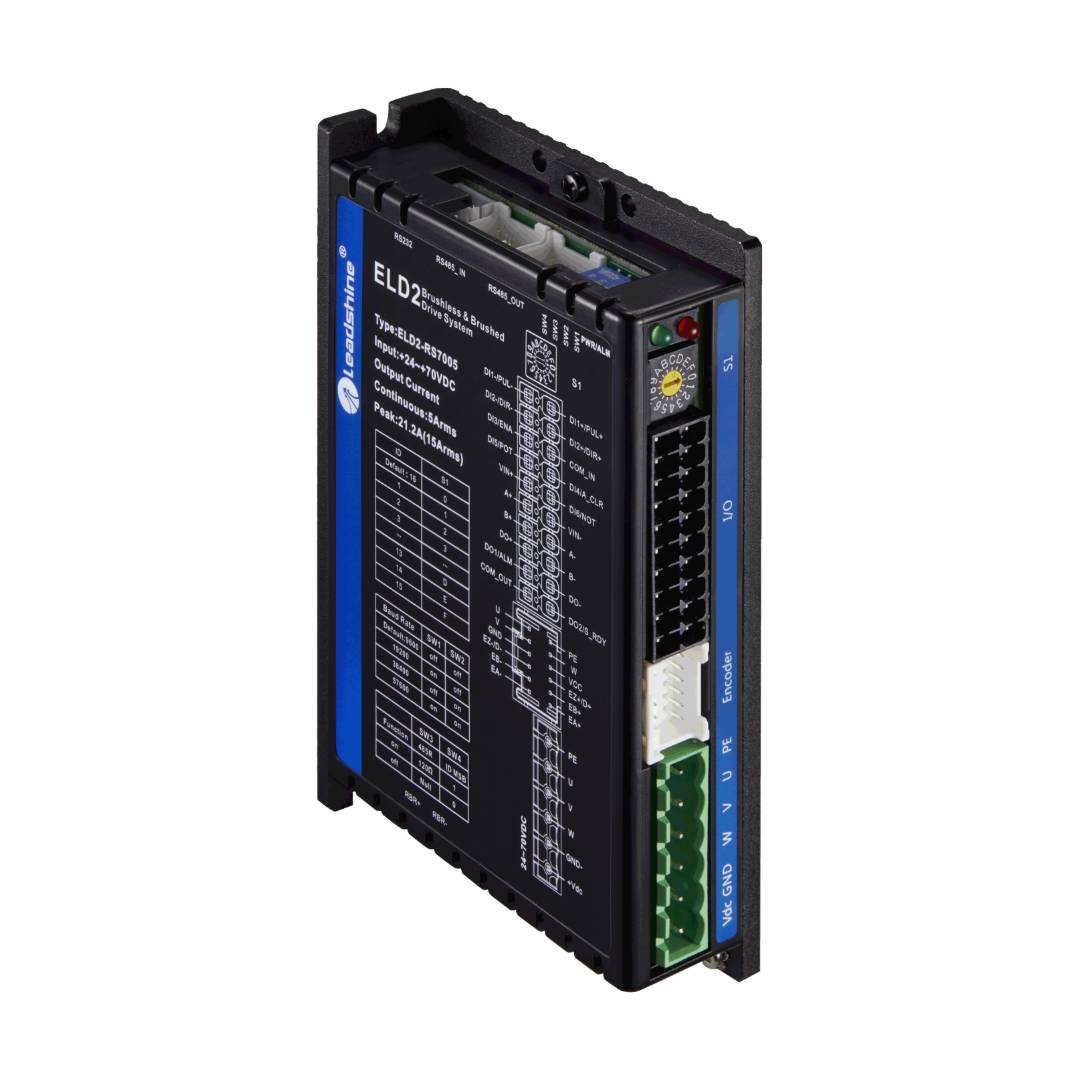

Description
● Main power voltage: 24-70VDC
● Output current: 5Arms continuous; 21A peak
● Pulse+Direction, analog input
● Modbus RTU over RS485. Build-In 16 PR paths
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
| Drive model | ELD2-RS7005 | |
| Size(mm) | 118*79.5*25.5 | |
| Rated power(kW) | 0.1 | |
| Rated current(Arms) | 5 | |
| Peak current(Apeak) | 21.2 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 5Arms （≤48Vdc） | |
| 3.5Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | —— |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | —— | |
| Protection rank | IP20 | |

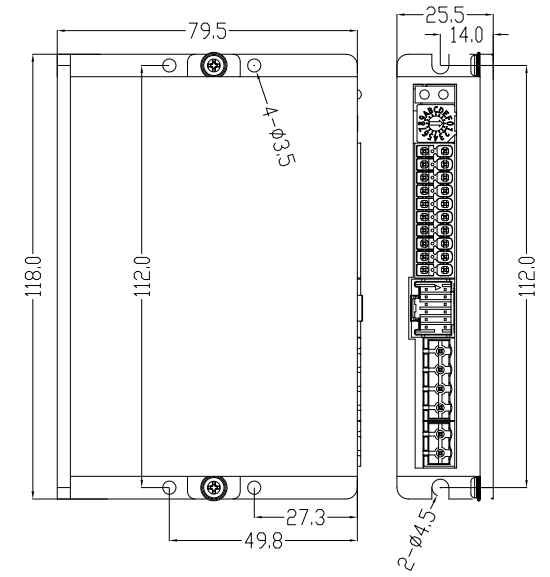

2D Drawing (PDF): ELD2-RS7005
