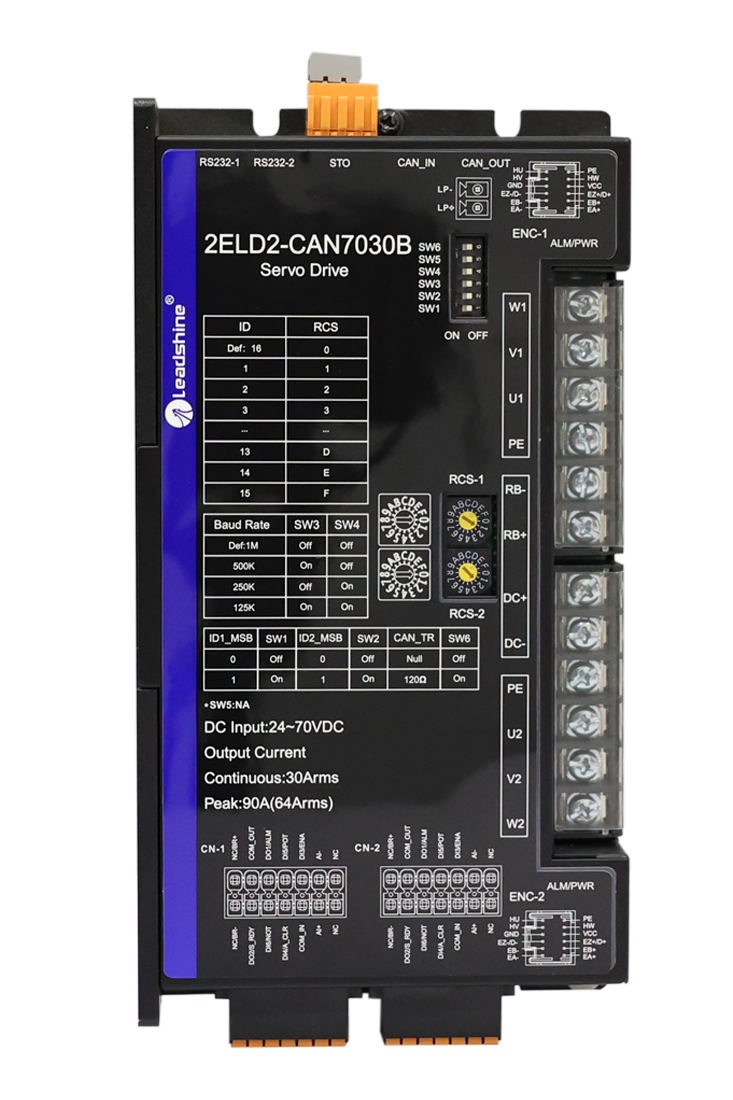

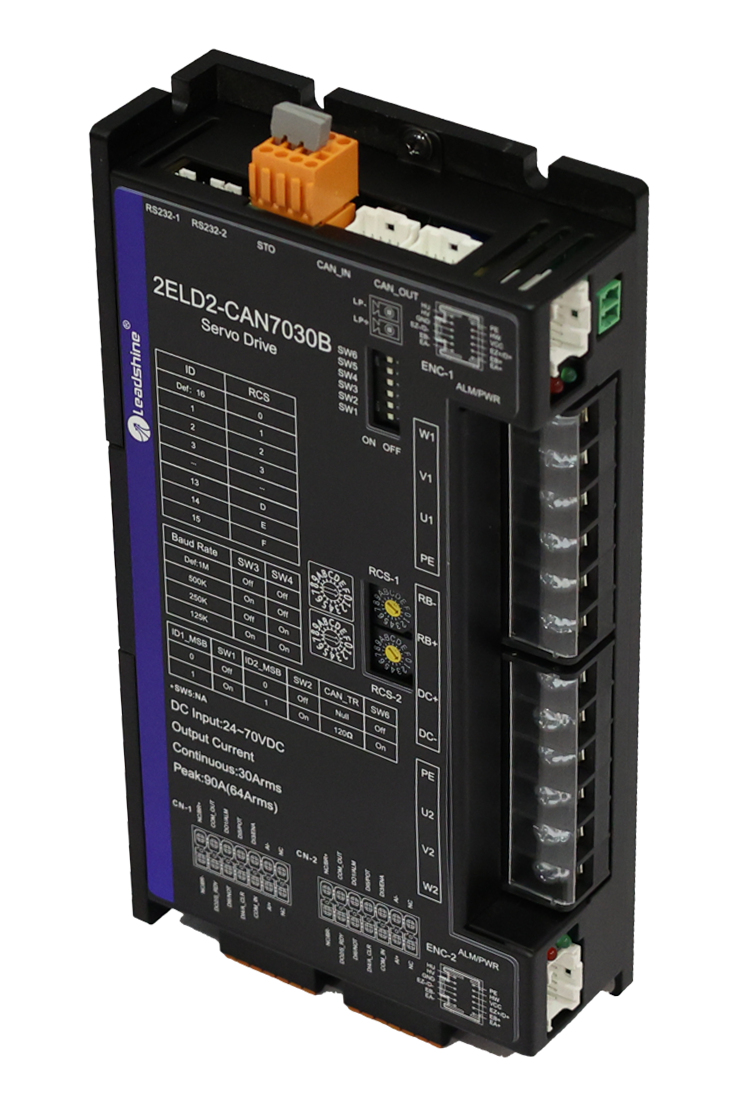

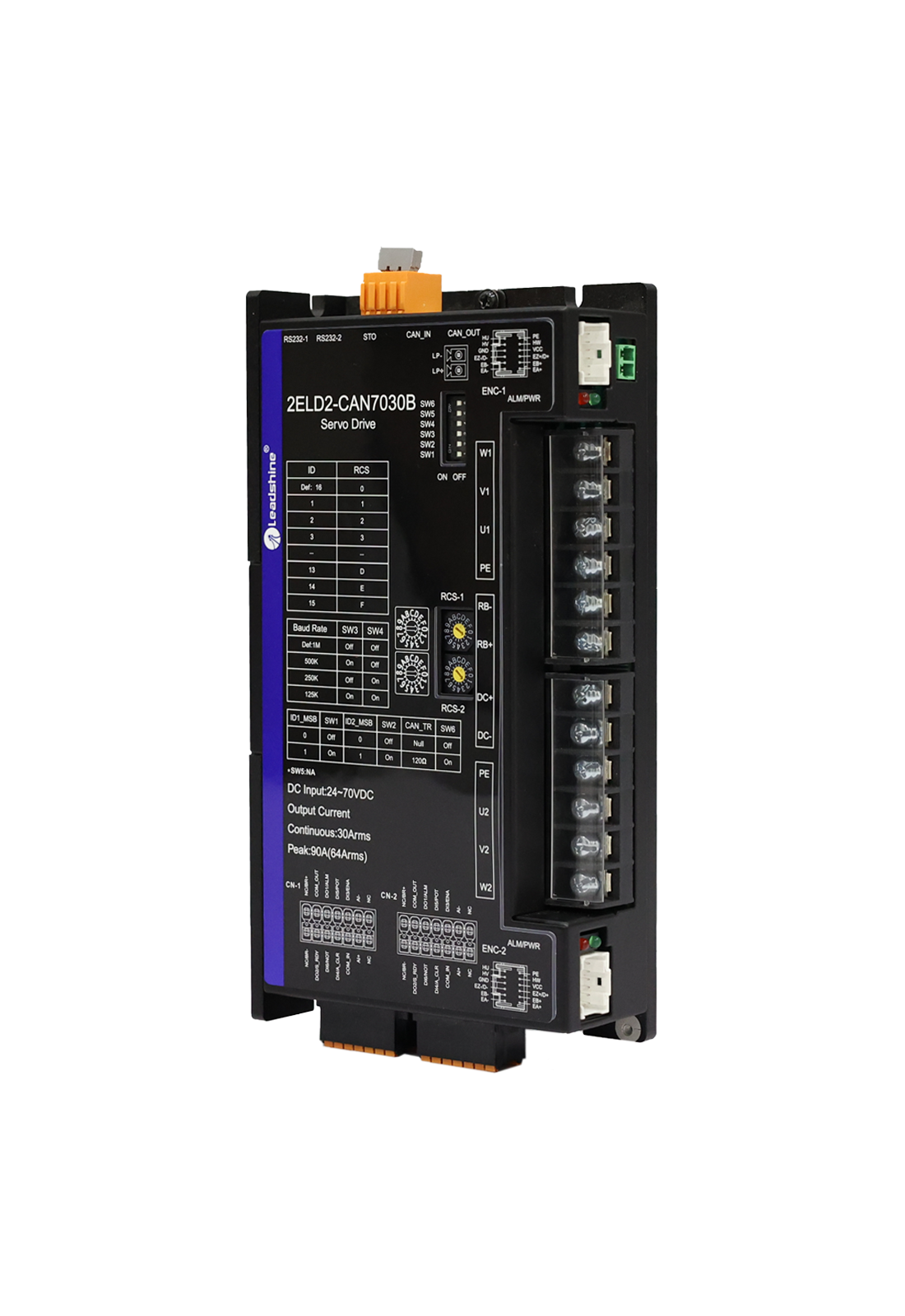

Description
The 2ELD2 series is a new low voltage DC servo drive. Dual-axis, one 2ELD2 drive can drive two DC servo motors at the same time.
2ELD2 series keep the same performance of ELD2 series, relying on the special dual-axis structure, 2ELD2 series achieve less wiring, space saving and energy saving.
● Dual-axis, analog input
● Main power voltage: 24-70VDC. Logic power voltage: 24-70VDC
● Output current: 2 x 30Arms continuous/ 90A peak
● Direct brake output: 24V/1A
● CANopen: CiA301. CiA402. Profile Position/Profile velocity/Profile Torque/Homing
● Dip switch for node ID, baud rate and terminating resistor settings
● STO function safety
● RS-232 serial interface for easy tuning with Motion Studio
| Drive model | 2ELD2-CAN7030B | |
| Size(mm) | 194*103*41 | |
| Rated power(kW) | 1.2*2 | |
| Rated current(Arms) | 30 | |
| Peak current(Apeak) | 90 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 20Arms （≤48Vdc） | |
| 14Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | DC24-70 |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | STO | |
| Protection rank | IP20 | |

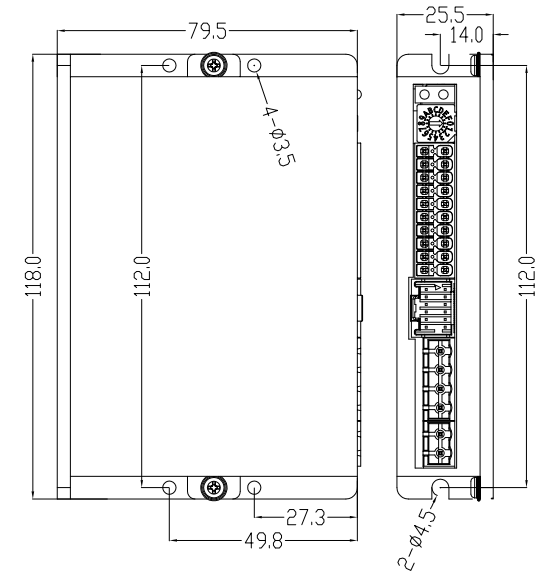

2D Drawing (PDF): 2ELD2-CAN7030B
3D drawing download (LeadShine Website): Click here
Manual Download (LeadShine Website): Click here
Software Download (LeadShine Website): Click here
