Description

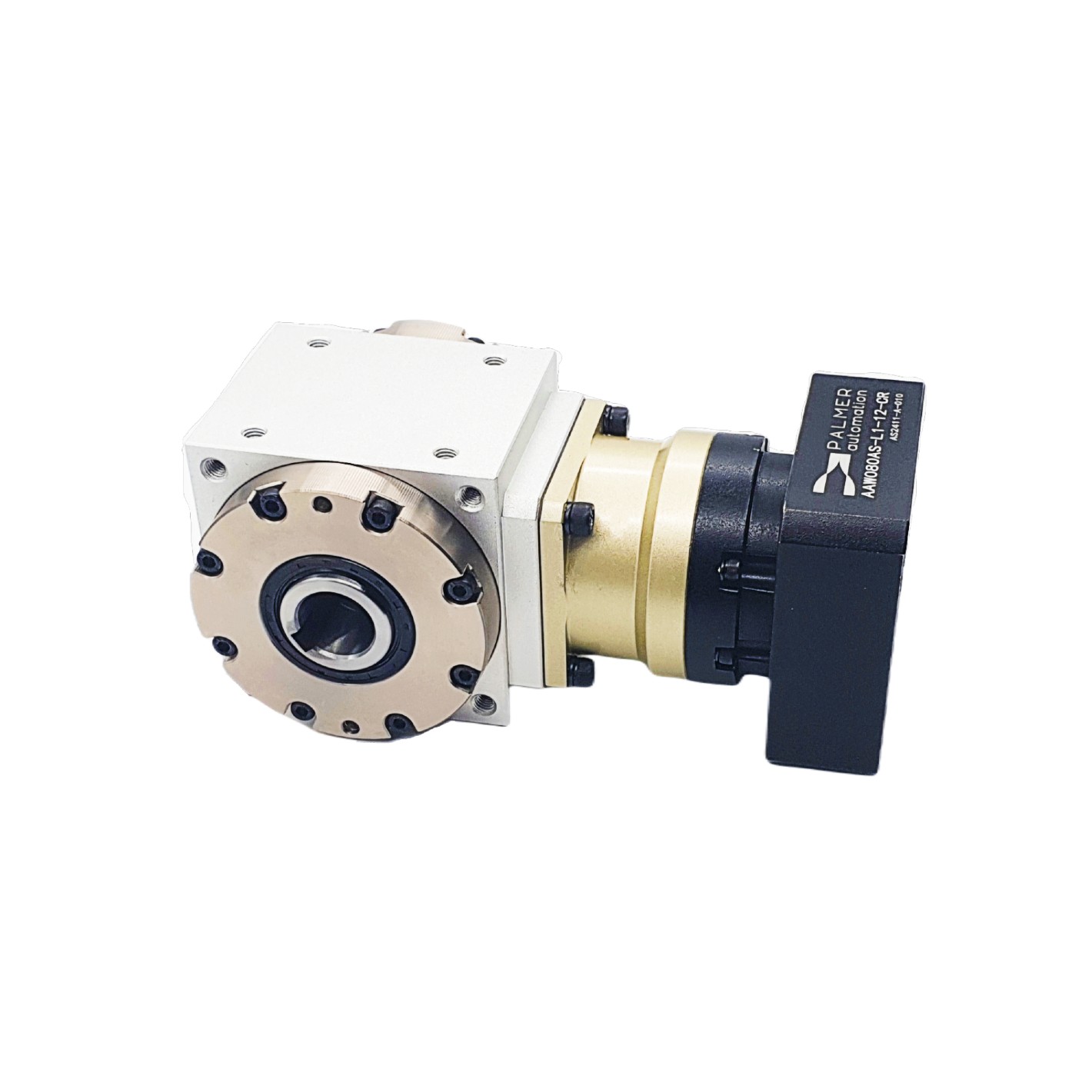

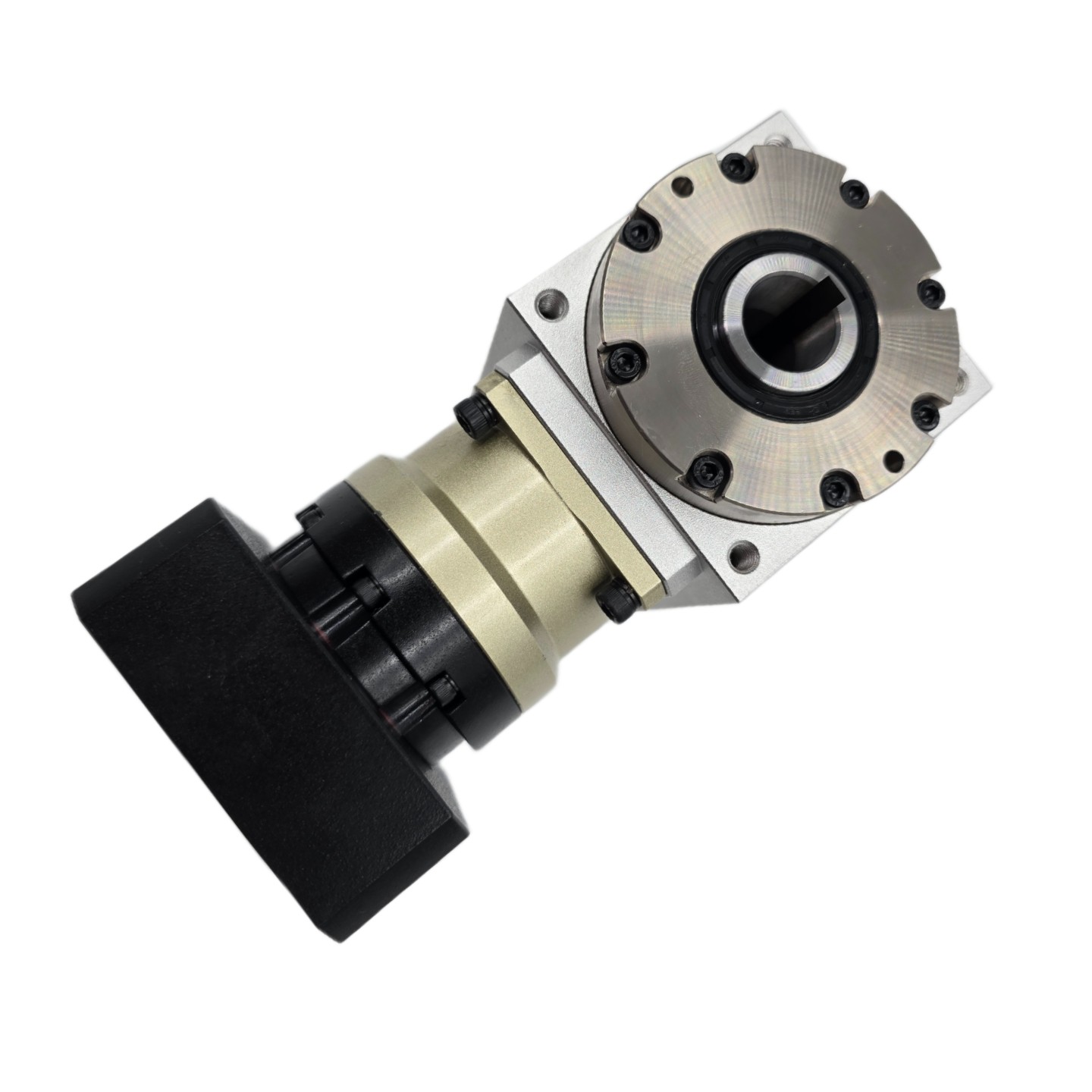

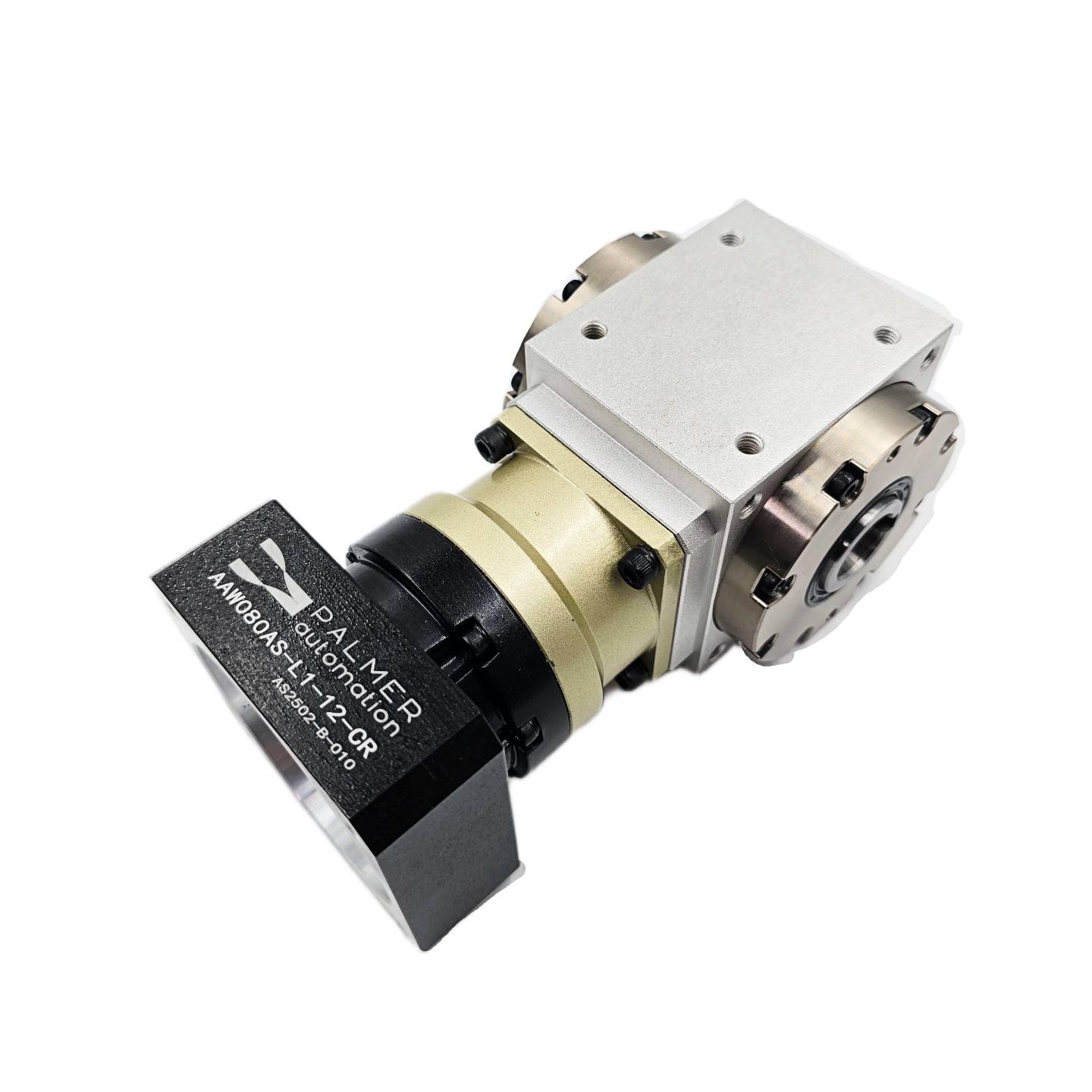

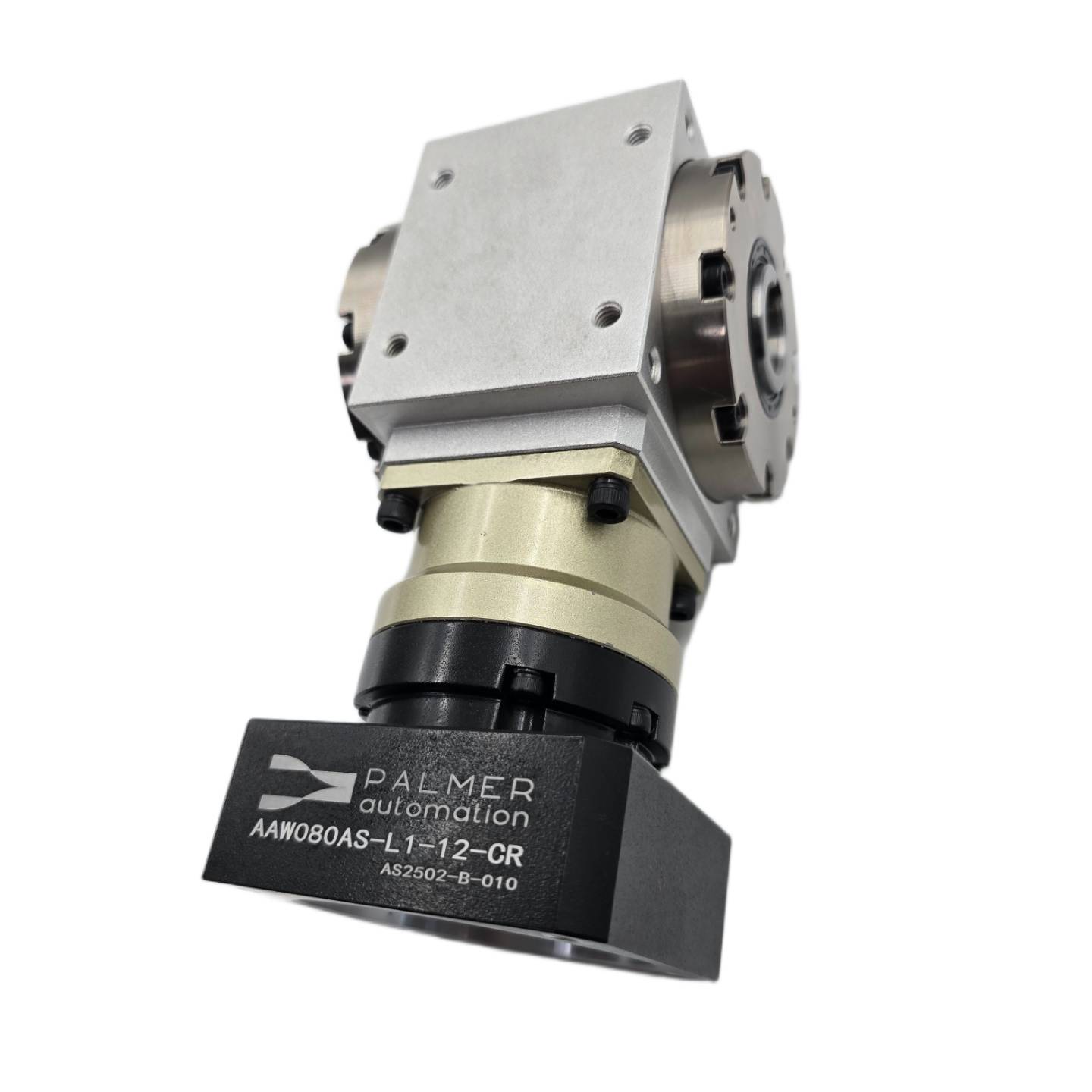

AAW corner planetary reducer is widely used within applications requiring high precision and reliability, such as; mechanical manufacturing, automation and transportation. (Old part number was AAW-080AS-L1-*-CR)
This gearbox is design to fit all our 80mm framed servo motors.

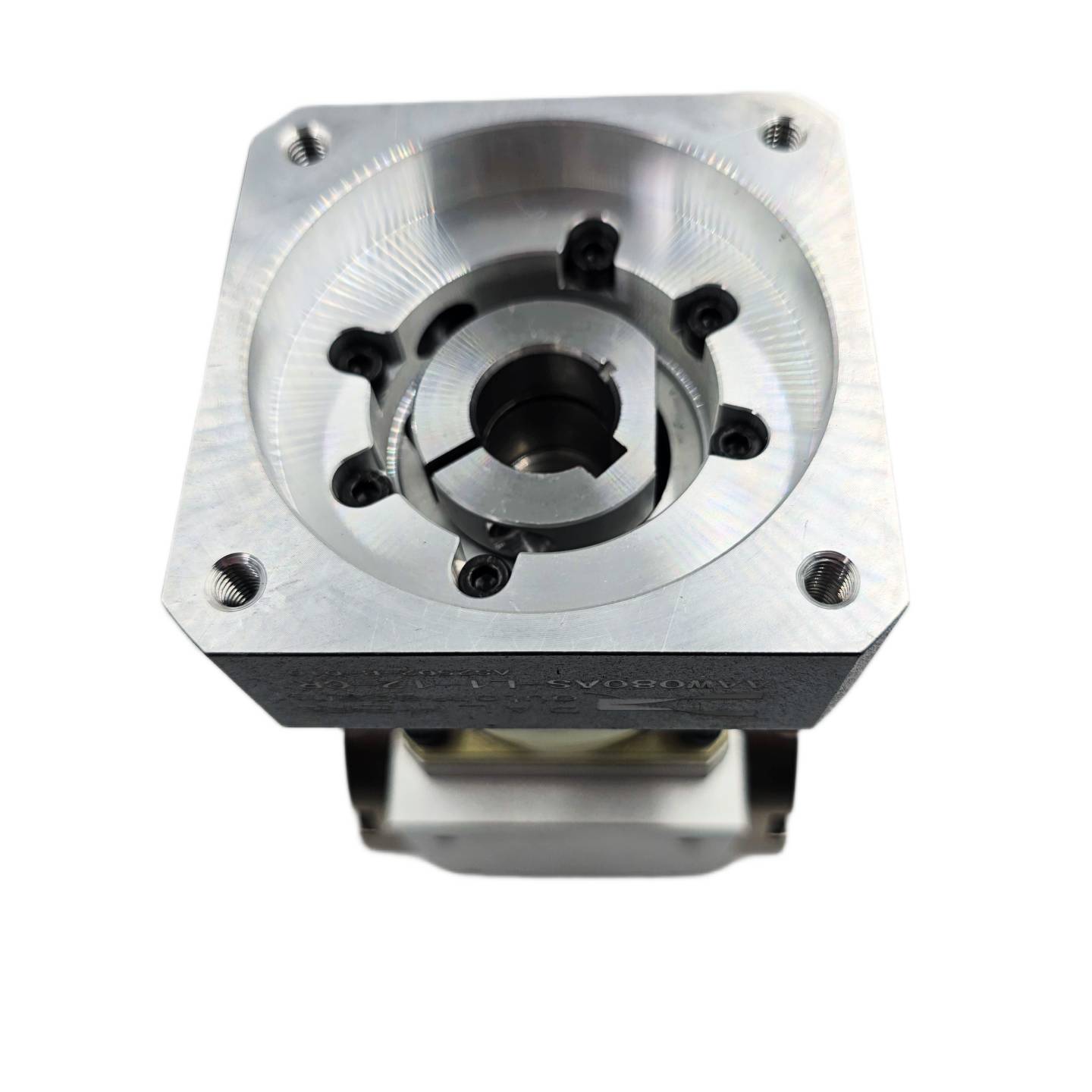

Designed for 19mm servo input shaft,
Designed to fit 20mm output shaft.
Advantages of the AAW-CR keyway precision input hollow shaft with planetary right-angle reducer:
- Compact structure
- High efficiency
- High rigidity
- Ability to withstand high loads
Basic specifications:
- Maximum acceleration torque: 2.5 times rated torque
- Rated input speed: 3,000 rpm
- Allowable radial force: 3,900 Nm
- Allowable axial force: 3,900 N
- Return clearance: ≤10 arcmin
- Service life: >20,000 h
- Operating temperature: -10°C ~ 80°C
Ratio Dependant Specifications:
| Ratio | Rated torque | Peak Torque |
| 6:1 | 55 | 137 |
| 8:1 | 50 | 125 |
| 12:1 | 78.5 | 196 |
| 20:! | 40 | 100 |
Applications:
- Robotics
- Agri-tech
- Autonomous Vehicles
- Conveyors
- Actuators
- Chain drives
