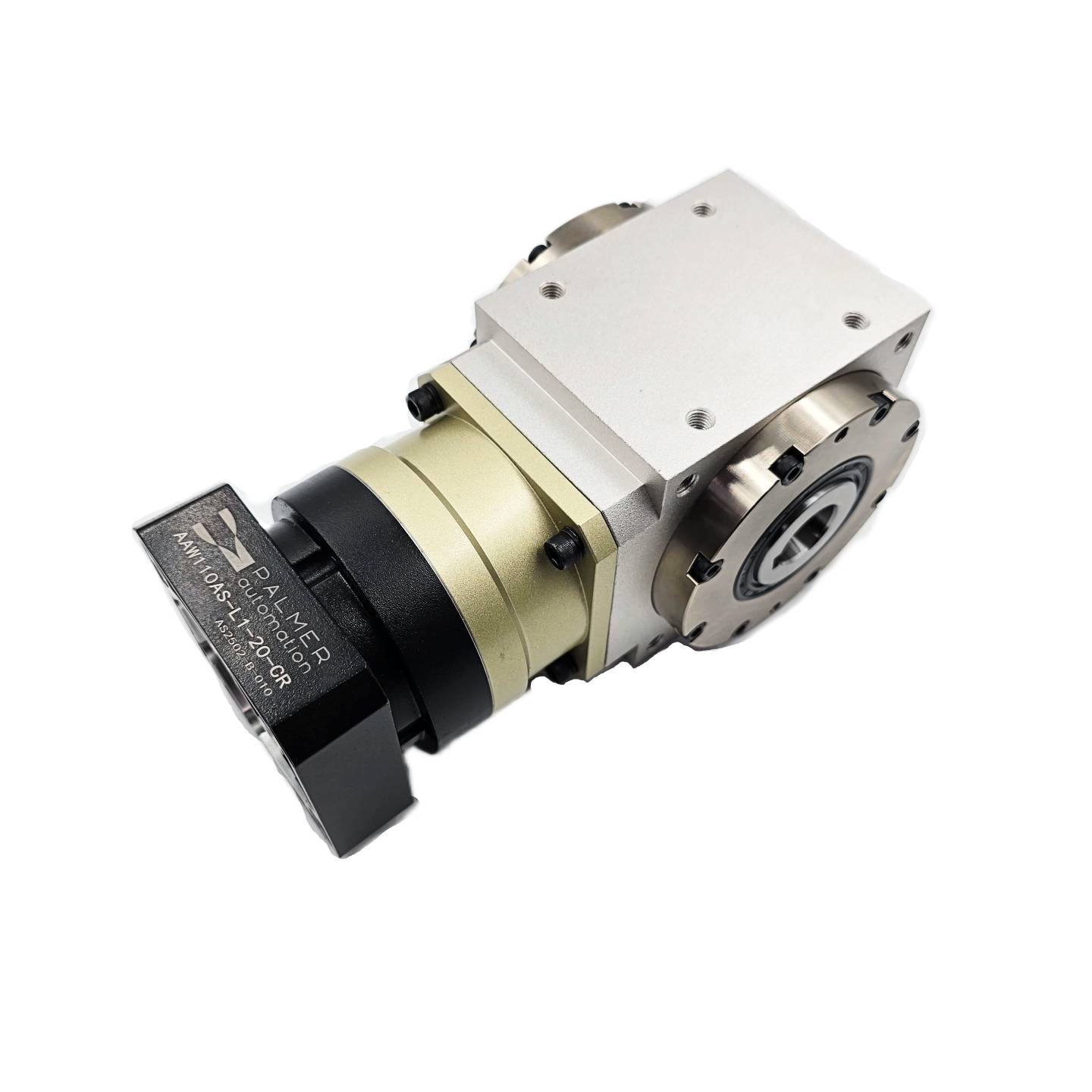

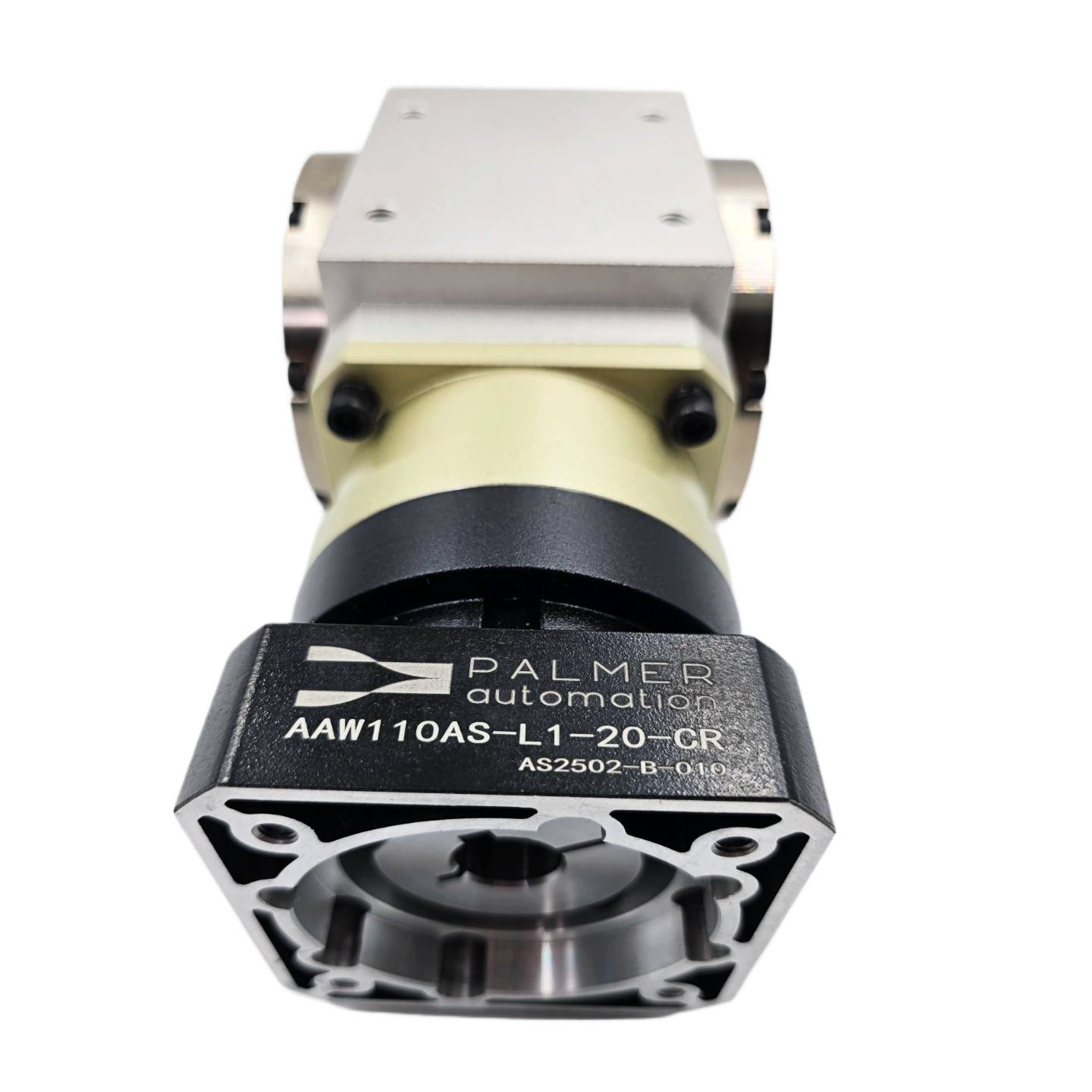

AAW-110AS-L1-20-CR Precision 90 Degree Reducer

$1,224

2 in stock

Category:

Description

AAW corner planetary reducer is widely used within applications requiring high precision and reliability, such as; mechanical manufacturing, automation and transportation.

This gearbox is design to fit all our 60mm framed servo motors.

Designed for 19mm servo input shaft,
Designed to fit 25mm output shaft.

Advantages of the AAW-CR keyway precision input hollow shaft with planetary right-angle reducer:

  • Compact structure
  • High efficiency
  • High rigidity
  • Ability to withstand high loads

Basic specifications:

  • Reduction ratio: 1:20
  • Rated output torque: 130 N.m
  • Maximum acceleration torque: 1.5 times rated torque
  • Rated input speed: 3,000 rpm
  • Allowable radial force: 5,500 Nm
  • Allowable axial force: 5,500N
  • Return clearance: ≤12 arcmin
  • Service life: >20,000 h
  • Operating temperature: -10°C ~ 80°C

Applications:

  • Robotics
  • Agri-tech
  • Autonomous Vehicles / tractors
  • Conveyors
  • Actuators
  • Chain drives
