Description
EL8-RS Series AC Servo Product is a whole new high-end AC servo driver and motors product range that we have proudly developed at Leadshine Technology Co.,Ltd. Power rating of 450W up to 2000W with matching servo motors from 50W up to 2000W.
EL8-RS Series AC Servo Drives support Modbus RS485 communication protocol. This servo drive series can be controlled using analogue input signal, pulse command input and RS485 communication.
Our new EL8-RS Series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning), better auto gain adjustments, vibration suppression and many more. We have not only upgraded the existing functionalities but also added in new features such as Gantry synchronization, full closed loop control and black box.
Features include; dynamic braking and internal holding brake which comes with internal regenerative resistor. The EL8-EC drivers also come with Safe Torque Off (STO) function, Gantry synchronization, Full Closed Loop functionalities and much more.
- Servo drives with power rating from 400W to 1000W
- User-configurable I/Os: 10 DI, 6 DO, 3 AI, 2 AO
- Equipped with internal regenerative resistor and direct drive holding brake
- Position, velocity, torque and hybrid control
- New servo functions including Zero Tracking Control (ZTC), Position comparison, Black box, 1-click/1-parameter easy tunings
- Safety functions such as Safe Torque Off (STO) with SIL3 grading
- Matching motors with power rating from 50W to 1000W
- Motors with 23-bit magnetic/optical encoders
- Optional holding brake

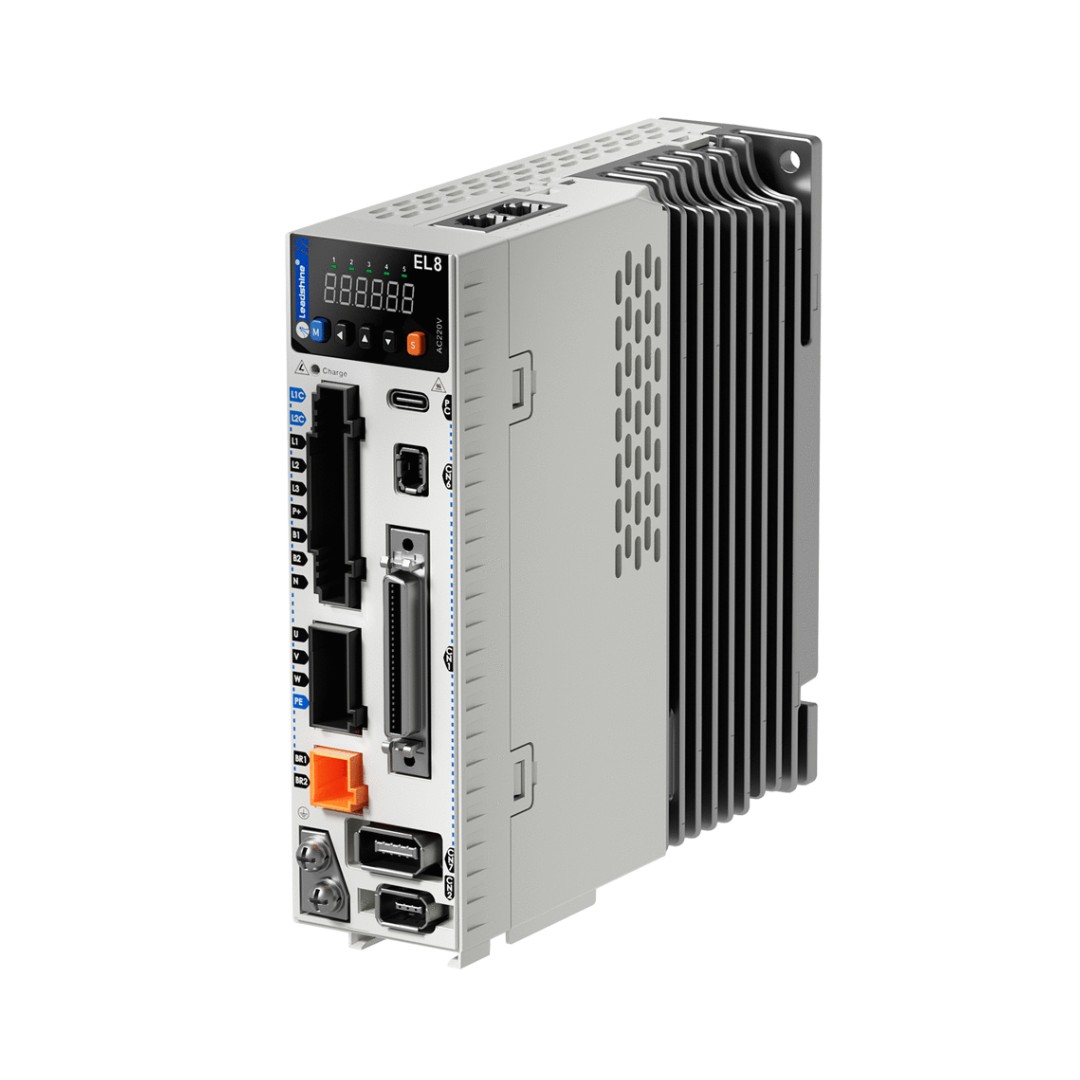

| Model | EL8-RS750F |
| Input Voltage | 1ph/3ph 220VAC |
| Rated Power (W) | 750 |
| Rated Current (Arms) | 5.5 |
| Peak Current (Arms) | 16.9 |
| Command Source | Modbus RTU/Pulse+Direction/Analogue |
| # of Digital Inputs | 10 |
| # of Digital Outputs | 6 |
| # of Analog Inputs | 3 |
| # of Analog Outputs | 2 |

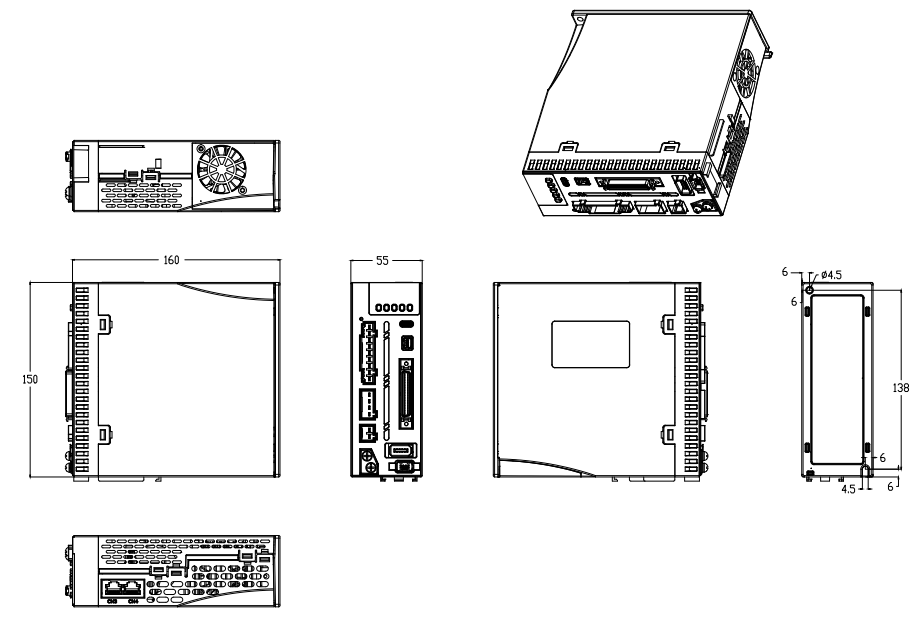

2D Drawing (PDF): EL8-RS750F 2D Drawing
3D drawing download (LeadShine Website): Click here
Manual Download (LeadShine Website): Click here
Software Download (LeadShine Website): Click here
EL8 Series Certification: CE EMC Certification – EL8 Series (400_750_1000W).pdf
EL8 Series Certification: EL8 Series Safe Torque Off (STO) SIL3 Certification
