Description

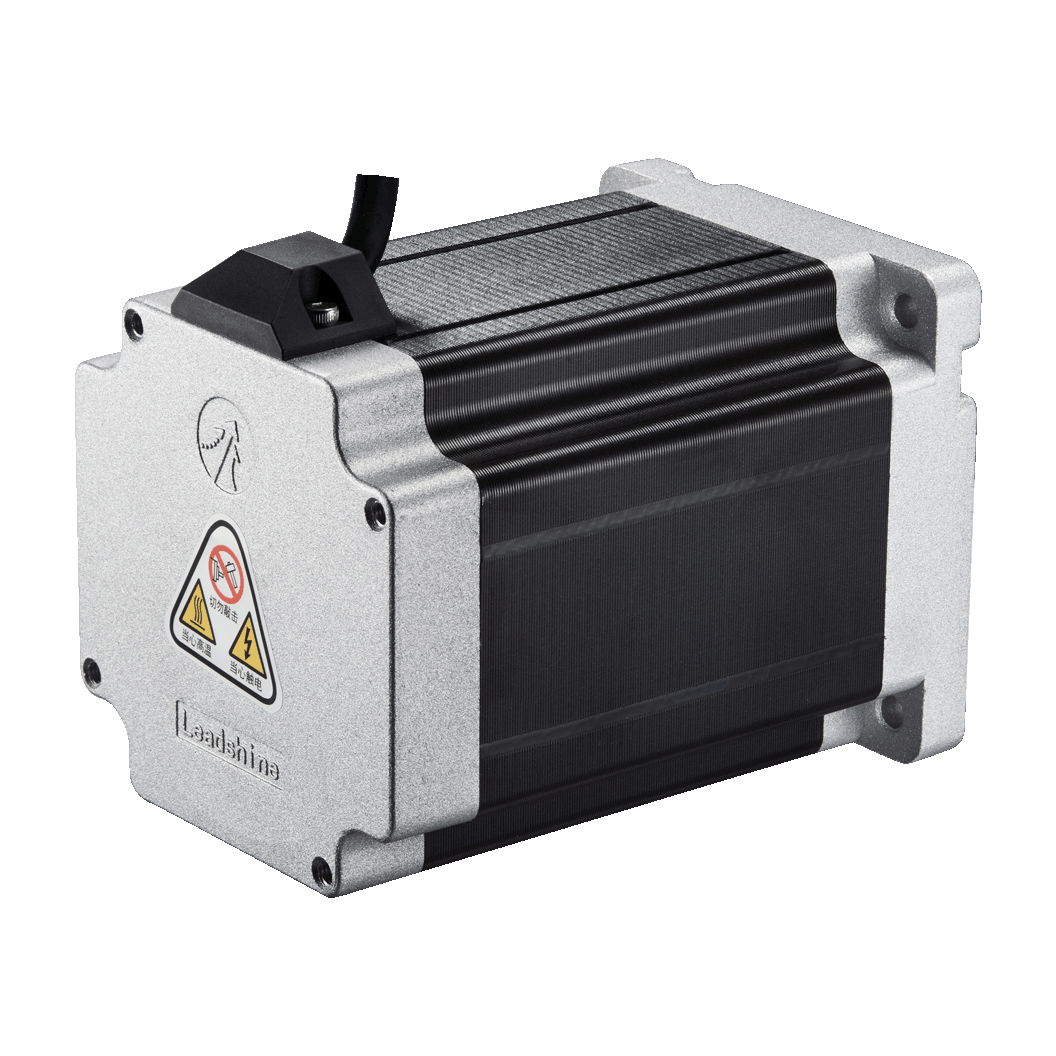

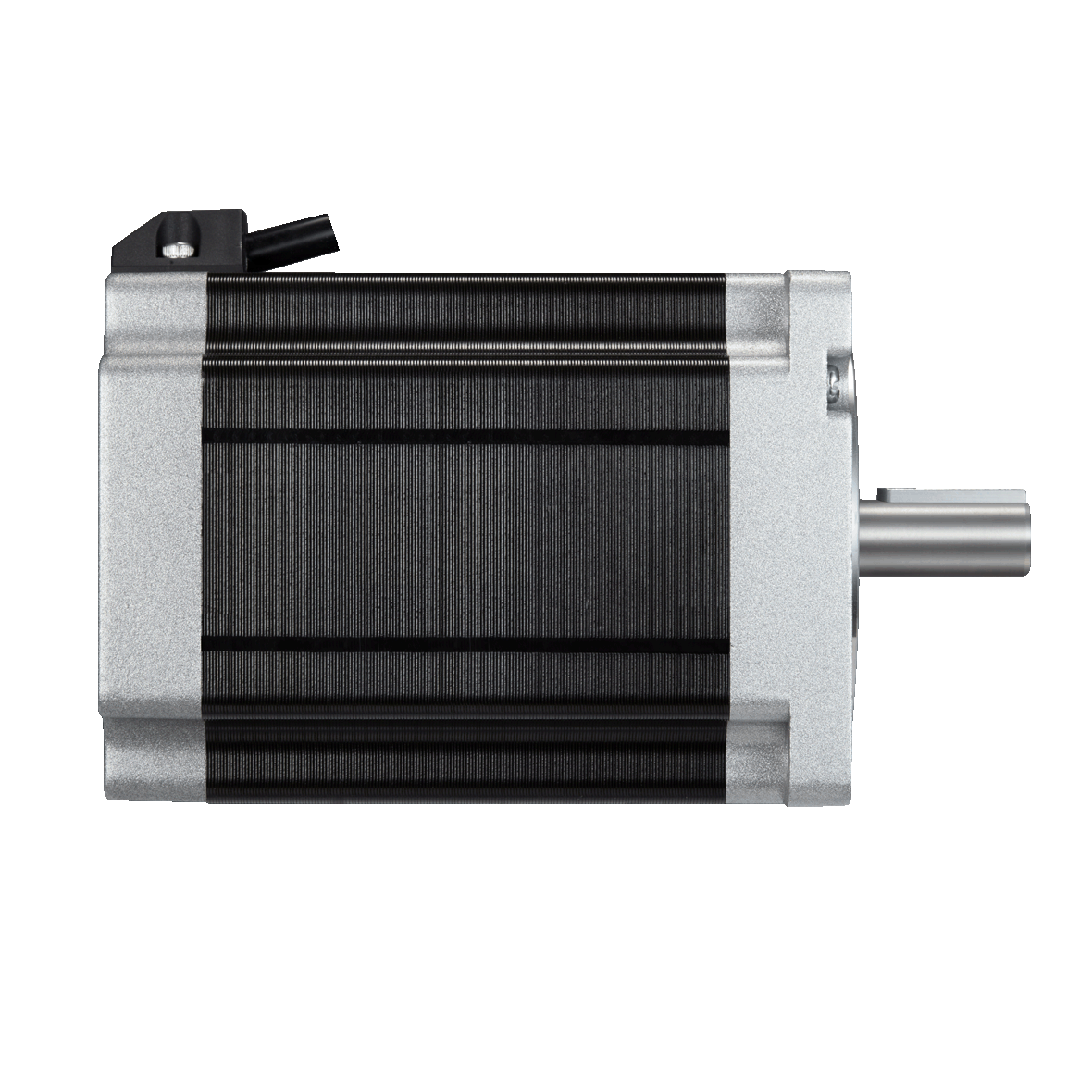

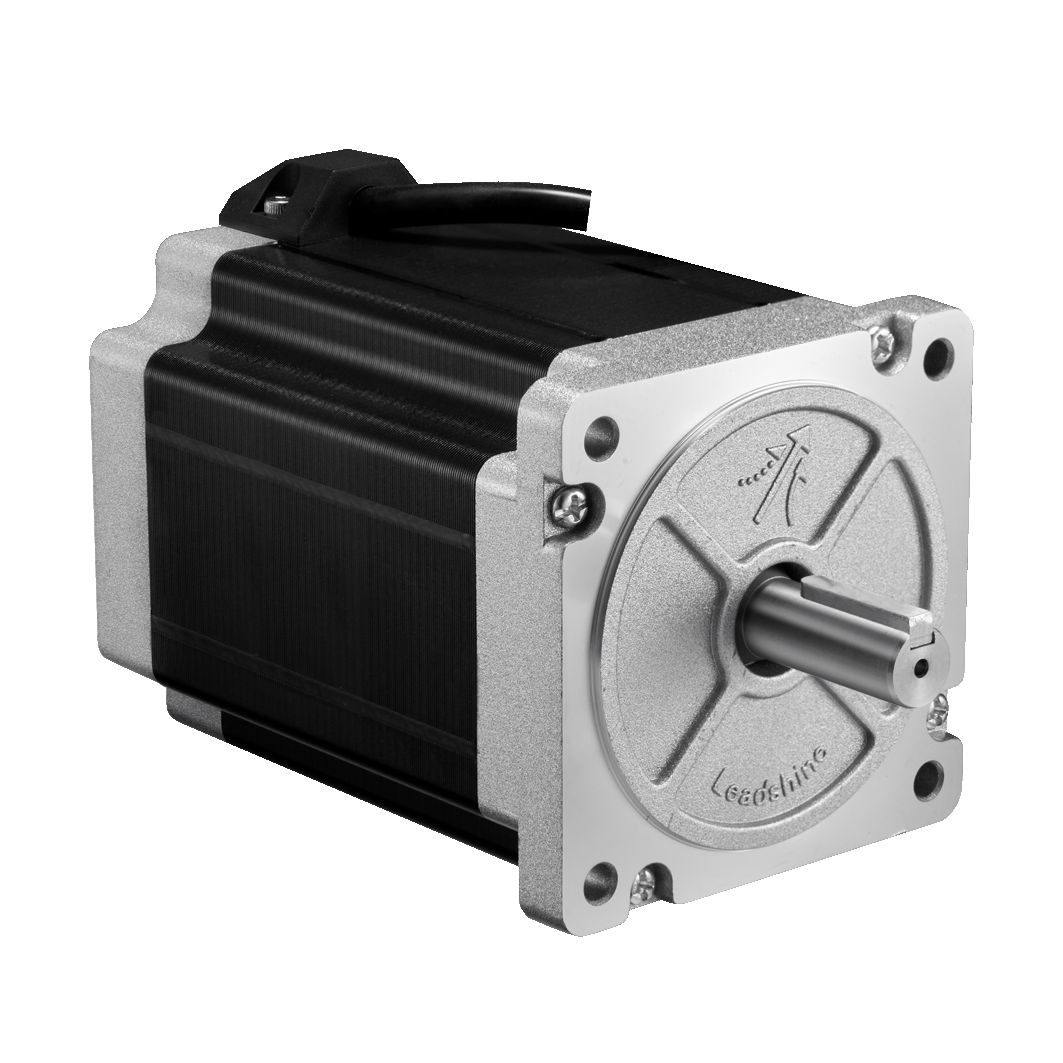

Built with premium quality materials including bearings and shaft. The 86CM45-0-I14 NEMA 34 can move the attached load at high precision with very low motor heating and vibration.
- 2 phase, NEMA 34 frame size
- 80 mm (3.15 inch) long
- 6 A phase current
- 4.5 N.m (638 oz-in) holding torque
- 14 mm (0.55 inch) shaft size
- Built with high quality materials including bearings and shaft made by Japanese manufacturers
- High precision, low motor heating, and low vibration
86CM45-0-I14 NEMA 34 2D Drawing Download: 86CM45-0-I14
86CM45-0-I14 NEMA 34 3D Drawing (LeadShine website): Click Here
