Description

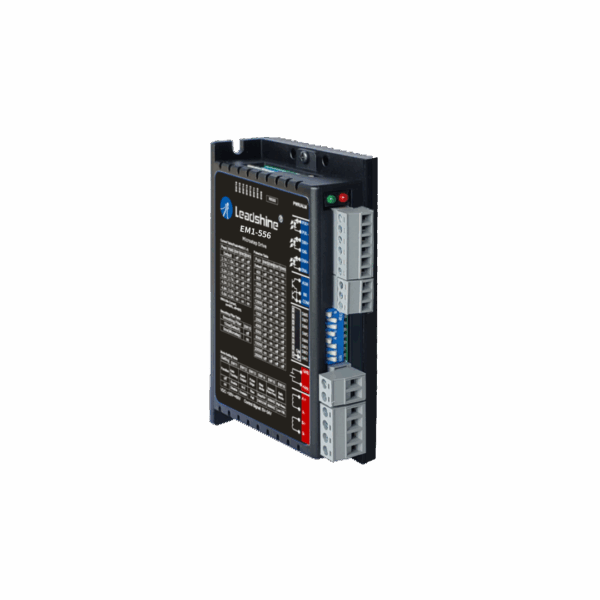

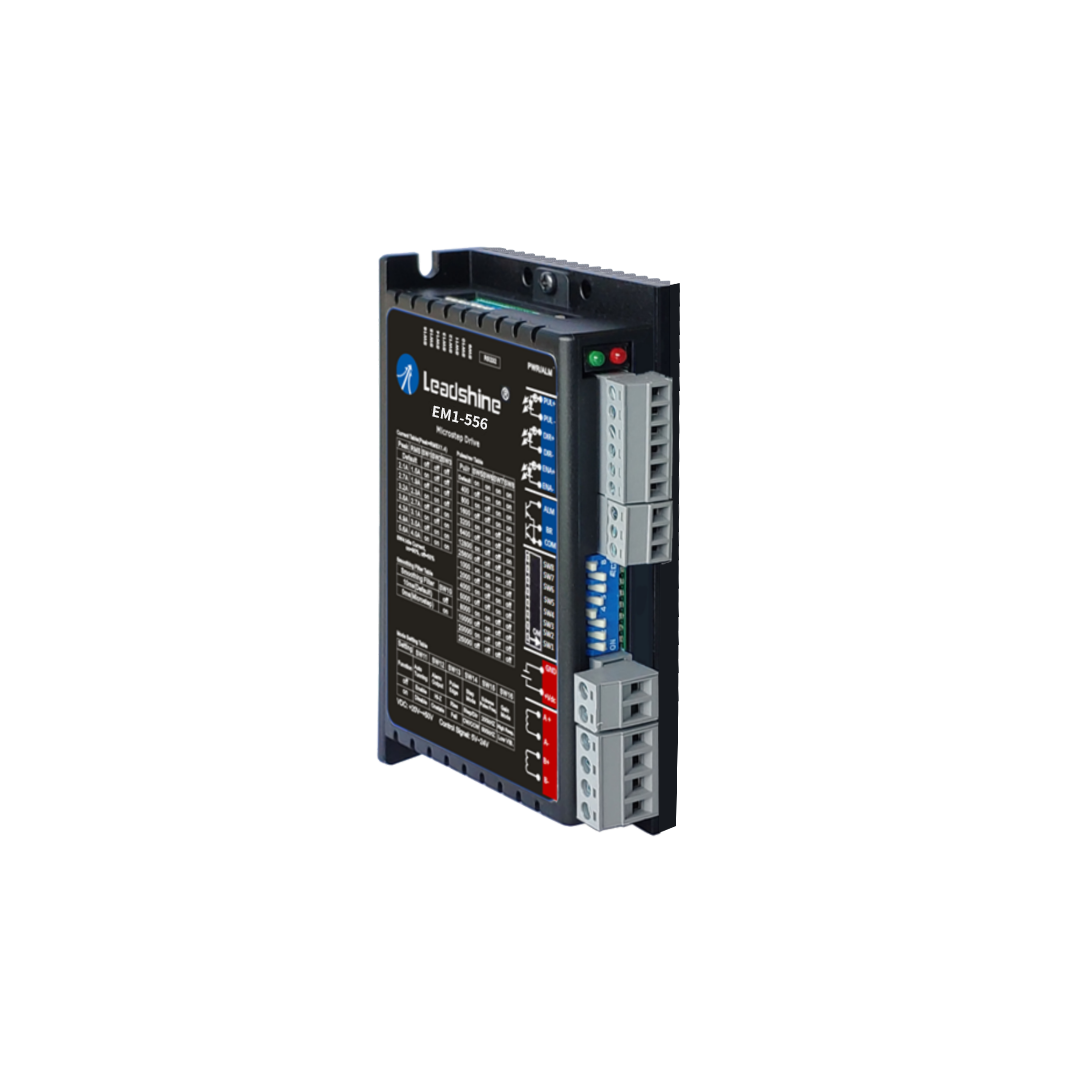

EM1 series is a new generation of general-purpose pulsed two-phase stepper drive from Leadshine. The driver adopts the latest open-loop stepper drive control algorithm.
The new EM1 digital series is based on the classic DM series, Function have been optimized, performance has been improved.
- The input signal supports 5~24V
- Voltage input range: 20~50 VDC
- Maximum current: 5.6A, resolution: 0.1A
- 3 input signals: pulse, direction, enable
- 2 output signals: alarm, brake
- 8 levels of current adjustable, 16 levels of subdivision adjustable
- Extended function DIP supports pulse mode, gain mode.
| Model | EM1-556 |
| Series | EM |
| Command Source | PUL&DIR, CW&CCW |
| Operation Voltage (VDC) | 20-50 |
| Output Current (A, Peak) | 5.6 |
| Input Frequency (KHz, Max.) | 200kHz, 500kHz Configurable |
| Logical Voltage (VDC) | 5~24Vdc compatible |
| # of Inputs | 3 |
| # of Outputs | 2 |
| Characteristics | Standard |
User manual: EM1-556

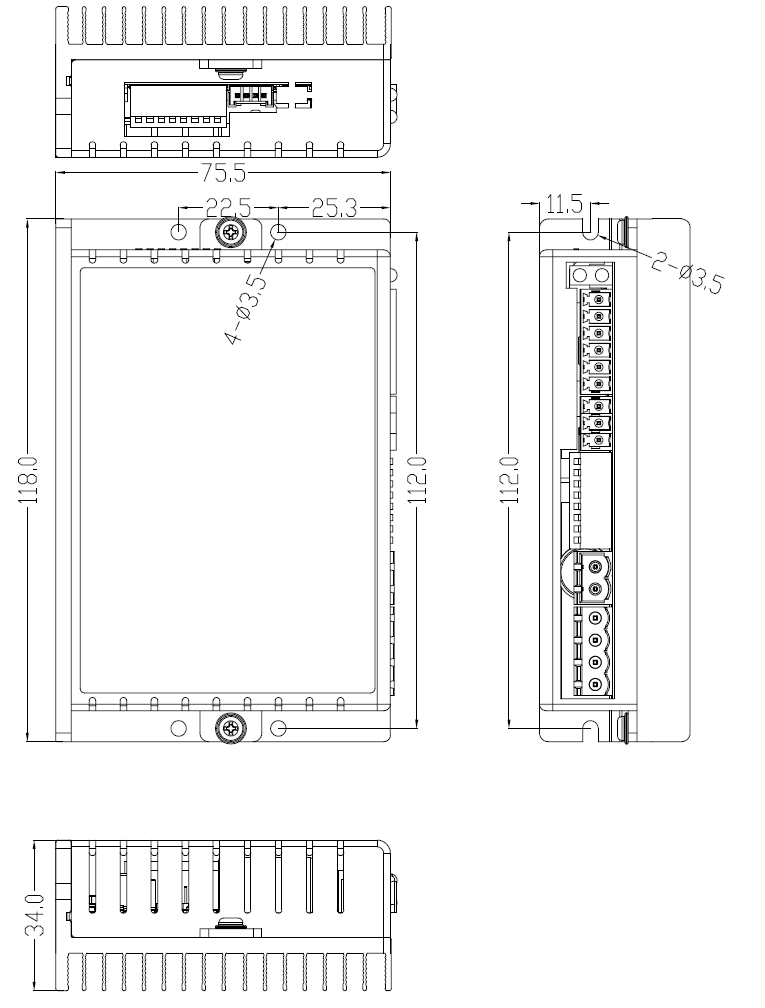

2D drawing: EM1-556 2D
3D CAD: Leadshine website download
