2000W AC Servo Driver (STO) – EL8-EC2000F

$1,231

1 in stock (can be backordered)

SKU: EL8-EC2000F Categories: ,

Description

EL8-EC Series AC Servo Product is a whole new high-end AC servo drivers. The AC servo drivers have a power rating range of 450W up to 2000W. The EL8-EC series AC servo drivers supports EtherCAT communication protocol.

Features include; dynamic braking and internal holding brake which comes with internal regenerative resistor. The EL8-EC drivers also come with Safe Torque Off (STO) function, Gantry synchronization, Full Closed Loop functionalities and much more.

  • Servo drives with 2000W power rating
  • User-configurable I/Os: 8 DI, 3 DO, 2 AI, 2AO and 2 high speed touch probe inputs
  • Equipped with internal regenerative resistor
  • Position, velocity and torque loop control
  • New servo functions including Zero Tracking Control (ZTC), Position comparison, Black box, 1-click/1-parameter easy tunings
  • Safety functions such as Safe Torque Off (STO) with SIL3 grading
  • Matching motors with power rating from 50W to 2000W
  • Motors with 23-bit magnetic/optical encoders
  • Optional holding brake
Model EL8-EC2000F
Input Voltage 1ph/3ph   220VAC
Rated Power   (W) 2000
Rated Current (Arms) 12
Peak Current (Arms) 36
Command   Source EtherCAT
# of Inputs 8
# of Outputs 3

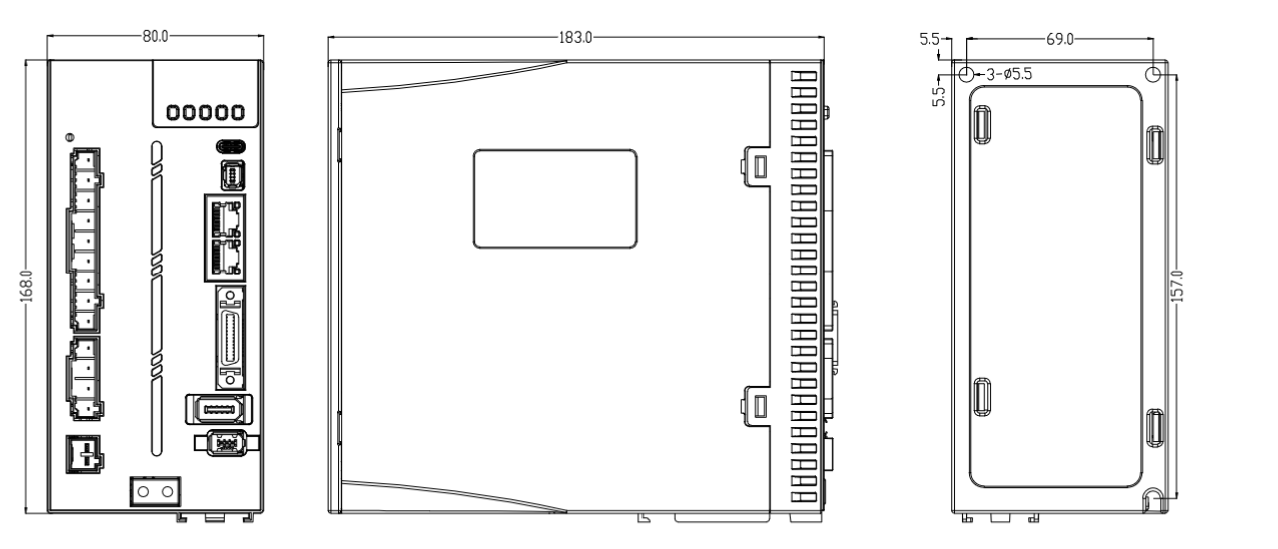

2D Drawing (PDF): EL8-EC2000F 2D Drawing

3D drawing download (LeadShine Website): Click here

Manual Download (LeadShine Website): Click here

Software Download (LeadShine Website): Click here

EL8 Series Certification: CE EMC Certification – EL8 Series (1500_2000W)

EL8 Series Certification: EL8 Series Safe Torque Off (STO) SIL3 Certification

Additional information

Weight 1 kg
Dimensions 210 × 290 × 110 mm
